6
TOUGHSwitch
™
PoE CARRIER Quick Start Guide

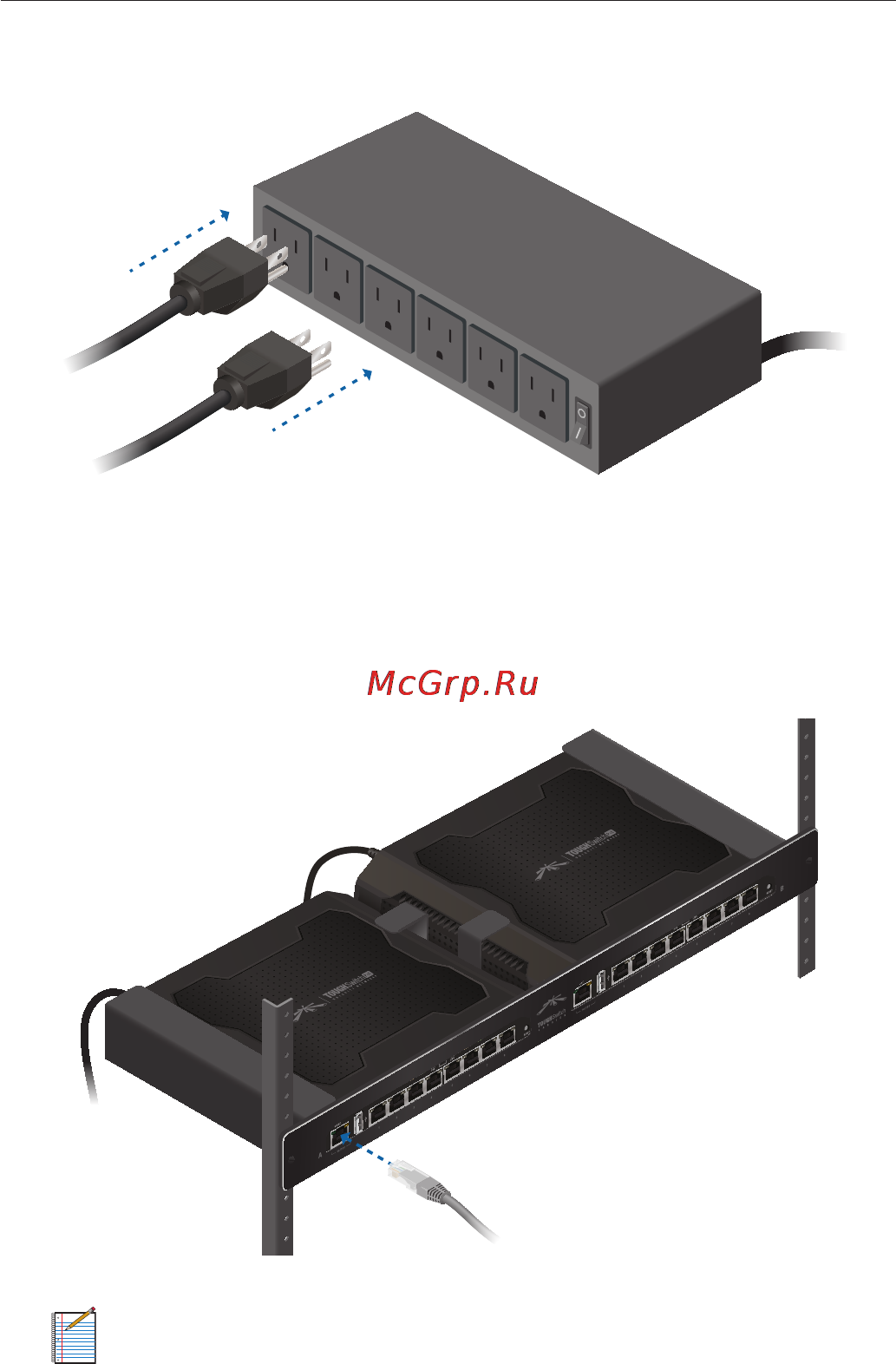

4. Connect the other end of each Power Cord to a power outlet.
Connecting Ethernet
1. Connect an Ethernet cable from your computer or host system
to the Management port of TOUGHSwitch A.
Note: By default, you can configure the TOUGHSwitch
via any port; however, we recommend the Management
port. (Access to the Configuration Interface can be
limited to the Management port only. You can configure
this setting on the Device tab.)
