4
TOUGHSwitch
™
PoE CARRIER Quick Start Guide
Installation Requirements
• Phillips and flathead screwdrivers
• Standard-sized, 19" wide rack with a minimum of 1U height
available
• For indoor applications, use Category 5 (or above) UTP cabling
approved for indoor use.
• For outdoor applications, shielded Category 5 (or above) cabling
should be used for all wired Ethernet connections and should
be grounded through the AC ground of the power supply.
We recommend that you protect your outdoor networks from
the most brutal environments and devastating ESD attacks
with industrial-grade shielded Ethernet cable from Ubiquiti
Networks
™
. For more details, visit: www.ubnt.com/toughcable
Note: Although the cabling can be located outdoors,
the TOUGHSwitch PoE CARRIER itself should be housed
inside a protective enclosure.
Hardware Installation

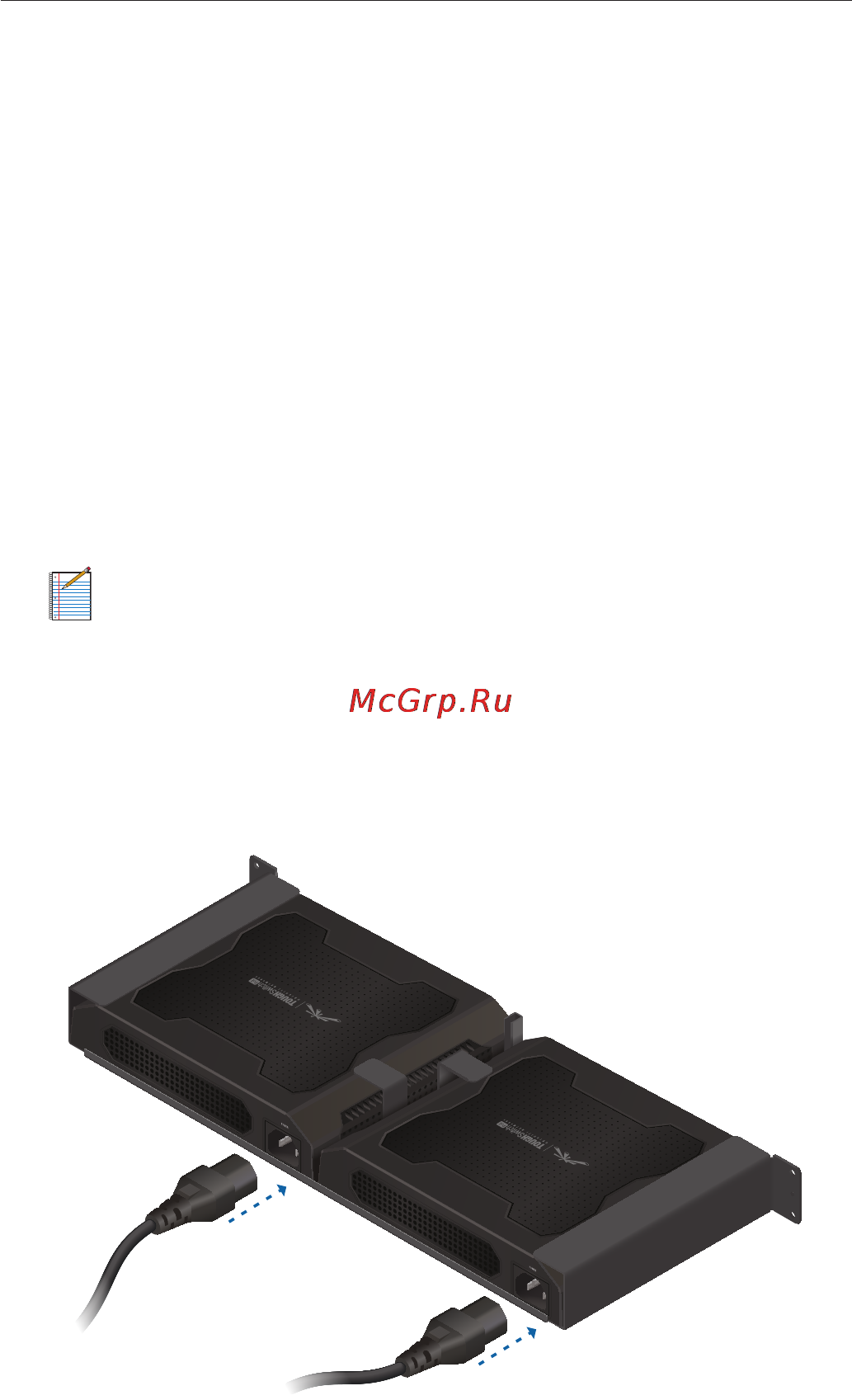

1. Connect the Power Cord to the Power port of each
TOUGHSwitch.
