Timberk SWH RS7 40 V [13/28] Troubleshooting
Содержание
- Timberk 1
- Водонагреватель heater 1
- Модели models 1
- Накопительный storage water 1
- Руководство по эксплуатации instruction manual 1
- Iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiim llllllllllllllllll 3
- Dimensional features 4
- Dimensional features of ms2 series water heater in mm according to fig are given below in table 2 4
- Iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii 4
- Important 4
- Table 1 4
- Table 2 4
- Technical characteristics 4
- Technical characteristics of the water heater you purchased as of the date of manufacture correspond to data specified in the table technical characteristics and scope of delivery can be revised without any prior notice 4
- Technical characteristics of water heaters are given below in table 1 4
- Dimensional features of rs2 series water heater in mm according to fig are given below in table 4 5
- Dimensional features of rs7 series water heater in mm according to fig are given below in table 5 5
- Dimensional features of rsi series water heater in mm according to fig are given below in table 3 5
- Iiiiiiiiiiiiiiiiiii 5
- Left composite protective cover 2 external case 3 inner tank 4 heating element 5 control panel 6 right composite protective cover 7 power cable with gfci 8 urethane foam heat insulation layer 9 inlet nozzle 10 hot water outlet nozzle 11 emergency water discharge nozzle 12 protective magnesium anode 5
- Table 3 5
- Table 4 5
- Table 5 5
- Water heater description rs2 series fig 5
- Ihiiiiiiiii 7
- Iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiim 8
- Iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiin 11
- Llllllllllllllllll 11
- Bear in mind to check serviceability of the relief valve every 14 days inspection method 13
- English 13
- If necessary wipe external surfaces of the heater by a damp cloth with soap 13
- If these actions had no positive result or the thermal switch turns off repeatedly during a short period of time then you should de energize the water heater cut off water supply and contact your local timberk authorized service center for a consult or repair of the appliance 13
- If water doesn t flow then the valve is damaged in this case you must not use the heater and it is recommended to call for a service technician 13
- Iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiimiiiiiiiiiiiiiiiiimiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiim lllllllllllllllllll 13
- Important 13
- Never drain water if its temperature is over 50 c since it may result in burns 13
- Possible malfunctions and troubleshooting methods 13
- To drain water from the internal tank properly you need to use the drain hole only for rs2 ms2 line it is necessary to unscrew a plug covering the drain hole water can also be drained through a composite relief valve fig 14 unscrew the composite relief valve drain knob screw and set the drain knob to the upper position at that hot water tap must be open and cold water supply valve must be closed 13
- Troubleshooting 13
- Turn the discharge lever to the left up until you feel the change of thread then water must start flowing from the valve s hole after checking the water flow return the leverto its initial position 13
- Wiring diagram 13
- Внимание 17
- На дату производства технические характеристики 17
- Приобретенного вами водонагревателя соответствуют данным указанным в таблице производитель имеет право изменить технические характеристики прибора и его комплектацию без предварительного уведомления об этом 17
- Размерные характеристики 17
- Размерные характеристики водонагревателя серии м52 в мм согласно рис 1 приведены в таблице 2 17
- Русский 17
- Таблица 1 17
- Таблица 2 17
- Технические характеристики 17
- Технические характеристики водонагревателей приведены в таблице 1 17
- Lllllllllllllllllll 21
- Lllllllllllllllllll 23
- Бнимание 26
- Возможные неисправноси и методы их устранения 26
- Если вода не потечет то клапан испорчен в этом случае нельзя пользоваться нагревателем и рекомендуется вызвать 26
- Л примечание 26
- Наружные поверхности нагревателя по мере необходимости протирать влажной тряпочкой с мылом 26
- Никогда не сливайте воду если её температура выше 50 с т к это может привести к ожогам 26
- Помните о контрольных проверках исправности действия предохранительного клапана каждые 14 дней способ проверки перевести ручку слива в верхнее положение до ощущения перехода резьбы и тогда из отверстия клапана должна потечь вода после проверки вытекания воды верните ручку в предыдущее 26
- Потребителей производитель не несет ответственности за изменение 26
- Производитель имеет право вносить в устройство прибора любые изменения улучшающие его технические и иные характеристики данные изменения могут быть внесены без предупреждения и предварительного уведомления 26
- Сервисного мастера 26
- Устранение неисправностей 26
- Чтобы правильно слить воду из внутреннего бака надо воспользоваться сливным отверстием только для серии р52 для этого открутите заглушку закрывающую сливное отверстие такжеводу можно слить через комбинированный предохранительный клапан рис 6 для этого открутите винт ручки слива комбинированного предохранительного клапана и переведите ручку слива в верхнее положение при это кран выхода горячей воды должен быть открыт а кран подачи холодной воды в водонагреватель должен быть перекрыт 26
- Электрическая принципиальная схема 26
- Электросхемы изделия которое может быть выполнено без уведомления потребителя 26
- Timberk 28
Похожие устройства
- Drazice OKCV 200 Инструкция по эксплуатации
- HP LaserJet Pro M1536dnf CE538A.ACB Инструкция по эксплуатации
- Timberk SWH RS7 50 V Инструкция по эксплуатации
- Drazice OKC 160 NTR/BP Инструкция по эксплуатации
- Asus RT-N12 C1 Инструкция по эксплуатации
- Zota РВУ Инструкция по эксплуатации
- Drazice OKC 200 NTR/BP Инструкция по эксплуатации
- Logitech M325 Coral Fan Инструкция по эксплуатации
- Zota ФРУ Инструкция по эксплуатации
- Logitech M325 Flor.ForBl Инструкция по эксплуатации
- Drazice OKC 250 NTR/BP Инструкция по эксплуатации
- Zota РТ-14K Инструкция по эксплуатации
- Logitech M325 Panda Candy Инструкция по эксплуатации
- Drazice OKC 300 NTR/BP Инструкция по эксплуатации
- Unitherm UNIHEAT UHW 24T Инструкция по эксплуатации
- Drazice OKC 200 NTRR/BP Инструкция по эксплуатации
- Logitech M325 Wildlife Инструкция по эксплуатации
- Unitherm US 200 B Инструкция по эксплуатации
- Drazice OKC 250 NTRR/BP Инструкция по эксплуатации
- Logitech M325Trop.Feat. Инструкция по эксплуатации

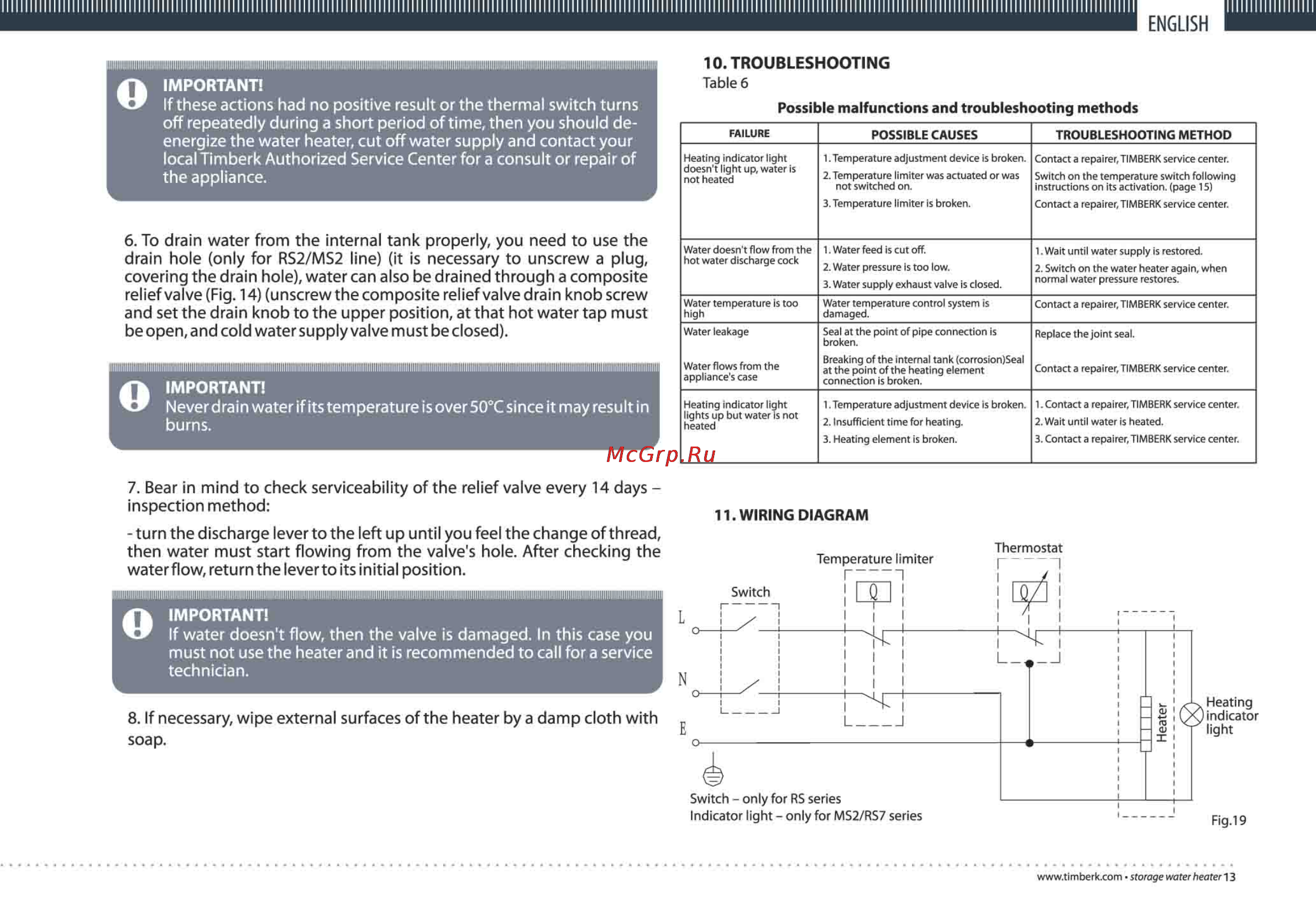

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiimiiiiiiiiiiiiiiiiimiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiim lllllllllllllllllll ENGLISH 10 TROUBLESHOOTING O IMPORTANT If these actions had no positive result or the thermal switch turns off repeatedly during a short period of time then you should de energize the water heater cut off water supply and contact your local Timberk Authorized Service Center for a consult or repair of the appliance 6 To drain water from the internal tank properly you need to use the drain hole only for RS2 MS2 line it is necessary to unscrew a plug covering the drain hole water can also be drained through a composite relief valve Fig 14 unscrew the composite relief valve drain knob screw and set the drain knob to the upper position at that hot water tap must be open and cold water supply valve must be closed O IMPORTANT Never drain water if its temperature is over 50 C since it may result in burns 7 Bear in mind to check serviceability of the relief valve every 14 days inspection method Table 6 Possible malfunctions and troubleshooting methods FAILURE Heating indicator light doesn t light up water is not heated Water doesn t flow from the hot water discharge cock POSSIBLE CAUSES TROUBLESHOOTING METHOD 1 Temperature adjustment device is broken Contact a repairer TIMBERK service center 2 Temperature limiter was actuated or was not switched on Switch on the temperature switch following instructions on its activation page 15 3 Temperature limiter is broken Contact a repairer TIMBERK service center 1 Water feed is cut off 1 Wait until water supply is restored 2 Water pressure is too low 2 Switch on the water heater again when normal water pressure restores 3 Water supply exhaust valve is closed Water temperature is too high Water temperature control system is damaged Contact a repairer TIMBERK service center Water leakage Seal at the point of pipe connection is broken Replace the joint seal Water flows from the appliance s case Breaking of the internal tank corrosion Seal at the point of the heating element connection is broken Contact a repairer TIMBERK service center Heating indicator light lights up but water Is not heated 1 Temperature adjustment device is broken 1 Contact a repairer TIMBERK service center 2 Insufficient time for heating 2 Wait until water is heated 3 Heating element is broken 3 Contact a repairer TIMBERK service center 11 WIRING DIAGRAM turn the discharge lever to the left up until you feel the change of thread then water must start flowing from the valve s hole After checking the water flow return the leverto its initial position O IMPORTANT If water doesn t flow then the valve is damaged In this case you must not use the heater and it is recommended to call for a service technician 8 If necessary wipe external surfaces of the heater by a damp cloth with soap www timberk com storage water heater 13
