Operation > 114
2 Doc. Type Doc. Type Text, Text&Photo,
Allows you to specify the type of images
on the document.
Removal for
Background &
Show-
Through
(sTHR)
Auto, OFF, 1(Low),
2, 3, 4, 5(High),
sTHR
Allows you to block out the colour
background of the image (assuming
document has a colour background) -
such that the background colour is not
printed.
Use Show-Through when scanning
documents that are printed on both sides
(for example newspaper). This function
removes the reverse image and
characters.
3 Density -3, -2, -1, 0, +1, +2, +3 Adjust density
Darker: Enhance image sharpness and
colour.
Lighter: Reduce hue and colour.
4 Resolution 75dpi, 100dpi, 150dpi, 200dpi,
300dpi, 400dpi, 600dpi
Allows you to select the appropriate
resolution.
Remember the higher the resolution the
bigger the file size!
5Scan Size Auto, A3, B4, A4 SEF, A4 LEF, B5
SEF, B5 LEF, A5 SEF, A5 LEF
Letter SEF, Letter LEF, Tabloid, Legal
14, H.LTR LEF,
Allows you to select the scan size.
6File NameUser defined Use the on-screen keyboard to enter an
appropriate file name.

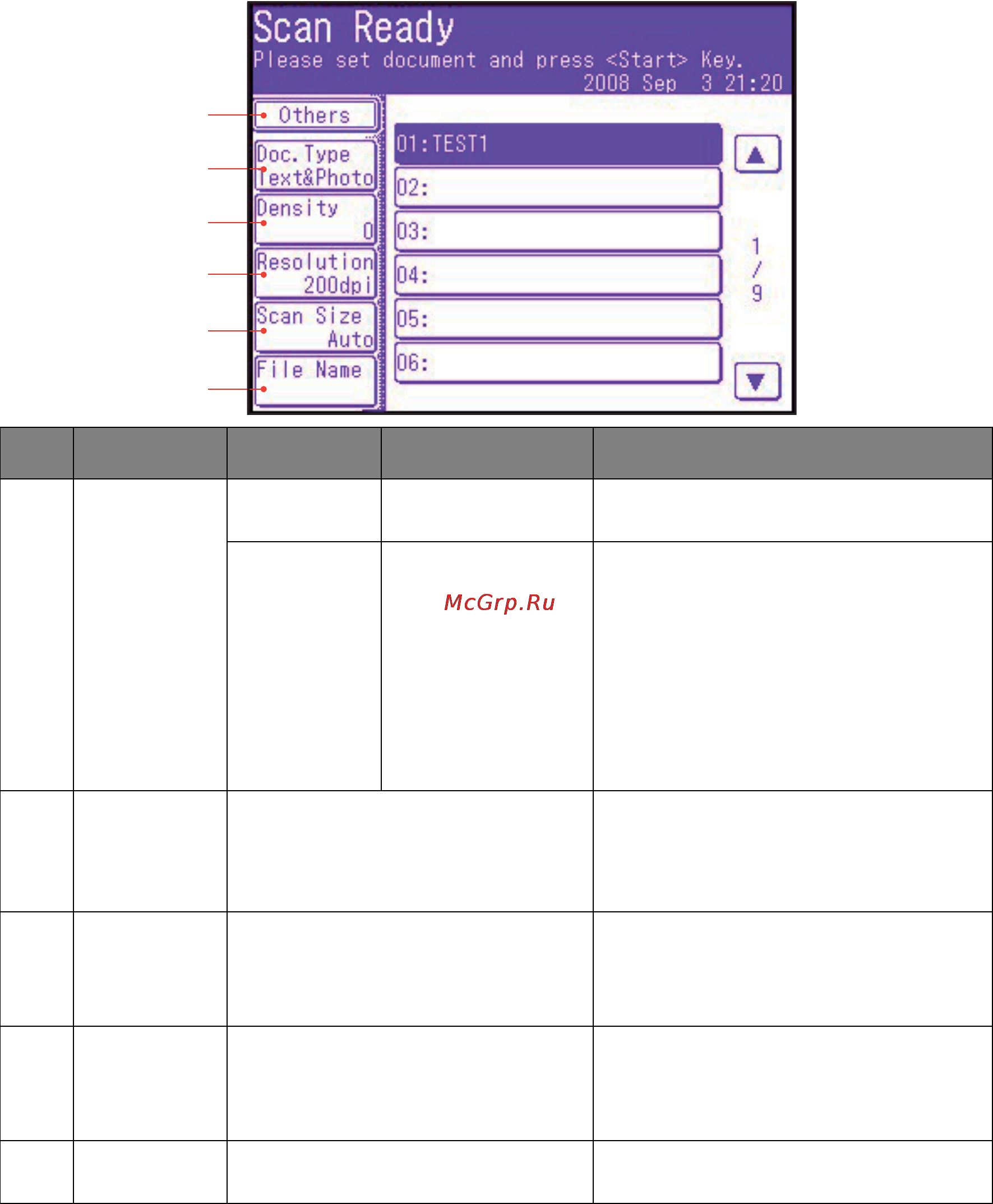

NO. FEATURE OPTION DESCRIPTION
