ML1120/ML1190 eco User’s Guide – Paper handling > 29

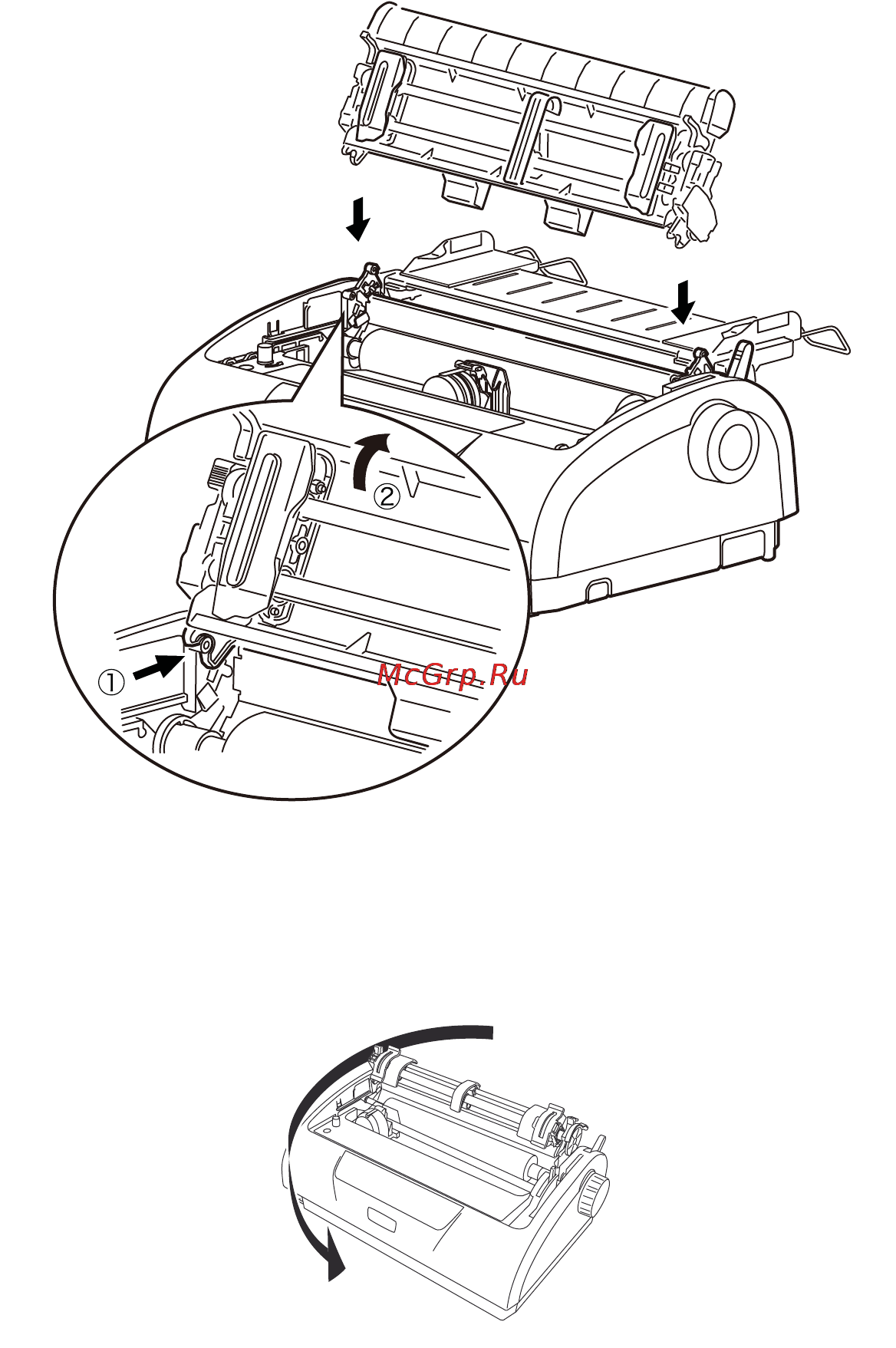

10. Position the tractor assembly as shown. The gear
assembly is on the left.
11. Locate the arms over the pivot points and rotate the unit
backwards until the clamps close over the back pins.
12. Turn the printer so that the front of the printer is facing
you.
