ML1120/ML1190 eco User’s Guide – Paper handling > 33

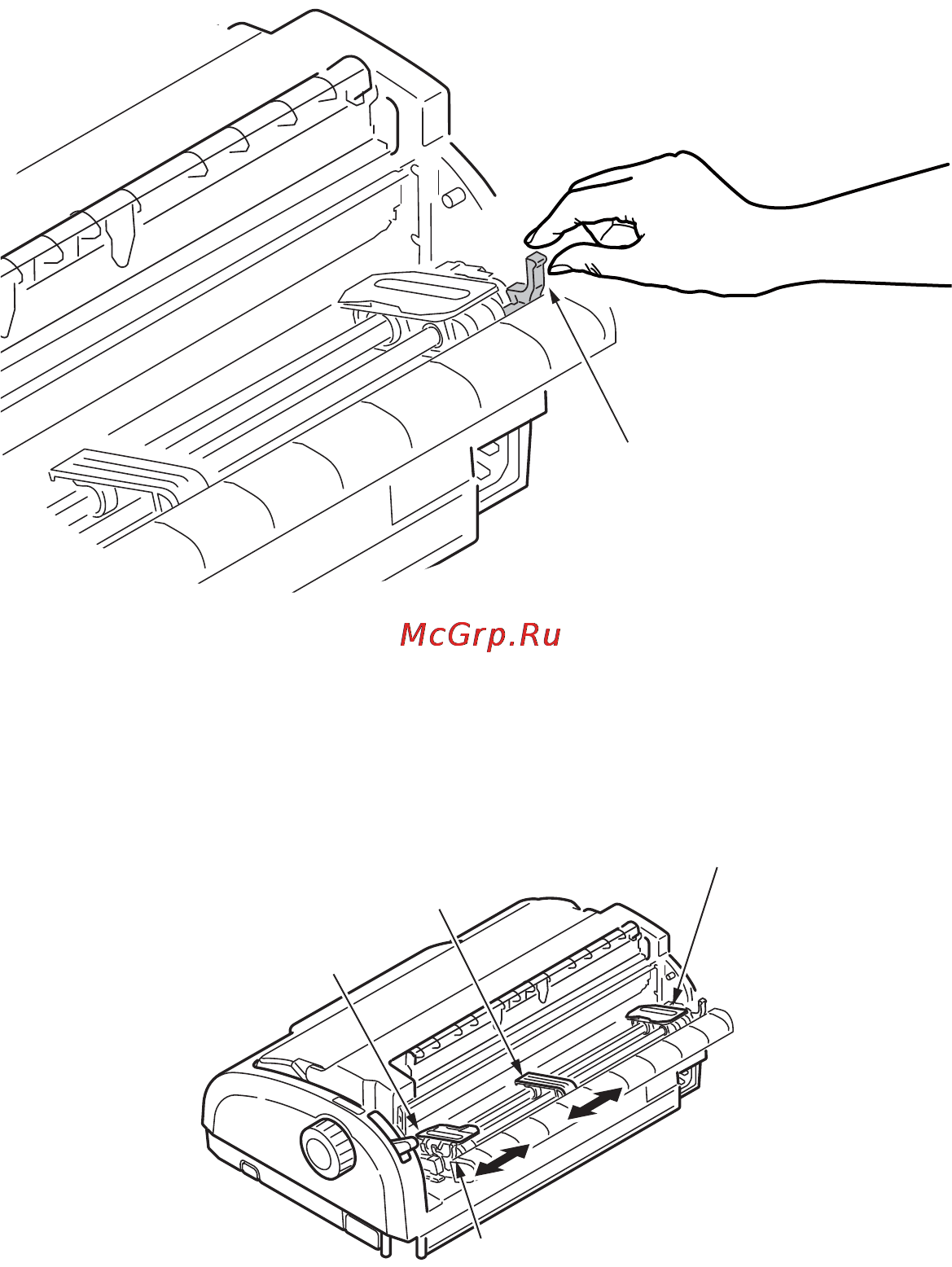

then press the locking lever (3) back down to lock the Pin
Tractor in the desired position.
6. Lift the locking lever (1) of the right Pin Tractor and slide
the Pin Tractor to the required position (2) to
accommodate the width of the continuous forms to be
used. Move the rear paper guide (3) to midway between
the left and right Pin Tractors.
1
1
2
3
4
