■ SET mode programming
The SET mode is used to change the status of 17 transceiver
functions
†
: Beep tone function, Weather alert function
†
, Prior-
ity scan, Scan resume timer, Auto scan start function, Dual/
Tri-watch function, Monitor key action, Display backlight, LCD
contrast selection, Power save function, Scroll type selection,
Scroll speed selection, RX noise cancel function
†
, TX noise
cancel function
†
, RX bass boost function
†
, TX bass boost func-
tion
†
and the Automatic recording threshold level selection
†
.
D SET mode operation
q Turn OFF power.
w While holding down
[
]
, turn ON power to enter the
SET mode.
• The “BEEP” (Beep tone function setting) appears.
e Push
[
]
, or push
[ ]
and [Y]/[Z] to select the de-
sired item.
r Push [Y]/[Z] to select the desired option of the item.
t To exit the SET mode, push [16/C].

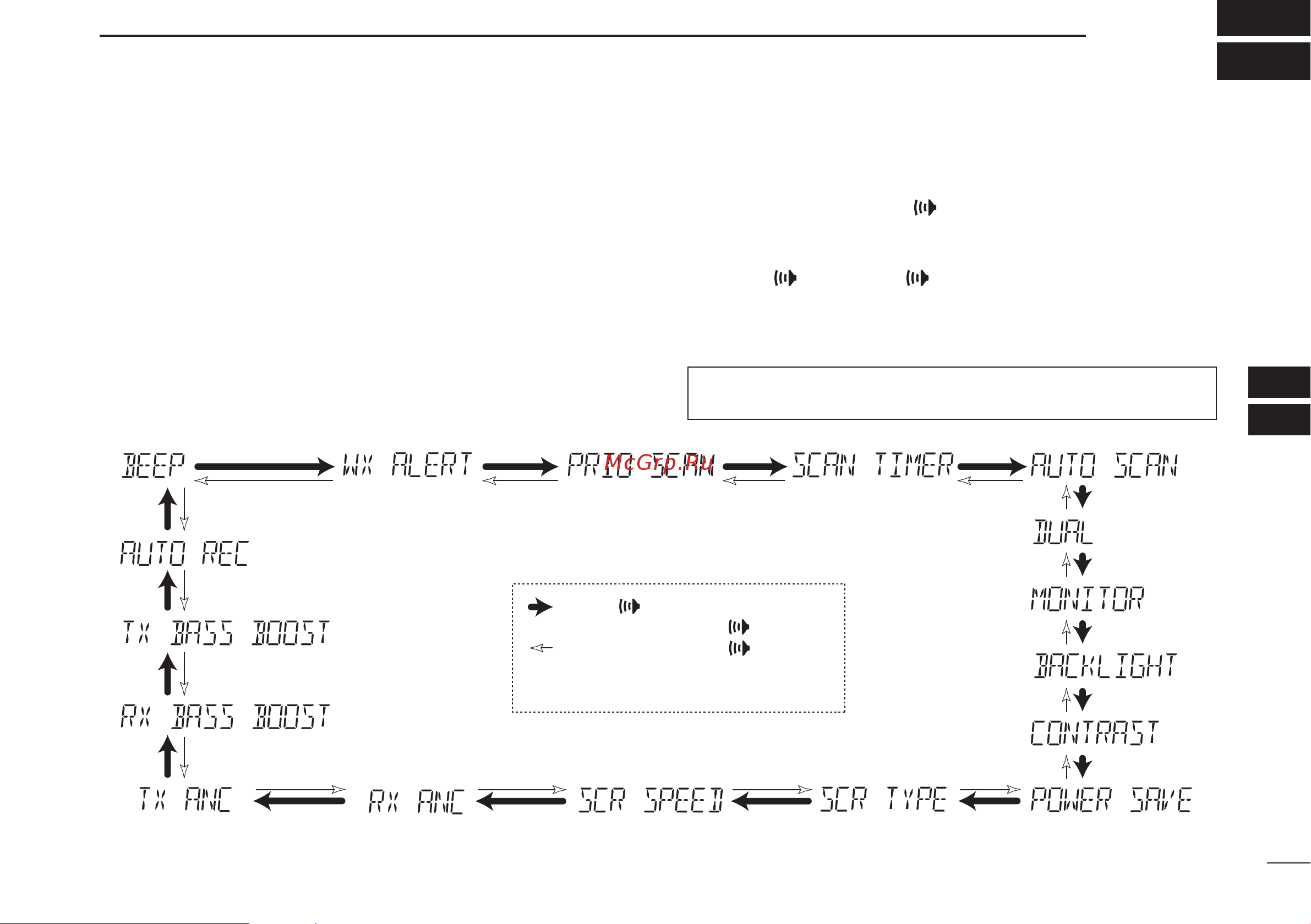

D SET MODE ITEMS
Beep tone function* Weather alert function
†
Priority scan
†
Scan resume timer
†
Auto scan start function
†
Dual/Tri-watch
function
†
Monitor key
action
Display
backlight
LCD contrast
selection
Automtic recording
threshold level selection
†
TX bass
boost function
†
RX bass
boost function
†
Power save function
Scroll type selectionScroll speed selectionRX noise cancel function
†
TX noise cancel function
†
: Push [ ], or
while holding down [ ], push [Y]
: While holding down [ ], push [Z]
*Starting item
†
Depending on versions
