52
9 CONNECTIONS AND MAINTENANCE
New2001

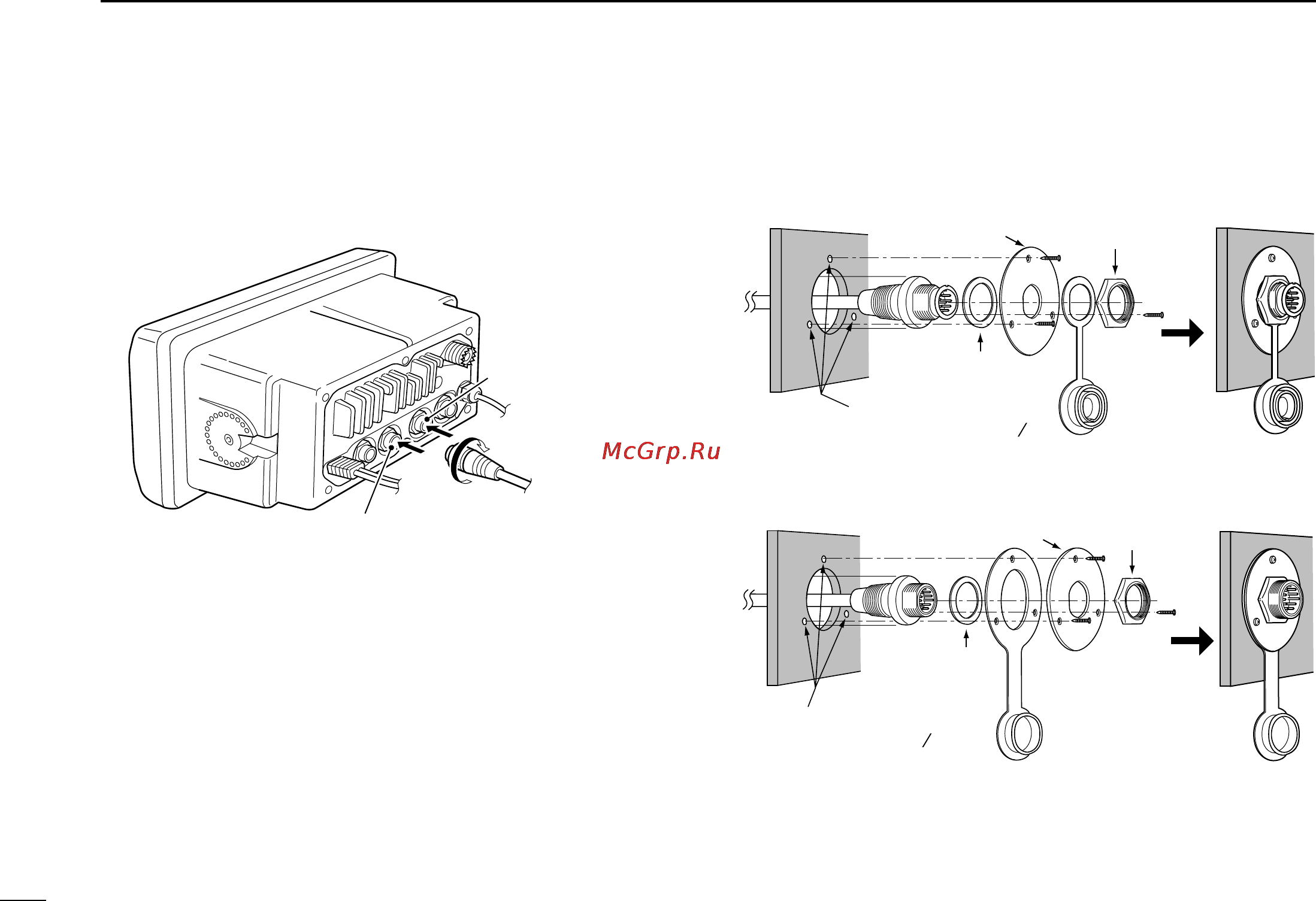

q Insert the supplied cable (or HM-157 without the cable)
into the [COMMAND MIC-1] or [COMMAND MIC-2] con-
nector and tighten the cable nut as shown below.
• Up to two COMMANDMIC™s can be connected simultaneously.
• The HM-157 and HM-162 can be used together.
w To use the supplied cable as a wall socket, perform the fol-
lowing steps.
e Using the mounting base as a template, carefully mark the
holes where the cable and three screws will be fastened.
r Drill holes at these marks.
t Install the mounting base using the supplied screws as
shown below.
• HM-157
• HM-162
Gasket
Cap
Mounting base
Nut
Screw holes
(approx. 2 (d) mm;
3
32″)
Completed
Gasket
Cap
Mounting base
Nut
Screw holes
(approx. 2 (d) mm;
3
32″)
Completed
[COMMAND MIC-1]
[COMMAND MIC-2]
IC-M604-1.qxd 06.7.20 5:55 PM Page 52 (1,1)
