INSTALLATION AND CONNECTIONS

D Using the optional MB-77

An optional MB-77

WALL MOUNT BRACKET

is available

for mounting the repeater to a ﬂat surface.

RWARNING: NEVER mount the repeater on the

MB-77 by yourself. At least two people are required

to mount the repeater since it weights approx. 12

kg (26 lb).

•Mount the MB-77 securely with the 12 supplied

screws (M6 × 30) to a surface which is more than 50

mm thick and can support more than 20 kg. The unit

must be mounted on a ﬂat hard surface only.

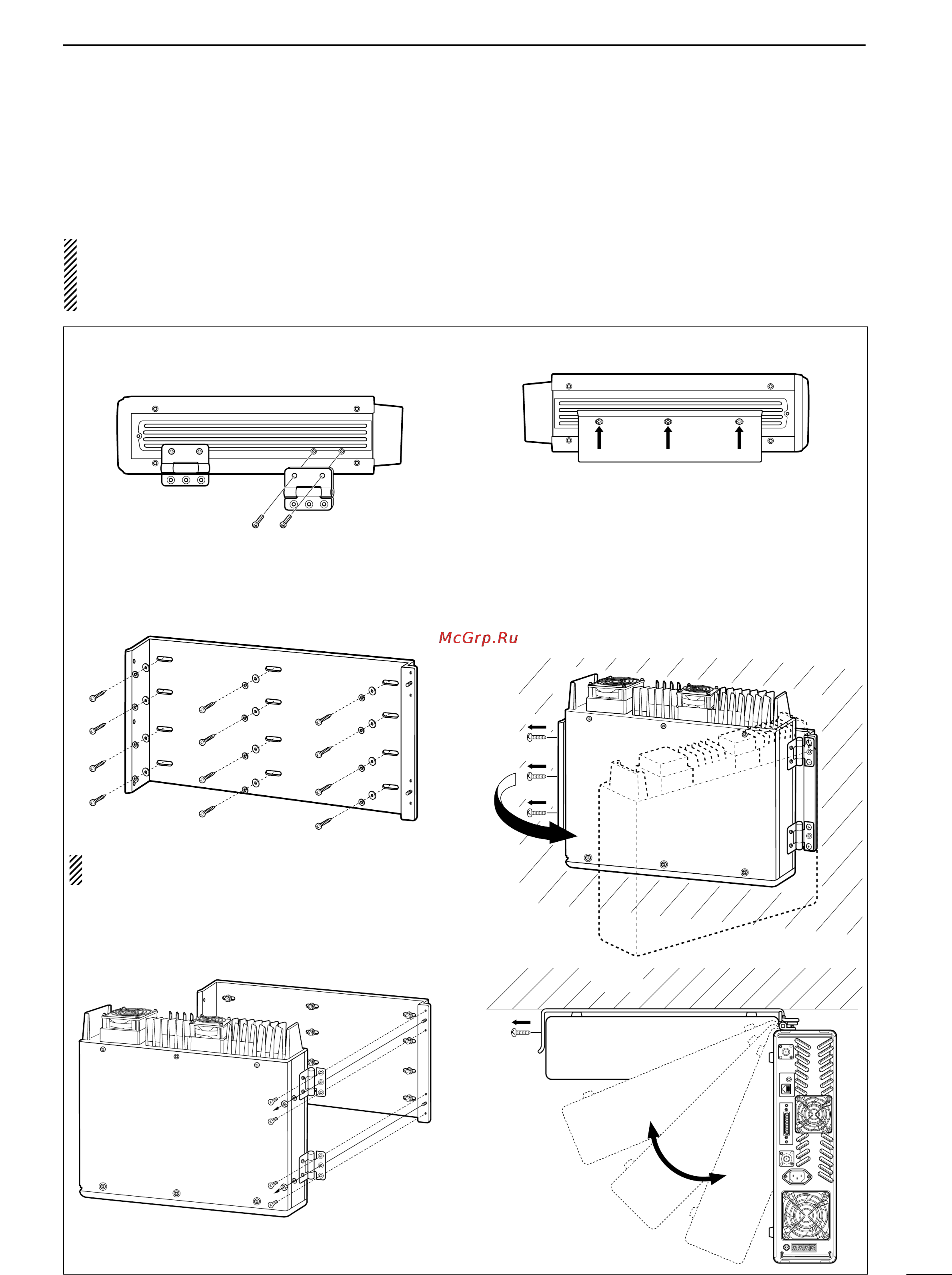

q Attach the hinges at right side of the repeater as

shown below.

w Tighten the 2 supplied screws (M5 × 12) for each.

e Put the MB-77 on the wall (or wherever you plan to

mount the repeater).

r Tighten the 12 supplied screws (M6 × 30) using ﬂat

washers and spring washers.

NOTE: Put this way to repeater’s front panel will be

bottom side.

t Attach the hinges with repeater to MB-77 and

tighten the 4 supplied screws (M5 × 10) and 2 nuts

(with spring washer).

y Tighten the 3 supplied screws (M5 × 12) to other

side.

• For setting up the repeater with MB-77

q Remove the 3 screws (M5 × 12) at left side of the

MB-77 when repeater’s front panel is bottom side.

w Pull the left side of the repeater.

e Remove the screws and open the bottom cover or

top cover of the repeater, then set the repeater up.

r Return the top or bottom cover of the repeater and

MB-77 to their original positions.

TOP VIEW

Wall
