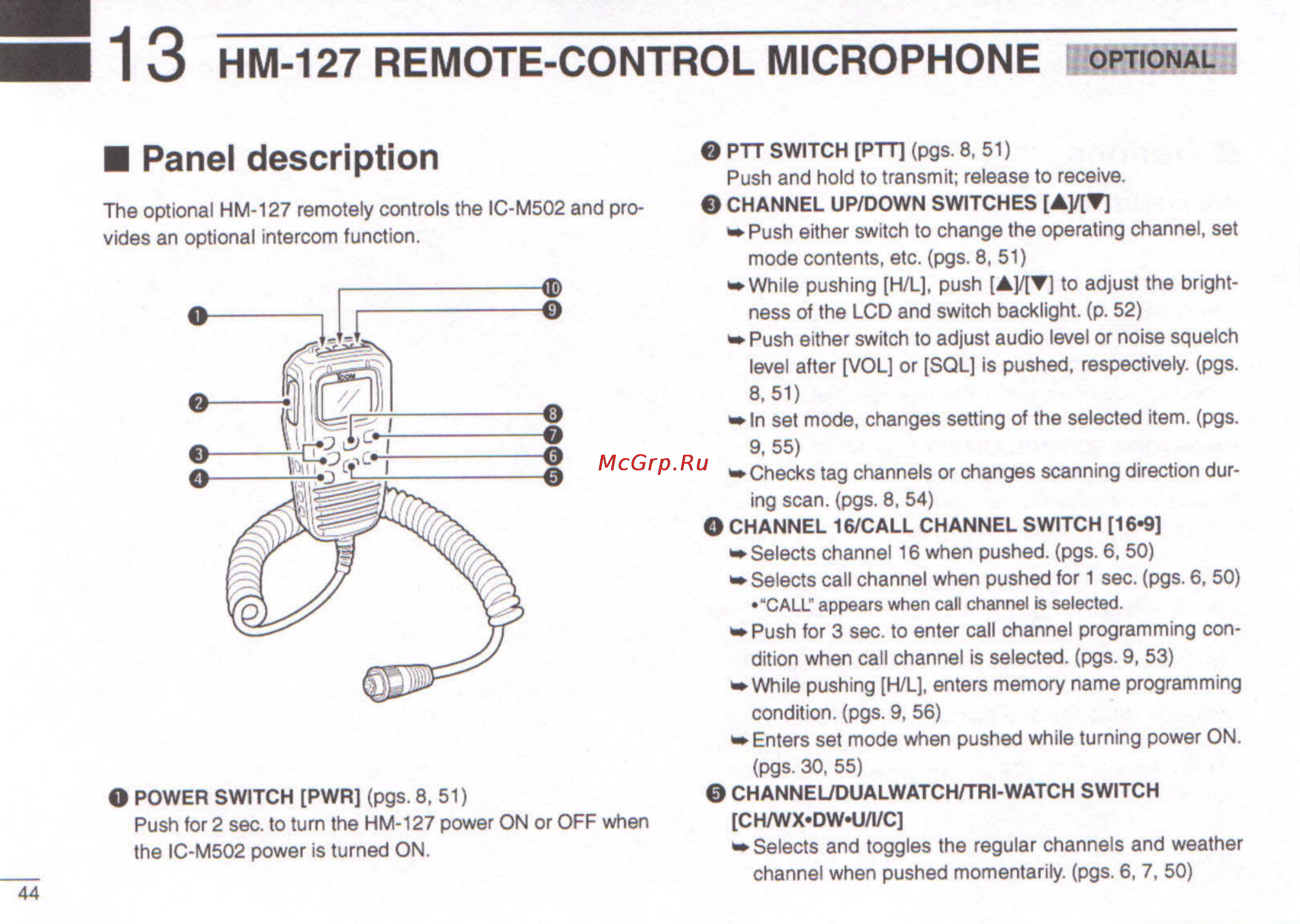

1 3 HM 127 REMOTE CONTROL MICROPHONE OPTIONAL Panel description 0 PTT SWITCH PTT pgs 8 51 The optional HM 127 remotely controls the IC M502 and pro 0 CHANNEL UP DOWN SWITCHES vides an optional intercom function Push and hold to transmit release to receive Push either switch to change the operating channel set mode contents etc pgs 8 51 While pushing H L push to adjust the bright ness of the LCD and switch backlight p 52 Push either switch to adjust audio level or noise squelch level after VOL or SQL is pushed respectively pgs 8 51 ln set mode changes setting of the selected item pgs 9 55 Checks tag channels or changes scanning direction dur ing scan pgs 8 54 O CHANNEL 16 CALL CHANNEL SWITCH 16 9 Selects channel 16 when pushed pgs 6 50 Selects call channel when pushed for 1 sec pgs 6 50 CALL appears when call channel is selected Push for 3 sec to enter call channel programming con dition when call channel is selected pgs 9 53 While pushing H L enters memory name programming condition pgs 9 56 Enters set mode when pushed while turning power ON O POWER SWITCH PWR pgs 8 51 pgs 30 55 0 CHANNEL DUALWATCH TRI WATCH SWITCH Push for 2 sec to turn the HM 127 power ON or OFF when CH WX DW U I C the IC M502 power is turned ON Selects and toggles the regular channels and weather channel when pushed momentarily pgs 6 7 50
