Icom HM-127 [5/15] Installation

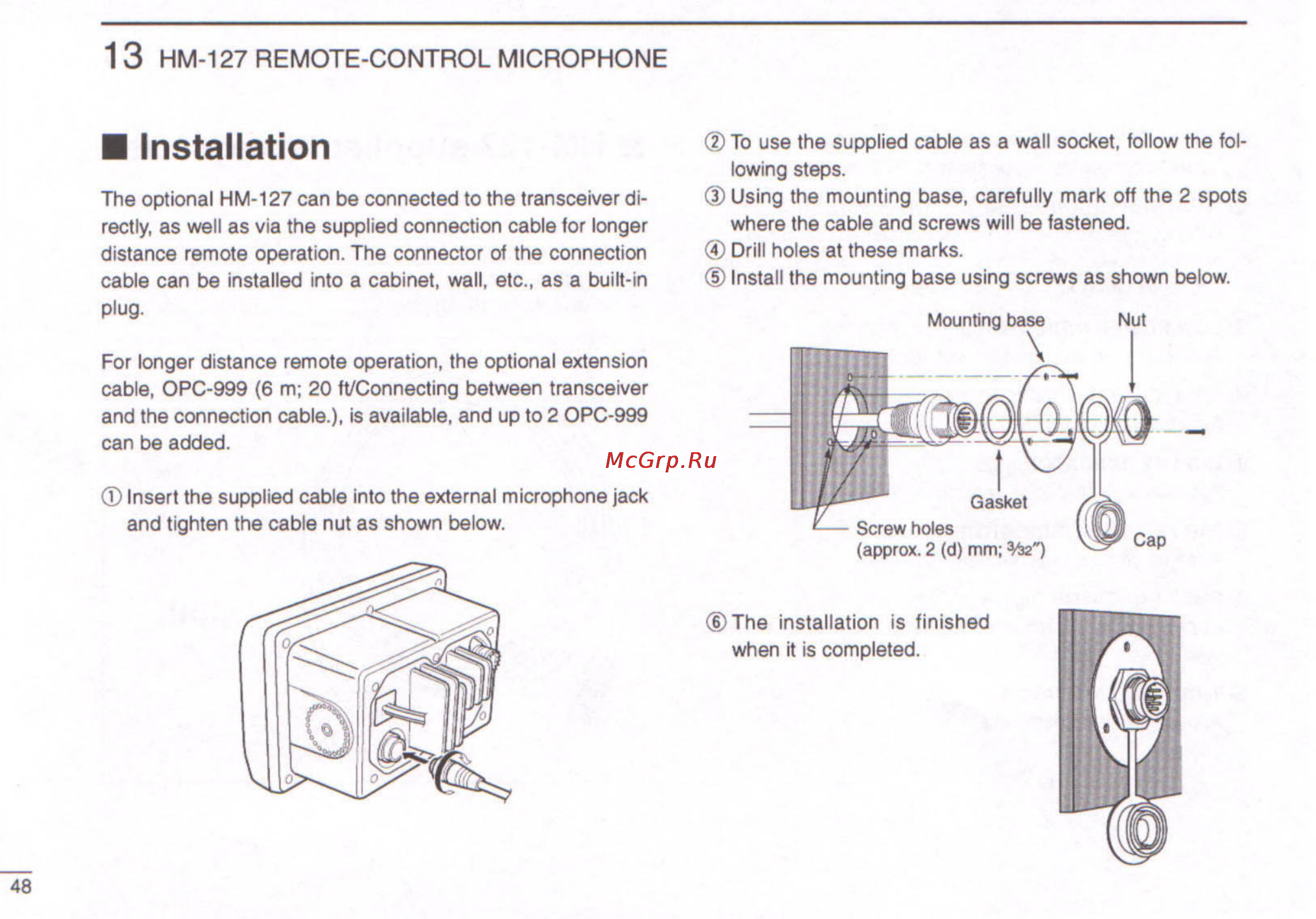

1 3 HM 127 REMOTE CONTROL MICROPHONE Installation To use the supplied cable as a wall socket follow the fol The optional HM 127 can be connected to the transceiver di Using the mounting base carefully mark off the 2 spots lowing steps rectly as well as via the supplied connection cable for longer distance remote operation The connector of the connection cable can be installed into a cabinet wall etc as a built in where the cable and screws will be fastened Drill holes at these marks Install the mounting base using screws as shown below plug For longer cable distance OPC 999 6 remote operation m ft Connecting 20 the optional between extension transceiver and the connection cable is available and up to 2 OPC 999 can be added Insert the supplied cable into the external microphone jack and tighten the cable nut as shown below The installation is finished when it is completed 48
