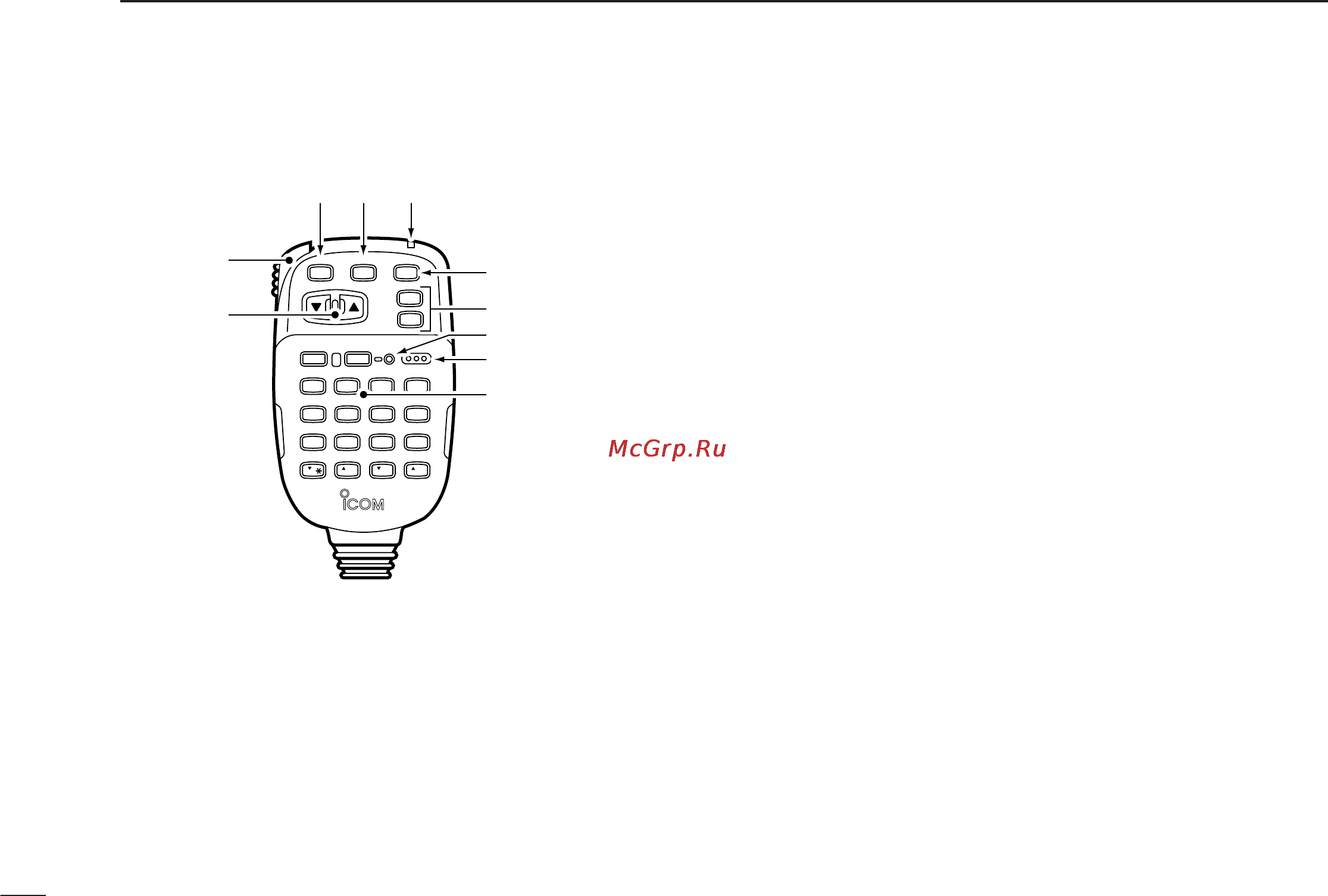

■ HM-98 microphone*
q UP/DOWN SWITCHES [
YY
]/[
ZZ
]
➥Push either switch to change the operating frequency,
memory channel, set mode contents, etc. (p. 20)
➥Push either switch for 2 sec.to start scanning. (p. 43)
w PTT SWITCH
➥Push and hold to transmit; release to receive.(p. 24)
➥Toggles between transmitting and receiving while the
one-touch PTT function is in use. (p. 25)
e VFO SWITCH [VFO(LOCK)]
➥Push to select VFO mode. (p. 18)
➥Push for 2 sec. to toggle the lock function. (p. 19)
r MEMORY SWITCH [MR(CALL)]
➥Push to select memory mode.
➥Push for 2 sec. to select the call channel. (p.38)
t ACTIVITY INDICATOR
Lights red while a key is pushed; lights green while the
one-touch PTT function is in use.
y BAND SWITCH [BAND(SUB)] (p.18)
➥Push to toggle the operating band or set the sub band
as the main band.
➥Push for 2 sec.to toggle the sub band access function.
u FUNCTION SWITCHES [F-1]/[F-2] (p.67)
Assign your desired key function from the front panel
switches.
•Default settings are [VHF M/C] for [F-1] and [UHF M/C] for [F-2].
i FUNCTION INDICATOR
➥Lights orange while [FUNC] is activated—indicates the
secondary function of switches can be accessed.
➥Lights green when [DTMF-S] is activated—DTMF sig-
nals can be transmitted with the keypad. (p. 55)
o KEYPAD
Used for controlling the transceiver, transmitting DTMF sig-
nals, etc. See the following 2 pages for details.
10
2
PANEL DESCRIPTION
LOCK
VFO
CALL
MR
SUB
BAND
MW
FUNC
A
CLR
D-OFF
B
SET
PTT-M
3
PRIO
DTMF
6
LOW
AFC-OFF
2
SCAN
CSQL
5
MID
AFC
1
MONI
PGR
4
HIGH
T-OFF
C
ENT
TSQL
9
SIMP
16
KEY LOCK
#
TSQLS
8
DUP+
TONE-2
0
TONE
7
DUP–
TONE-1
F-2
F-1
DTMF-S
MUTE
D
SQLSQLVOLVOL
Mic element
q
w
er t
y
u
i
o
*Some versions are
supplied with the
HM-97/118 instead.
