28
6
REPEATER OPERATION
■ 1750 Hz tone
A 1750 Hz tone is required to access most European re-
peaters.The microphone has 1750 Hz tone capability.
D Using the HM-98 microphone
q Push [BAND] to select the desired band.
w Push [FUNC].
•The mode indicator lights orange.
e Push [B TONE-1] to transmit a 1750 Hz tone
call signal for 0.5 sec.; push and hold [p
TONE-2] to transmit a 1750 Hz tone call signal
for an arbitrary period.
•The mode indicator goes out automatically.
•The optional HM-90 also has 1750 Hz tone capabil-
ity.

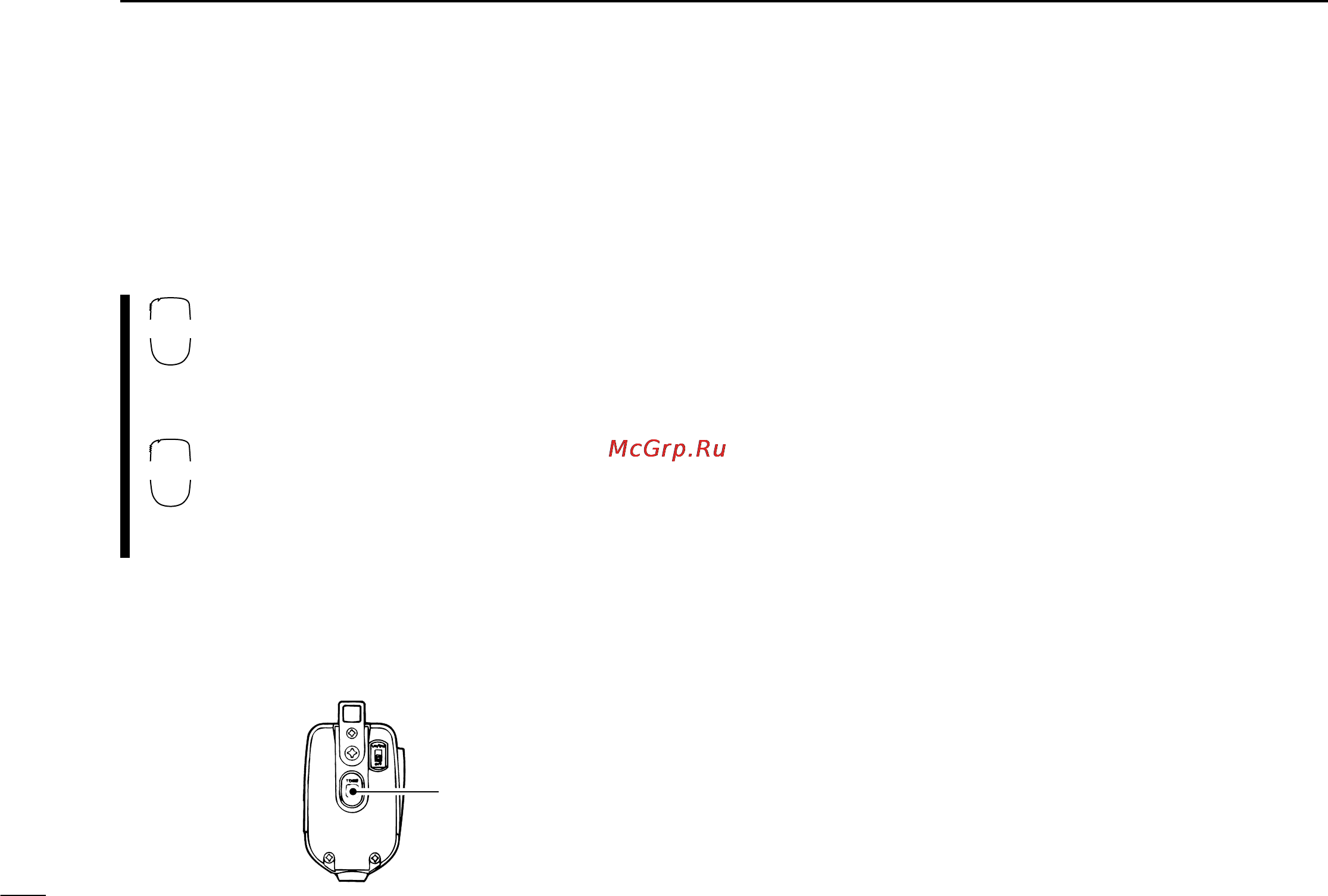

D Using the HM-97 microphone
➥Push [TONE] on the microphone rear panel to transmit a
1750 Hz tone.
TONE-1
M
TONE-2
0
[TONE]
