13
2
PANEL DESCRIPTION

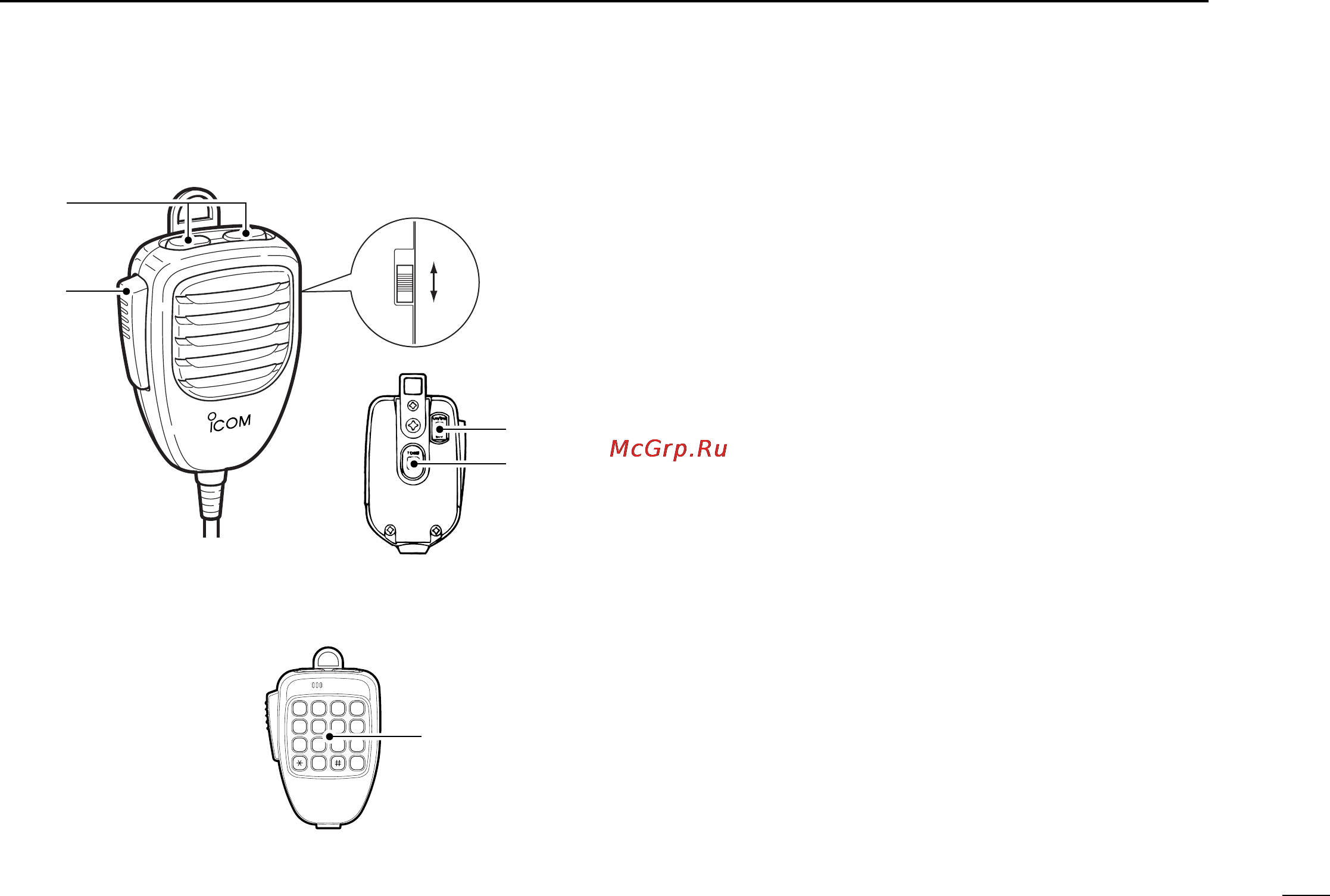

■ HM-97/118 microphone
q PTT SWITCH
Push and hold to transmit; release to receive. (p. 24)
w UP/DOWN SWITCHES [UP]/[DN]
➥Push either switch to change the operating frequency,
memory channel, set mode contents, etc. (p. 20)
➥Push either switch for 2 sec.to start scanning. (p. 42)
➥Activate a function programmed in set mode.(p.68)
e LOCK SWITCH
Locks the [UP]/[DN] keys on the microphone.
r TONE SWITCH (HM-97 only)
Push to transmit a 1750 Hz tone call signal. (p. 28)
t DTMF KEYPAD (HM-118T/TA only)
Used for transmitting DTMF signals.
1 2 3 A
4 5 6 B
7 8 9 C
0 D
HM-97HM-118
HM-118T/TA
ON
OFF
q
w
e
e
r
t
