■ General
The transceiver has 99 memory channels and 1 call channel
for each band for storage of often-used frequencies.
D Memory/call channel contents
The following information can be programmed into memory
or call channels:
•Operating frequency (p. 20)
•Operating mode (p. 74)
•8-character memory name (p. 37)
•Tuning step (p. 21)
•Duplex direction (DUP or DUP–) with an offset frequency
(pgs. 26, 30)
•Subaudible tone encoder or tone squelch ON/OFF (pgs. 26,
50)
•Subaudible tone and tone squelch frequencies (pgs.29, 51)
•Scan skip setting (p.46)
■
Programming during selection
q Select VFO mode with the desired band’s [V/M
H
].
•Push [CHG/L] if [V/M
H
] is not displayed.
w Set the desired frequency:
➥Set the frequency using the desired band’s tuning dial.
➥Set other data (e.g. offset frequency, duplex direction,
subaudible tone frequency, etc.), if required.
e Push the desired band’s [S.MW] momentarily to indicate
memory channels.
•Push [CHG/L] if [S.MW] is not displayed.
•Do not hold [S.MW] for more than 0.5 sec., otherwise the mem-
ory channel will overwrite the selected memory channel.
r Rotate the tuning dial to select the desired channel.
•Call channel (C), VFO (- -) and scan edges (1A – 3B), as well as
regular memory channels, can be programmed in this way.
t Push [(S.MW)MW] for 2 sec. to program.
•Memory channel number automatically advances when continu-
ing to push [(S.MW)MW] after programming.
32
7
MEMORY/CALL CHANNELS
MAIN
1
14
5.680
MID-LO
DUP SQL
T
MAIN
EDIT
EDIT
MAIN
TON
DUP
TON
DUP
MAIN
40
14
5.680
MID-LO
DUP SQL
T
MAIN
EDIT
EDIT
MAIN
TON
DUP
TON
DUP
MAIN
1
14
6.010
MID-LO
M
MAIN
EDIT
EDIT
MAIN
TON
DUP
TON
DUP
MAIN
40
5.
MID-LO
M
MAIN
EDIT
EDIT
MAIN
TON
DUP
TON
DUP
S.MW
MW
S.MW
MW
momentarily
blank channel
for 2 sec.

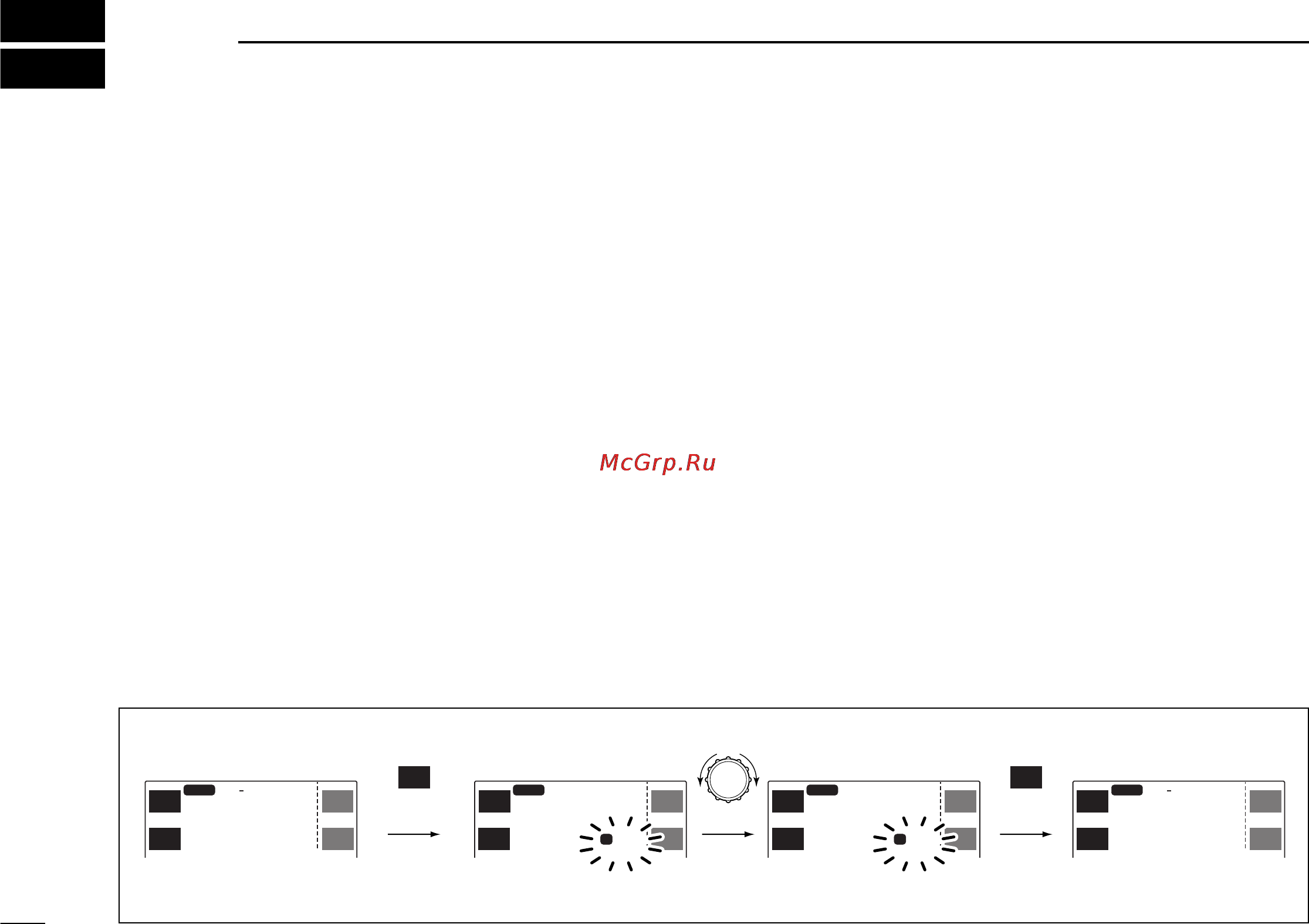

[EXAMPLE]: Programming ch 40 during selection.
