PANEL DESCRIPTION
q CHANNEL/WEATHER CHANNEL SWITCH
[CH/WX•
U/I/C]
• Selects and toggles the regular channels and
weather channel when pushed. (pgs. 6, 7)
• Selects one of 3 regular channels in se-
quence when pushed for 1 sec. (p. 6)
- International, U.S.A. and Canadian channels
are available.
w CHANNEL UP/DOWN SWITCHES [Y]/[Z]
• Select an operating channel.
• Selects the SET mode condition of the item.
(p. 13)
• Set the squelch level in the squelch set mode.
(p. 7)
e CHANNEL 16 SWITCH [16•9]
• Selects Channel 16 when pushed. (p. 6)
• Selects the call channel when pushed for
1 sec.
• Enters call Channel write mode when the call
channel is selected and this switch is pushed
for 3 sec. (p. 9)
r SCAN/TAG SWITCH [SCN•TAG] (p. 12)
• Starts and stops normal or priority scan.
• Sets and clears the displayed channel as a
tag (scanned) channel when pushed for
1 sec.
t TRANSMIT POWER/LOCK SWITCH
[H/L•
LOCK]
• Selects high, middle or low power when
pushed. (p. 8)
• Toggles the lock function ON/OFF when
pushed for 1 sec. (p. 7)
y DUALWATCH/TRI-WATCH SWITCH
[DW•
TRI] (p. 10)
• Starts dualwatch when pushed momentarily.
• Starts tri-watch when pushed for 1 sec.
• Stops dualwatch/tri-watch when either is acti-
vated.
u SQUELCH SWITCH [SQL•MONI] (p. 7)
• Push this switch, then set the squelch level
with [Y]/[Z].
• Manually opens the squelch for channel mon-
itoring when pushed for 1 sec.
i ANTENNA (p. 20)
Connects the supplied antenna.
o VOLUME CONTROL [OFF/VOL]
Turns power ON and adjusts the audio level.
!0 PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
w
q
!0
o
e
r
t
y
u
i

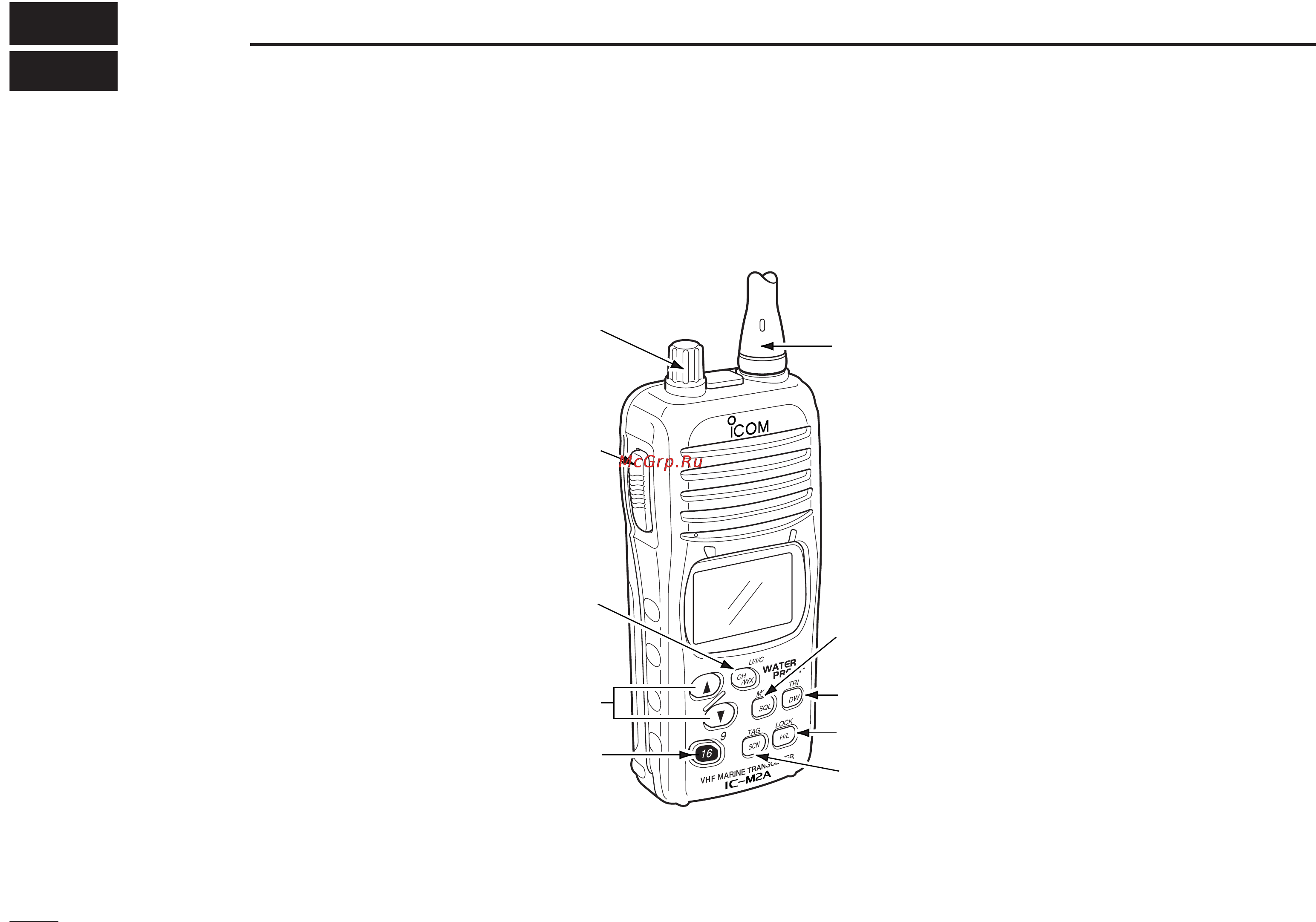

■ Front, top and side panels
