CONNECTIONS AND MAINTENANCE

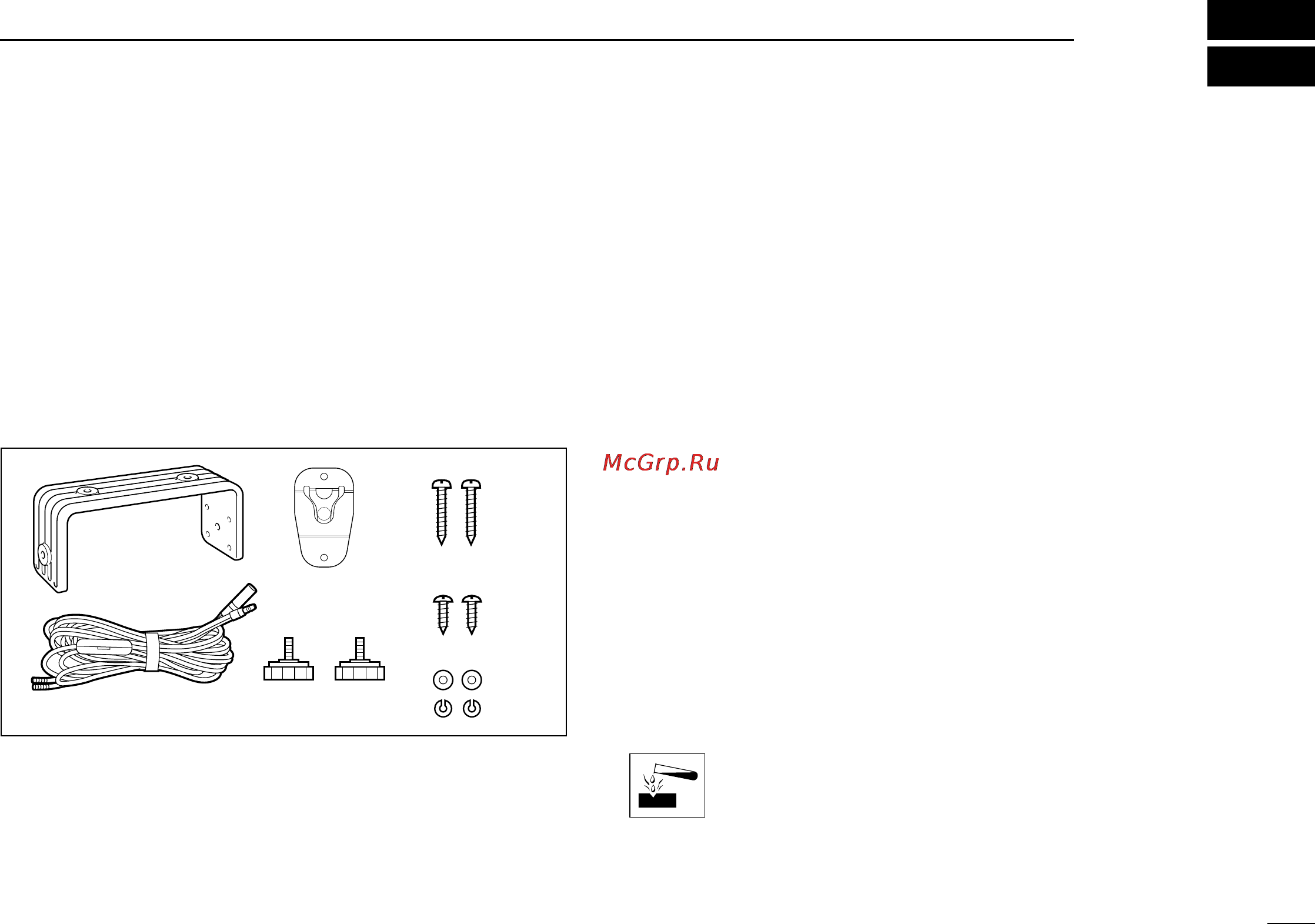

■ Unpacking
➀ Mounting bracket ............................................................ 1
➁ DC power cable (OPC-891) ............................................ 1
➂ Microphone hanger ......................................................... 1
➃ Mounting bracket knobs .................................................. 2
➄ Mounting screws (5 × 20) ................................................ 2
➅ Mic hanger screws (3 × 16) ............................................. 2
➆ Flat washers (M5) ........................................................... 2
➇ Spring washers (M5) ....................................................... 2
➀
➂
➁➃
➄
➅
➆
➇
■ Antenna
A key element in the performance of any communication sys-
tem is an antenna. Ask your Dealer about antennas and the
best places to mount them.
■ Fuse replacement
Two fuses are installed in the supplied DC power cable. If a
fuse blows or the transceiver stops functioning, track down
the source of the problem, if possible, and replace the dam-
aged fuse with a new, rated one.
☛ Fuse rating: 10 A
■ Cleaning
If the transceiver becomes dusty or dirty, wipe it clean with a
dry, soft cloth.
AVOID the use of solvents such as benzene or al-
cohol, as they may damage transceiver surfaces.
