PANEL DESCRIPTION

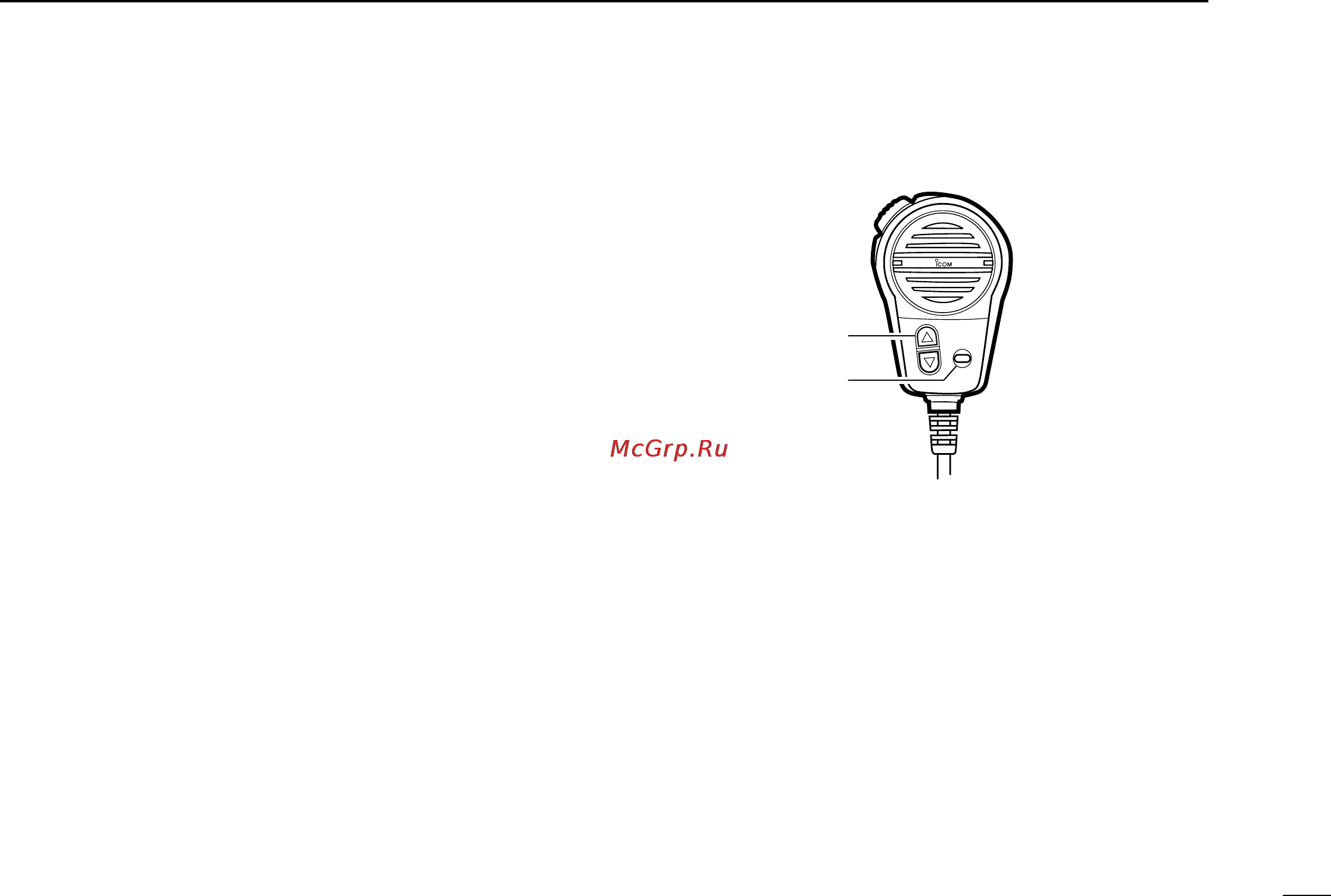

■ Microphone
q CHANNEL UP/DOWN SWITCHES [Y]/[Z]
Select an operating channel in the selected channel group.
• These switches can be used instead of the transceiver’s
[UP]/[DN] switches.
w HIGH/LOW POWER SWITCH [HI/LO]
The same function as the transceiver’s [H/L] switch—tog-
gles between high and low output powers.
• Pushing this key at power ON turns the microphone keys
ON/OFF.
HI/LO
➊
➋
➥ Push for 1 sec. to start/stop dual (tri) watch. (p. 7)
• Use SET mode to select dual or tri-watch in advance. (p. 12)
t CHANNEL 16 SWITCH [16 • 9]
➥ Push to select channel 16. (p. 5)
➥ Push for 1 sec. to select the call channel (channel 9 by
default). (p. 5)
• Each group can have it’s own call channel pro-
grammed.
➥ Push for 3 sec. (when a call channel is selected) to enter
call channel write mode. (p. 10)
• Channel indication flashes.
y SQUELCH CONTROL [SQUELCH]
Rotate clockwise to eliminate audio noise. (p. 7)
u POWER/VOLUME CONTROL [PWR/VOL]
Turns power ON and OFF and adjusts the audio output
level.
