SiBE041010EA Outdoor Unit
Printed Circuit Board Connector Wiring Diagram 16
2. Outdoor Unit

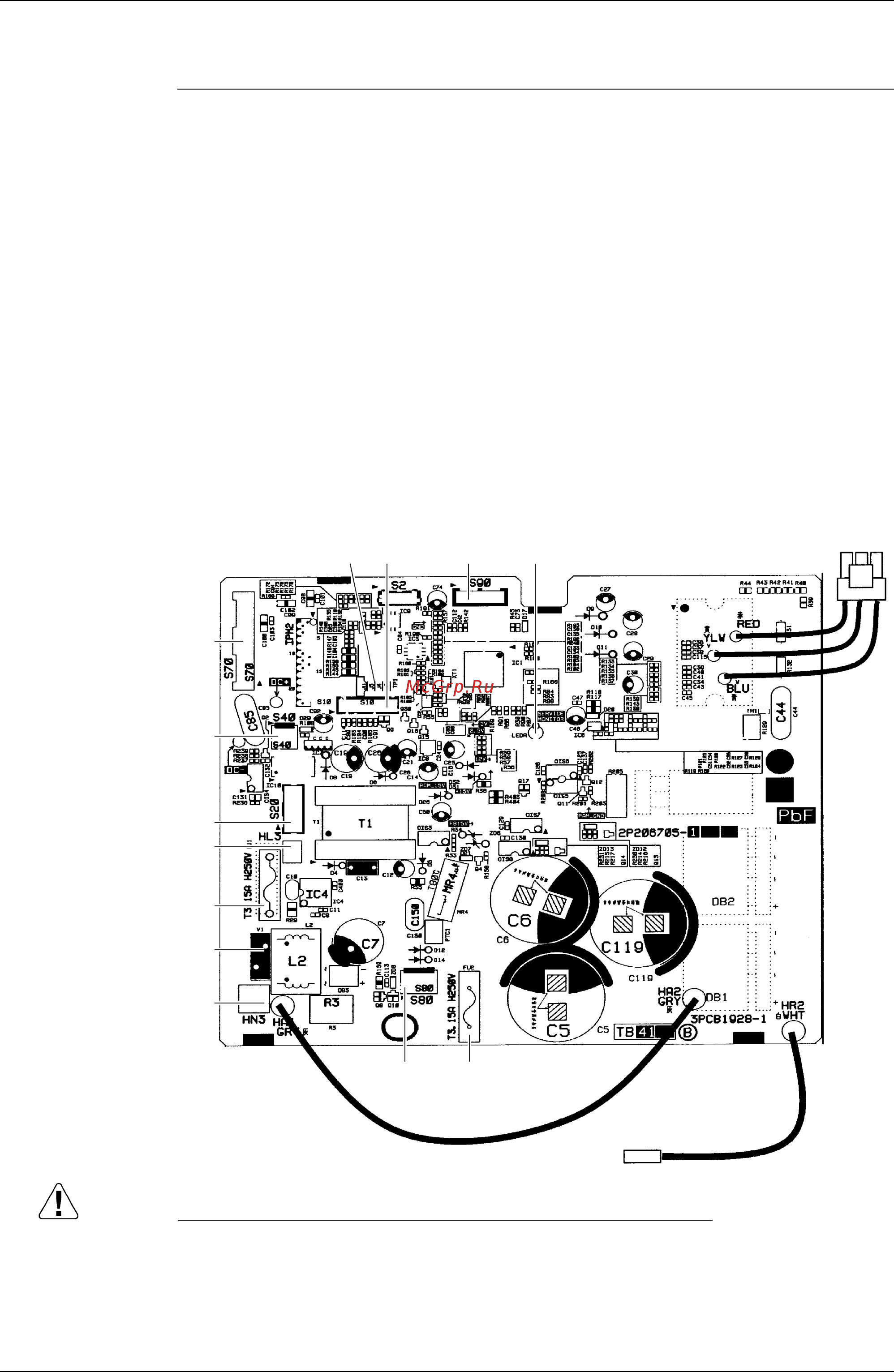

Main PCB
Caution Replace the PCB if you accidentally cut any jumper other than J5.
Jumpers are necessary for electronic circuit. Improper operation may occur if you cut any of
them.
1) S10 Connector for filter PCB
2) S20 Connector for electronic expansion valve coil
3) S40 Connector for overload protector
4) S70 Connector for fan motor
5) S80 Connector for four way valve coil
6) S90 Connector for thermistors
(outdoor temperature, outdoor heat exchanger, discharge pipe)
7) HL3, HN3 Connector for filter PCB
8) HR2 Connector for reactor
9) U, V, W Connector for compressor
10)FU1, FU2 Fuse (3.15 A, 250 V)
11)LED A LED for service monitor (green)
12)V1 Varistor
13)J5 Jumper for improvement of defrost performance
∗ Refer to page
97
for detail.
S90 LED AS10
J5
S70
S40
S20
HL3
FU1
HN3
S80 FU2
HR2
UVW
V1
2P206705-1
2P206705-3
