Remote Controller SiBE041010EA
43 Remote Controller

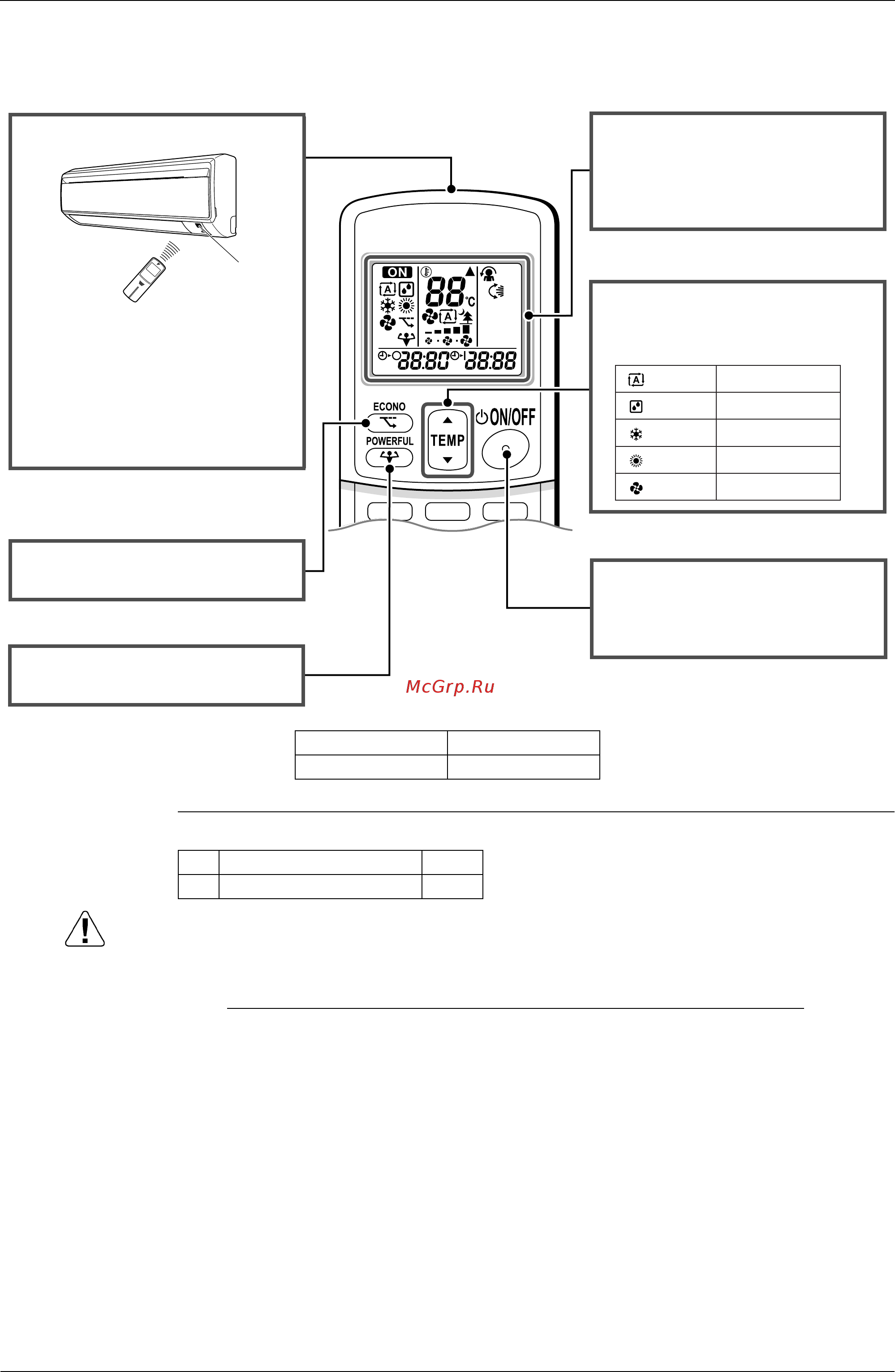

1. Remote Controller
Reference Refer to the following pages for detail.
Note: Refer to the operation manual of applicable model for detail. You can download operation
manuals from ‘DISTRIBUTOR’S PAGE’:
DISTRIBUTOR’S PAGE → Product Information → Operation/Installation Manual
(URL: http://global.daikin.com/Daikin/global/Distributors_admin/user_mng/login.php
)
FTX series ARC433A87
ATX series ARC433A89
QUIET SWING
COMFORT
Signal transmitter
• To use the remote controller, aim the
transmitter at the indoor unit. If there
is anything to block signals between
the unit and the remote controller,
such as a curtain, the unit will not
operate.
• The maximum distance for
communication is approx. 7 m.
ECONO
1
button
• ECONO operation
POWERFUL
2
button
• POWERFUL operation
ON/OFF button
• Press this button once to start
operation.
Press once again to stop it.
TEMPERATURE
adjustment buttons
• Changes the temperature setting.
: AUTO
: DRY
: COOL
: HEAT
: FAN
18 ~ 30 ˚C
Not available
18 ~ 32 ˚C
10 ~ 30 ˚C
Not available
Display (LCD)
• Displays the current settings.
(In this illustration, each section is
shown with all its displays on for the
purpose of explanation.)
(R18210)
Receiver
1 ECONO operation P.26
2 POWERFUL operation P.27
