Icom IC-M700PRO [15/28] Set mode
![Icom IC-M700PRO [15/28] Set mode](/views2/1074635/page15/bgf.png)
11
5

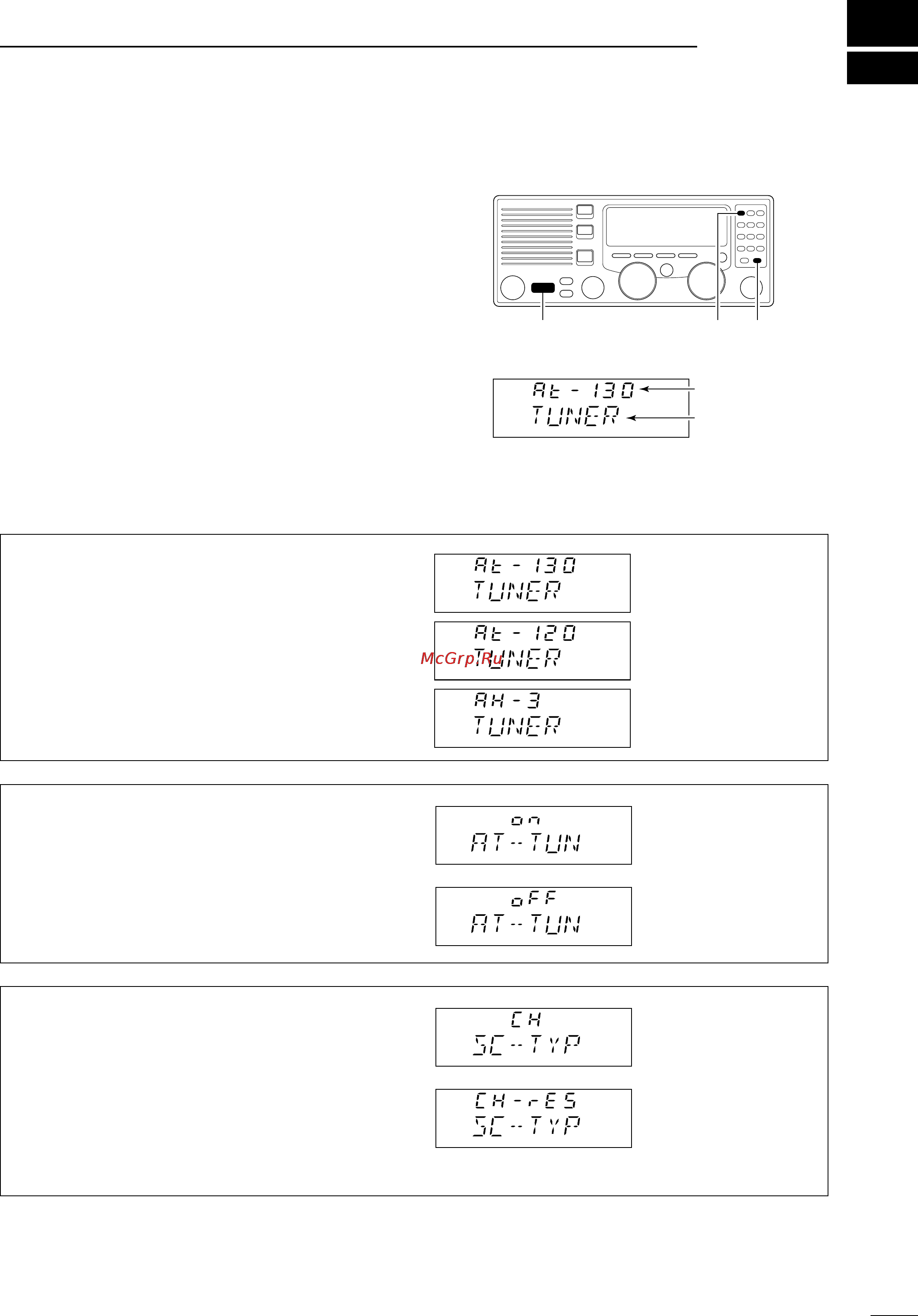

SET MODE
■ Set mode operation
Set mode operation is used for programming infre-
quently changed values or conditions of functions.
✍ NOTE: Some of the set mode items described in
this section are not available on some transceiver
versions.
➀ Push [POWER] to turn power off, if necessary.
➁ While pushing [ENT] + [1], push [POWER] to turn
power on and enter set mode.
➂ Rotate the [GROUP] selector to select the desired
item.
➃ Rotate the [CHANNEL] selector to set the values or
conditions for the selected item.
➄ Turn power off and on again to exit set mode.
[POWER]
Condition
Item
[ENT][1]
(1) Connected antenna tuner
The transceiver has several tuner control systems for
use with an optional Icom antenna tuner. Select the
condition depending on the connected antenna tuner.
☞ NOTE: Internal switch selection may be required
when using a non-Icom tuner (p. 19).
AT-130
(default)
AT-120
AH-3
(2) Automatic tuning condition
When the optional AT-130 automatic antenna tuner is
connected, tuning can be started automatically with-
out the [TUNE] switch, for instant operation.
If manual tuning is required, this automatic operation
can be deactivated.
Tuning starts when pushing
[PTT] on a new frequency.
Tuning starts only when
[TUNE] is pushed.
(default)
(3) Scan type selection
This item sets scan to function as “channel scan” or
“channel resume scan.”
Both channel scan and channel resume scan search
around a user selected channel or search in the band
when a channel is selected.
Channel scan
Scan is canceled when
transmitting.
Channel resume scan
Scan pauses when squelch
opens, then resumes after
10 sec.
(default)
■ Set mode contents
