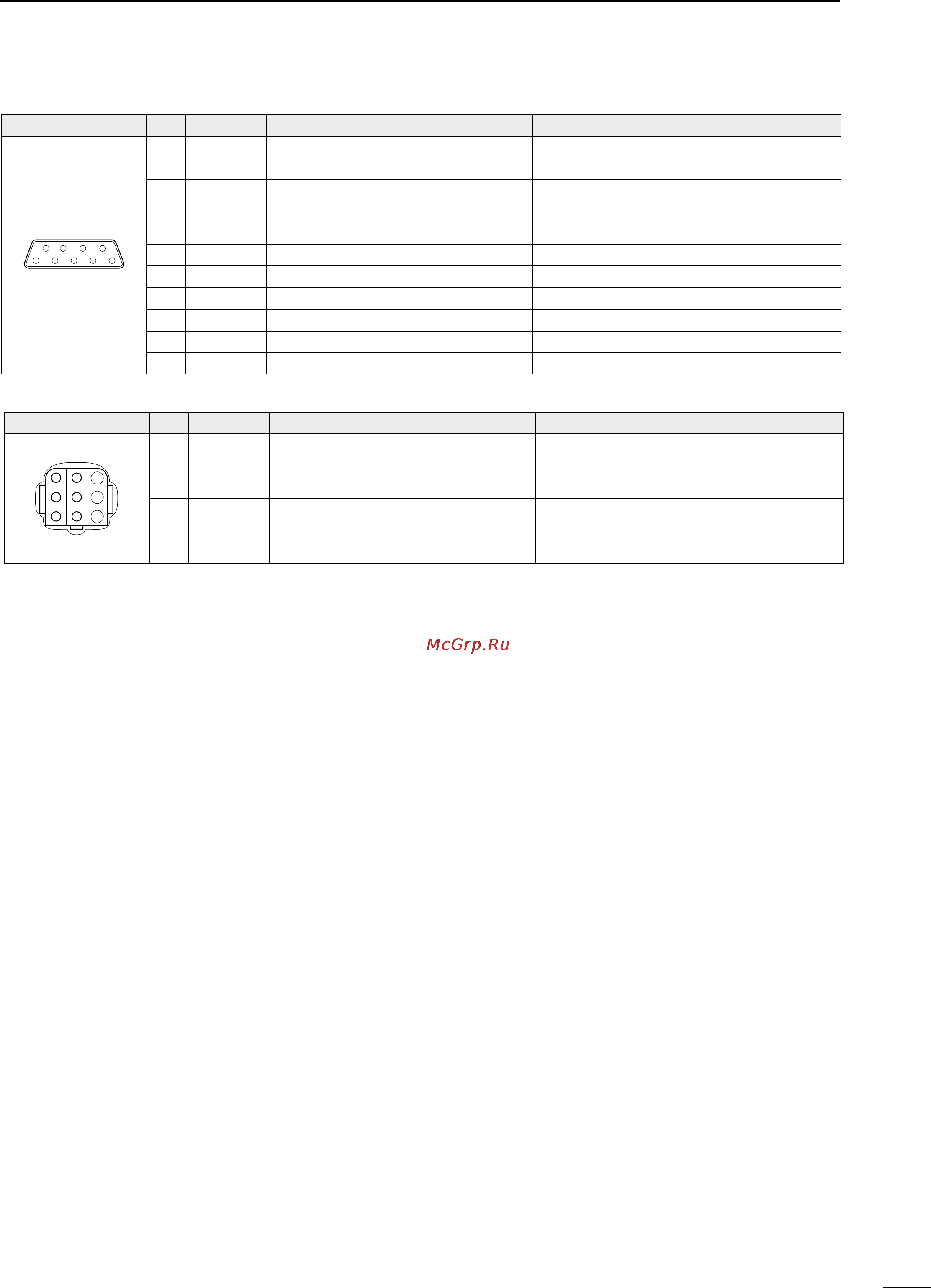

CONNECTIONS AND INSTALLATION
17
REMOTE
PIN
PIN NAME DESCRIPTION
SPECIFICATIONS
2 MOD– Coaxial ground for MOD+.
1 MOD+
Modulation input from an external
terminal unit.
Input impedance: 600 Ω
Input level: Approx. 1.3 mV rms
4 AF– Coaxial ground for AF+.
5 NMI+ NMEA data input. NMEA standard format/level
6 NMI– Coaxial ground for NMI+.
7 NMO+ NMEA data output. NMEA standard format/level
3 AF+
AF detector output for an external
terminal unit.
Output impedance: 600 Ω
Output level: 0.25–2.5 V rms
8 NMO– Coaxial ground for NMO+.
9 GND Ground for digital equipment.
69
51
DC 13.6V PIN NAME DESCRIPTION
SPECIFICATIONS
1,4,7 +ve +ve DC input Max. power consumption: 30 A
2, 5,
8
–ve –ve DC input
1
46
23
789
