14
5
SET MODE

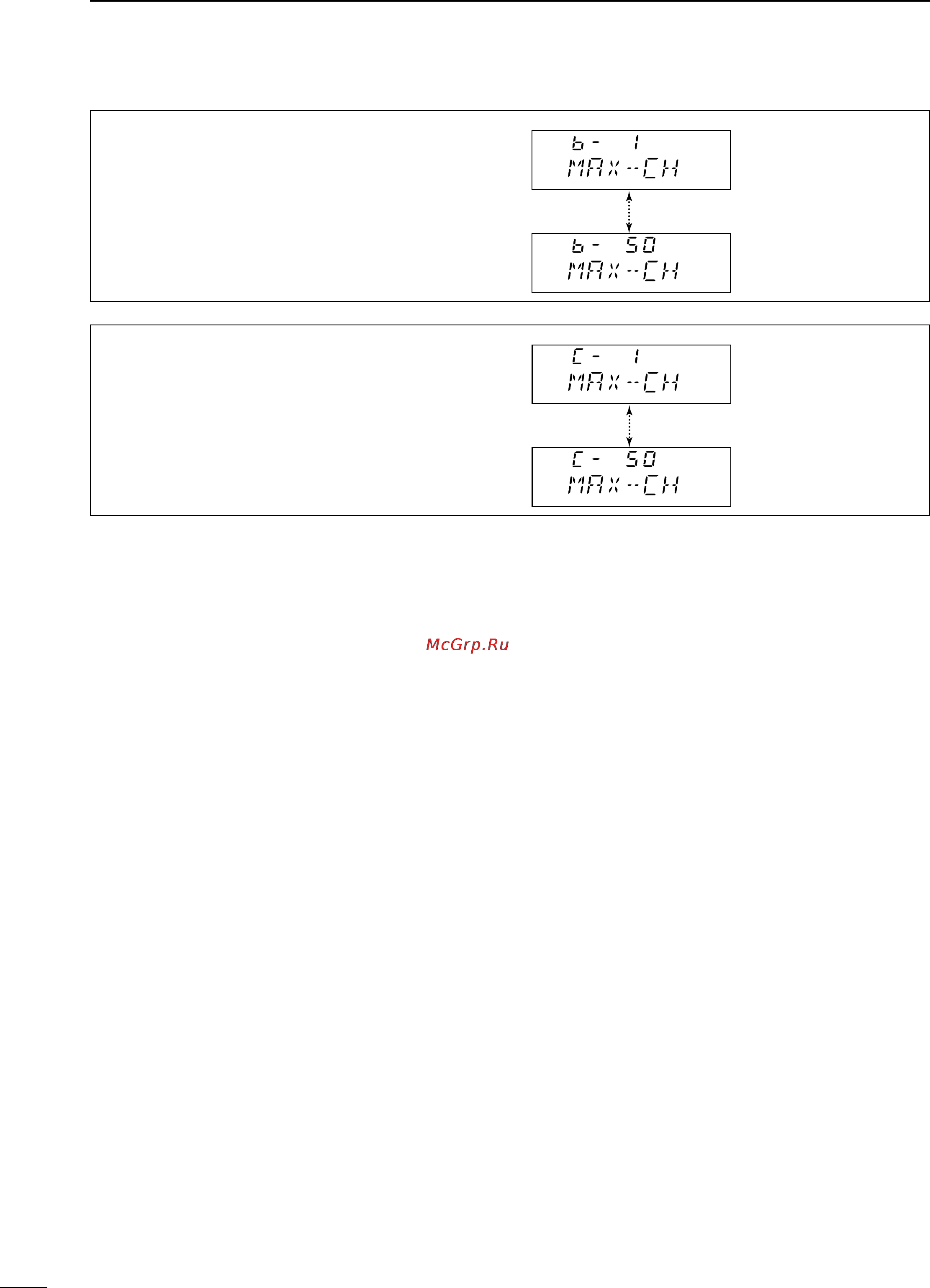

(14) Group B channel inhibit
This item allow you to set the number of usable chan-
nels in channel group B, up to a maximum of 50
channels.
Minimum number of
channels set for
Group B: 1
Maximum number of
channels set for
Group B: 50 (default)
(15) Group C channel inhibit
This item allow you to set the number of usable chan-
nels in channel group C, up to a maximum of 50
channels.
Minimum number of
channels set for
Group C: 1
Maximum number of
channels set for
Group C: 50 (default)
