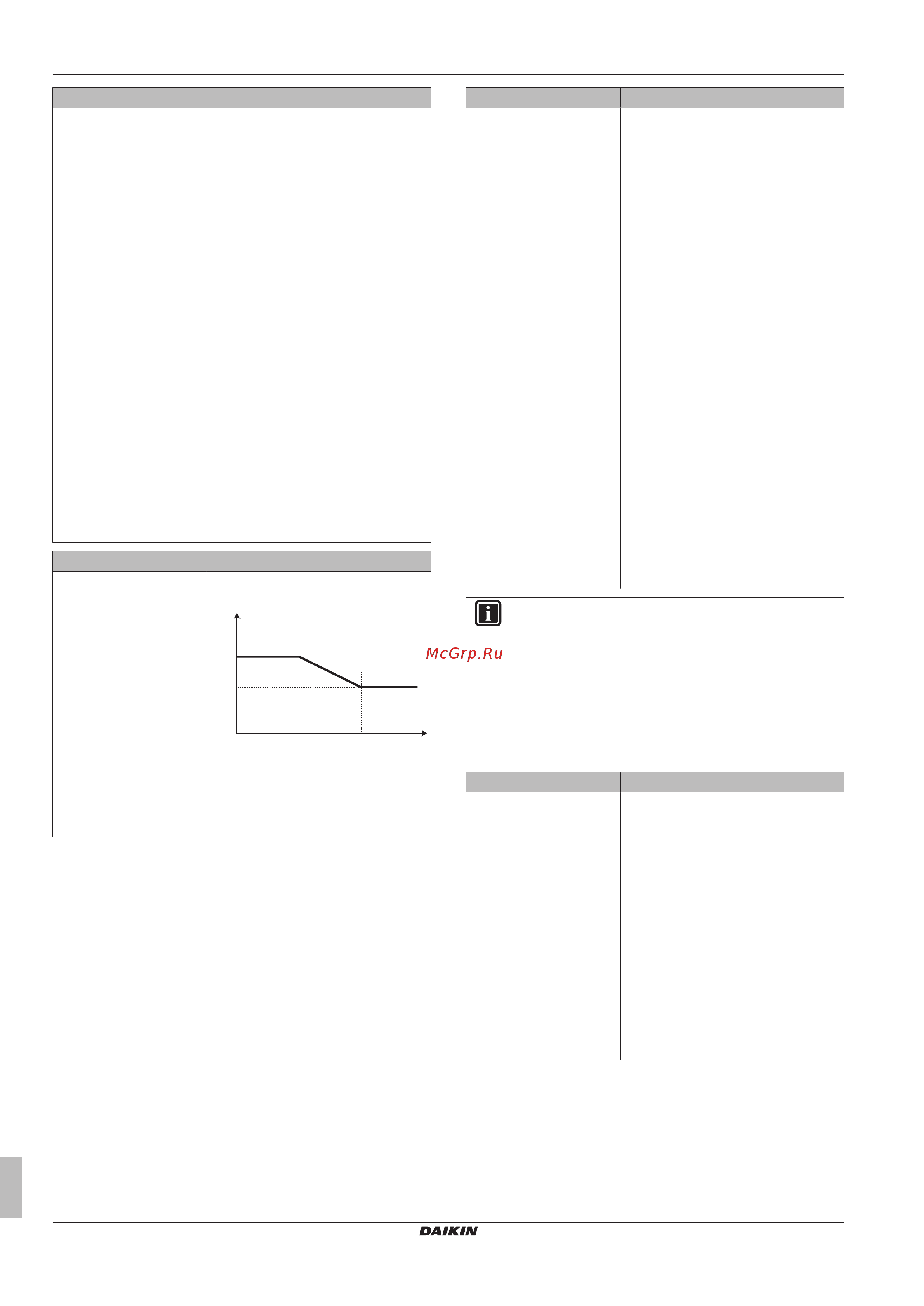

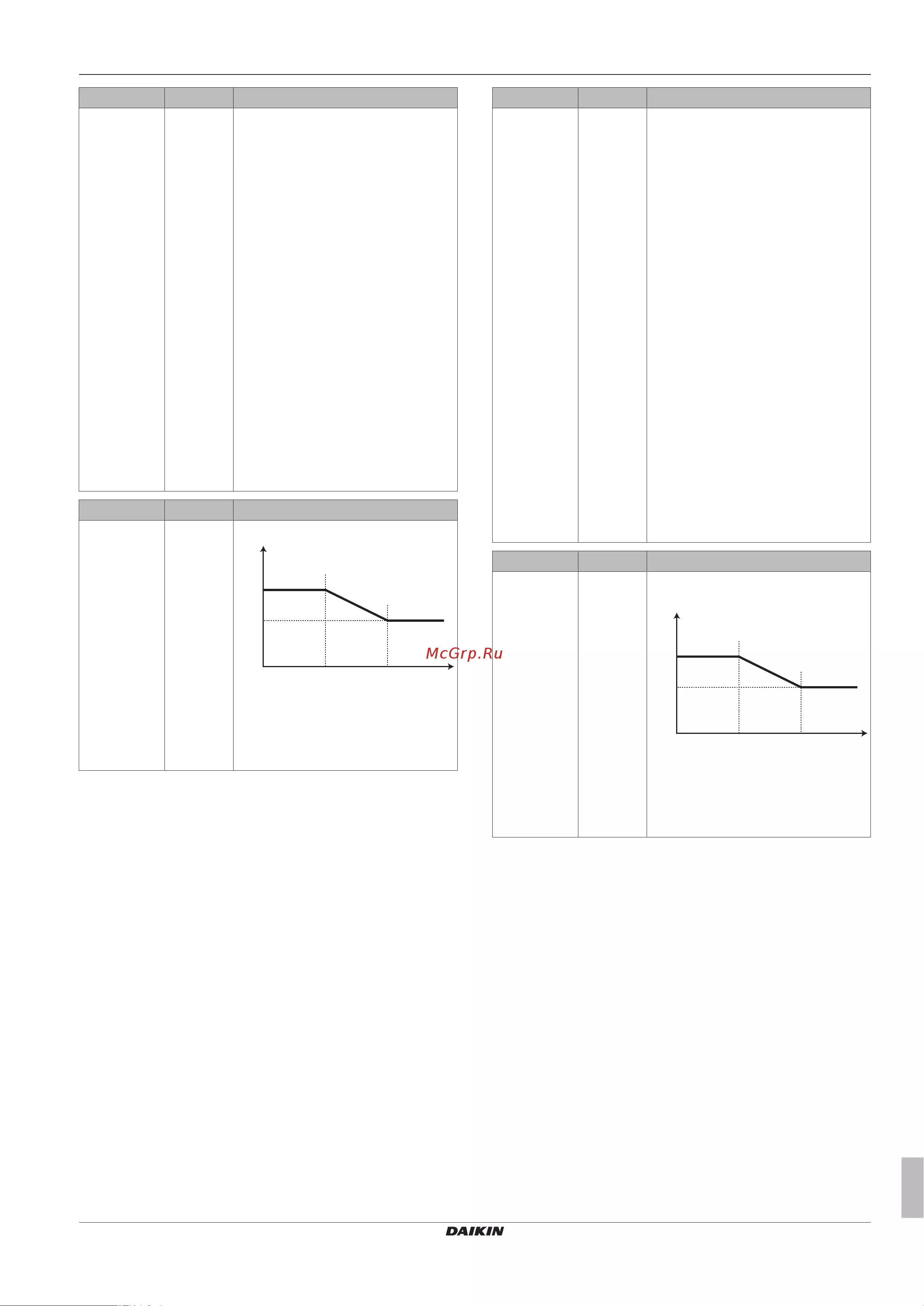

8 Configuration
Installer reference guide
58
EVLQ05+08CAV3 + EHYHBH05AA + EHYHBH/X08AA +
EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1A – 2016.02
# Code Description
[7.7.1.1] [1‑00]
[1‑01]
[1‑02]
[1‑03]
<< continuation
▪ [1‑00]: Low outdoor ambient
temperature. –40°C~+5°C (default: –
10°C)
▪ [1‑01]: High outdoor ambient
temperature. 10°C~25°C (default:
15°C)
▪ [1‑02]: Desired leaving water
temperature when the outdoor
temperature equals or drops below
the low ambient temperature.
[9‑01]°C~[9‑00]°C (default: 60°C).
Note: This value should be higher
than [1-03] as for low outdoor
temperatures warmer water is
required.
▪ [1‑03]: Desired leaving water
temperature when the outdoor
temperature equals or rises above
the high ambient temperature.
[9‑01]°C~min(45, [9‑00])°C (default:
35°C).
Note: This value should be lower
than [1-02] as for high outdoor
temperatures less warm water is
required.
# Code Description
[7.7.1.2] [1‑06]
[1‑07]
[1‑08]
[1‑09]
Only for EHYHBX08. Set weather-
dependent cooling:
[1-09]
[1-08]
T
a
T
t
[1-06] [1-07]
▪ T
t
: Target leaving water temperature
(main)
▪ T
a
: Outdoor temperature
continued >>
# Code Description
[7.7.1.2] [1‑06]
[1‑07]
[1‑08]
[1‑09]
<< continuation
▪ [1‑06]: Low outdoor ambient
temperature. 10°C~25°C (default:
20°C)
▪ [1‑07]: High outdoor ambient
temperature. 25°C~43°C (default:
35°C)
▪ [1‑08]: Desired leaving water
temperature when the outdoor
temperature equals or drops below
the low ambient temperature.
Between minimum and maximum
leaving water temperature
[9‑03]°C~[9‑02]°C (default: 22°C).
Note: This value should be higher
than [1-09] as for low outdoor
temperatures less cold water
suffices.
▪ [1‑09]: Desired leaving water
temperature when the outdoor
temperature equals or rises above
the high ambient temperature.
Between minimum and maximum
leaving water temperature
[9‑03]°C~[9‑02]°C (default: 18°C).
Note: This value should be lower
than [1-08] as for high outdoor
temperatures colder water is
required.
INFORMATION
In order to optimise comfort as well as running costs, it is
recommended to choose weather-dependent setpoint
operation. Set the settings carefully; they have significant
influence on heat pump as well as boiler operation. Too
high leaving water temperature can result in constant boiler
operation.
Leaving water temperature: Additional zone
Only applicable if 2 leaving water temperature zones are present.
# Code Description
[A.3.1.2.1] N/A LWT setpoint mode:
▪ Fixed: The desired leaving water
temperature is:
▪ NOT weather-dependent (i.e. does
NOT depend on the outdoor
ambient temperature)
▪ fixed in time (i.e., NOT scheduled)
▪ Weather dep. (default): The desired
leaving water temperature is:
▪ weather-dependent (i.e. depends
on the outdoor ambient
temperature)
▪ fixed in time (i.e., NOT scheduled)
continued >>
