35
SET MODE
9
■ General
DD

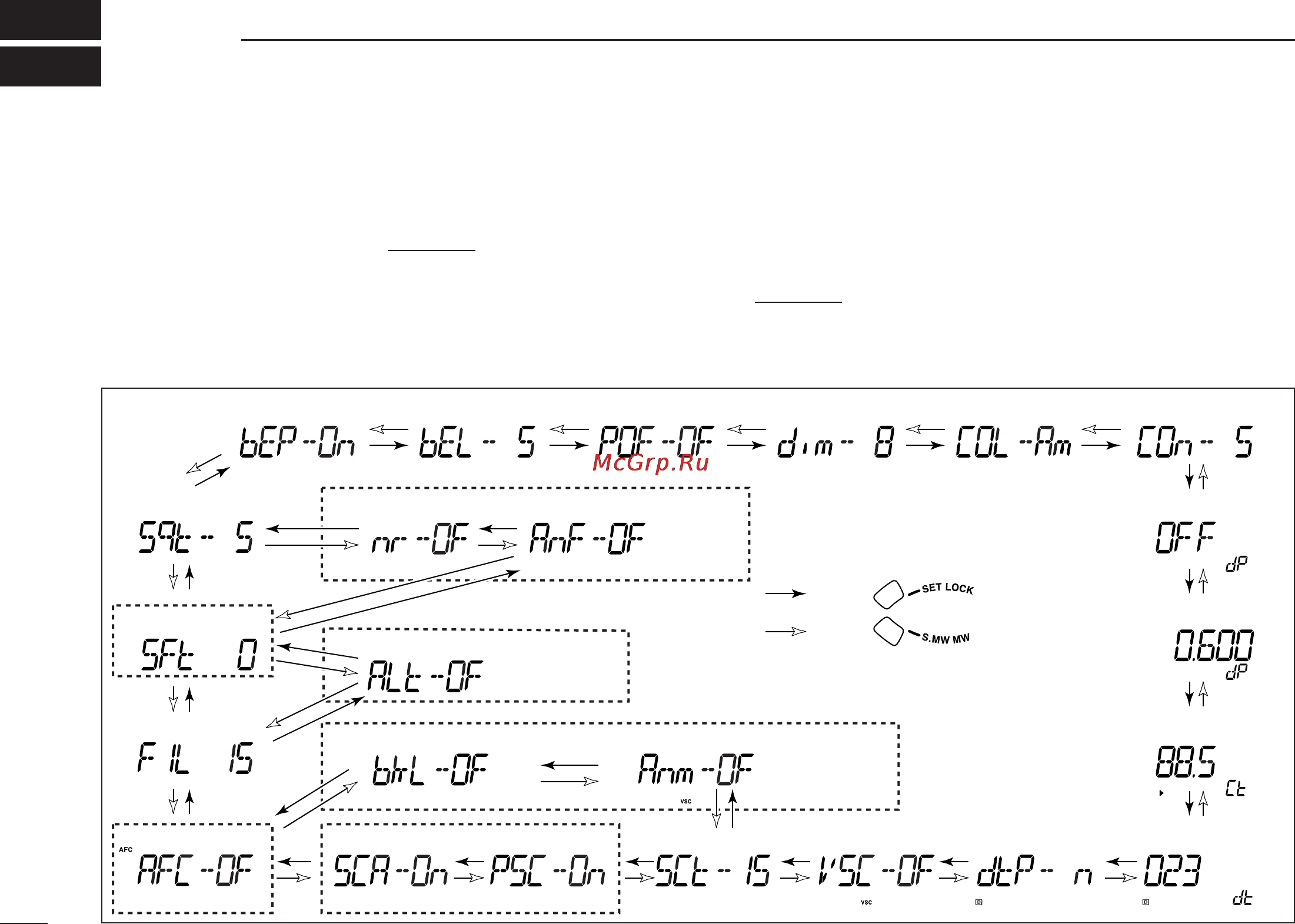

Set mode operation
q Push [SET•LOCK] to enter set mode.
w Push [SET•LOCK] or [S.MW•MW] to select the desired
item.
e Rotate [DIAL] to select the desired condition of the item.
r Push [TS•MODE] or any switch below the display to exit
set mode
.
†
Appears when accessing set mode from VFO mode only.
‡
Appears when accessing set mode from memory mode only.
: Push
: Push
• Weather alert
*
1
When the UT-106 is installed
• Display dimmer• Auto power OFF• Key-touch beep • Beep output level
• Display color
• TSQL frequency
• DTCS code• DTCS polarity
• Offset frequency
• Duplex direction
• Display contrast
• Scan resume timer • VSC function
• Bank link function
‡
• AFC function*
2
• NR function*
4
• ANF function*
4
• Squelch delay
• IF filter
• IF shift
*
3
• Program skip
†
• Scan skip area
†
• Memory name
‡
Memory mode
only
FM mode only VFO mode only
SSB/CW
mode only
USA/CANADA
versions only
*
1
Available for USA/CANADA versions only.
*
2
Appears while in FM mode only.
*
3
Appears while in SSB/CW mode only.
*
4
Appears when the UT-106 is selected.
■ Set mode items
