44
10
OTHER FUNCTIONS
10
Cloning allows you to quickly and easily transfer the pro-
grammed contents from a personal computer to a receiver
using the IC-PCR1500 control software.
D Cloning using a personal computer
Data can be cloned to and from a personal computer (Mi-
crosoft
®
Windows
®
XP/2000/Me/98SE) and the other setting
can also be programmed from a PC. Consult the cloning in-
struction manual for details.
D Available functions
➥ Reading or writing Clone Data
➥ Programming memory channels/memory banks/scan
edges
➥ Programming set mode settings
➥ Converting the Data both of PC (PCR1500) to receiver
(R1500) or receiver (R1500) to PC (PCR1500)
➥ Automatic mode settings
• The automatic mode setting is available to automatically set the
receive mode, IF filter passband width, tuning step, etc. after in-
putting frequency ranges.
➥ Skip area settings
• The skip area setting is available for skipping unwanted fre-
quency ranges that inconveniently stop scanning.
Main unit
to ground
PC
to USB port
USB cable
to AC adapter

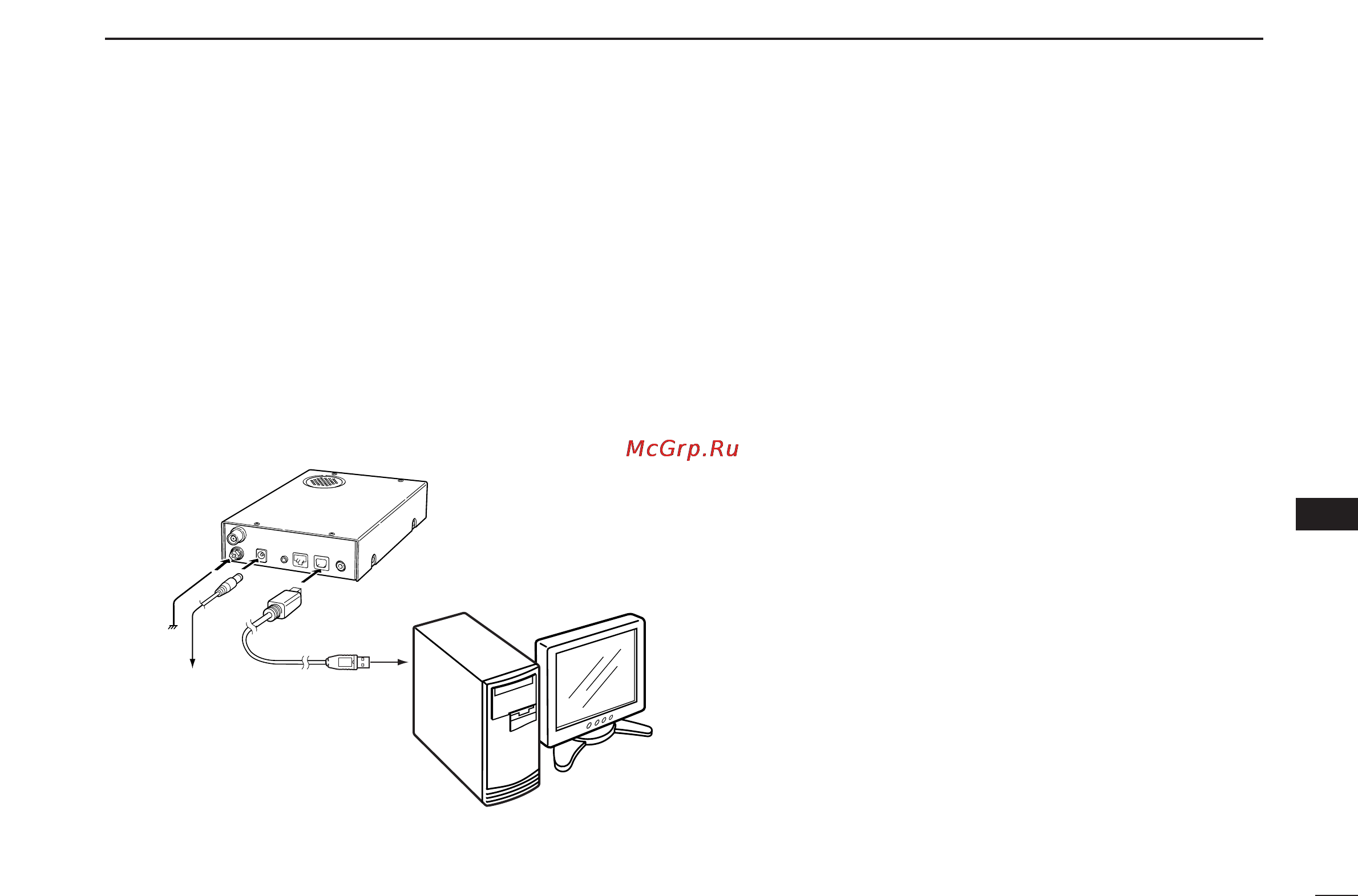

■ DATA cloning (IC-PCR1500 control software must be installed)
Microsoft and Windows are registered trademarks of Microsoft Corporation in
the U.S.A. and other countries.
