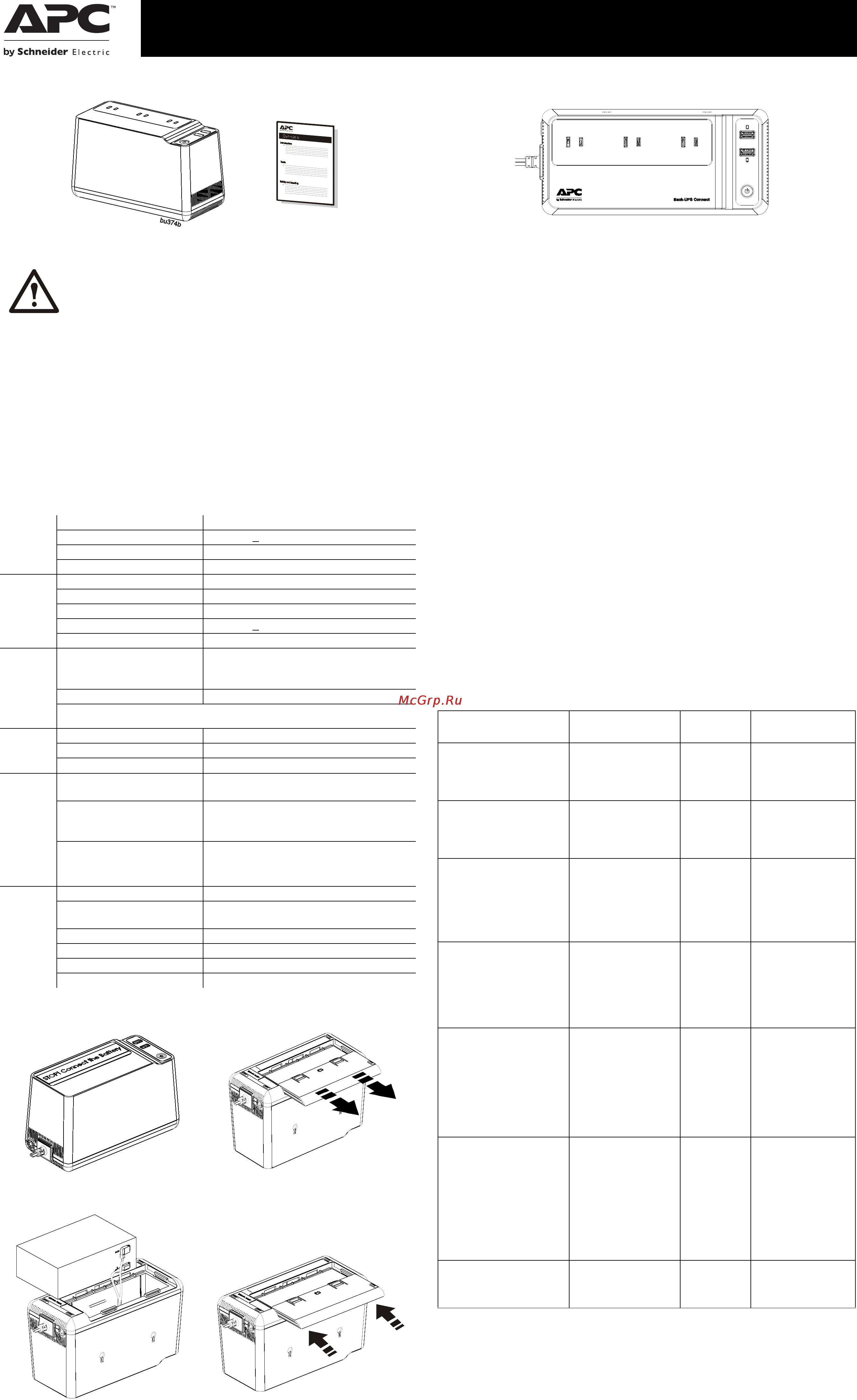

Inventory
Safety and General Information
Inspect the package contents upon receipt. Notify the
carrier and dealer if there is any damage.
Read the Safety Guide supplied with this unit before
installing the UPS.
• This unit is designed for low power devices less than 75 Watts. When the UPS is
on battery, the unit will shut down automatically to protect itself once the load on
the UPS is greater than 75Watts.
• This UPS is intended for indoor use only.
• Do not operate this UPS in direct sunlight, in contact with fluids, or where there is
excessive dust or humidity.
• Be sure the air vents on the UPS are not blocked. Allow adequate space for proper
ventilation.
• The battery typically lasts for three to five years. Environmental factors impact
battery life. Elevated ambient temperatures, poor quality AC power, and frequent
short duration discharges will shorten battery life.
• Connect the UPS power cable directly to a wall outlet. Do not use surge protectors
or extension cords.
Specifications
Connect the Battery
The Back-UPS is shipped with one battery cable disconnected.
Connect Equipment
Battery Backup Outlets
Battery backup outlets provide protection from power surges and spikes for connected
equipment when the Back-UPS is turned on and connected to AC power.
Battery backup outlets provide power for a limited period of time when a power
outage, or brownout condition occurs.
Connect low power devices such as broadband modems, wireless routers and Voice
Over IP (VOIP) phones to the outlets.
To maximize runtime during a power outage only connect critical equipment to the
UPS.
This UPS is designed to sustain low power devices for extended periods of time.
When the UPS is on battery, the unit will shut down automatically if the load on the
UPS exceeds 75Watts. Low power devices include modems, routers, USB chargers,
VOIP and cordless phones.
USB charging ports
The two USB ports provide a total of 2.5A of DC power.
Both USB ports will provide power when the unit is on battery.
To maximize charging efficiency the top port is used for tablets and the bottom port
(closer to the power button) for smart phones although both can be used for either.
Turn On the Back-UPS
Press the POWER ON button located on the top of the Back-UPS. The Power On/
Replace Battery LED will illuminate and a single short beep will be audible to
indicate that the Back-UPS is providing protection for connected equipment.
The Back-UPS battery charges fully during the first 6 hours while connected to AC
power. The Back-UPS battery will charge while the Back-UPS is switched on or off
and is connected to AC power. Do not expect full battery run capability during the
initial charging period. Using the USB ports while charging the battery will increase
the amount of time required.
Status Indicators
Input
Voltage 120 Vac Nominal
Frequency 50/60 Hz +
3Hz auto-sensing
Brownout Transfers 92 Vac Typical
Over-voltage Transfer 139 Vac Typical
Output
UPS Capacity 125 VA, 75 W
Total Amperage (AC outlets) 1.04 A
Voltage - On Battery 115 Vac ± 8%
Frequency - On Battery 50/60 Hz +
1
Transfer Time 6 ms Typical, 10 ms maximum
USB
Ports
* Charging Currents
- USB (top)
- USB (bottom)
2.5A (Total)
- 1.5A (Maximum)
- 1.0A (Maximum)
Charger compatibility USB Battery Charging Specification 1.2
* Power output is dependent power drawn by the connected device. Check your device
manufacturer to understand the maximum charging current for a given USB spec.
Protection
and
Filtering
AC Surge Protection Full time, 90 Joules
EMI/RFI Filter Full time
AC Input Resettable circuit breaker
Battery
Type Sealed, maintenance-free, lead acid 12V
(12Vx1)
Average Life 3 - 5 years depending on the number of
discharge cycles and environmental
temperature
Charging Time
6 hours. Using the USB ports while charging
the battery will increase the amount of time
required.
Physical
Net Weight 6.6 lb (3.0 kg)
Dimensions
Length x Width x Height
8.9 in x 4.1 in x 5.2 in
22.5 cm x 10.5 cm x 13.2 cm
Operating Temperature 32º F to 104º F (0º C to 40º C)
Storage Temperature 5º F to 113º F (–15º C to 45º C)
Operating Relative Humidity 0 to 95% non-condensing humidity
Operating Elevation 0 to 10,000 ft (0 to 3000 m)
Remove the “Stop! Connect the
Battery” label that covers the outlets.
Press the battery compartment cover
release tabs located on the underside of the
unit. Slide the battery cover off.
Connect the battery cable securely to
the battery terminal. It is normal for small
sparks to be seen when the battery cable is
connected to the battery terminal.
Reinstall the battery compartment cover.
Be sure that the release tab locks into place.
b
u
3
7
9
b
bu375a
bu376a
bu378a
Status Power Button LED
Audible
Indicator On
Audible Indicator
Terminates
Power On
The Back-UPS is
supplying AC power to
connected equipment.
The LED illuminates
green.
None N/A
On Battery
Back-UPS supplying
battery power to battery
backup outlets.
The LED illuminates
green. The LED
flashes once at the end
of every 2 seconds.
None N/A
Low Battery warning
The Back-UPS is
supplying battery power to
the battery backup outlets
and the battery is near a
total discharge state.
The LED illuminates
green and flashes in
rapid succession.
The Back-
UPS emits 4
rapid beeps,
every
30 seconds.
Beeping stops when
AC power is
restored or the Back-
UPS is turned off.
Replace Battery
• The battery is
disconnected.
• The battery needs to be
charged, or replaced.
•The LED
illuminates red only.
• The LED alternately
illuminates green-
red.
• Constant
tone
• Constant
tone
Back-UPS is turned
off.
Overload Shutdown
While on battery power an
overload condition has
occurred in one or more of
the battery backup outlets
while the Back-UPS is
operating on battery
power.
None Constant
tone
Back-UPS is turned
off.
Sleep Mode
While the Back-UPS is on
battery power, the UPS
will shut down when the
battery is completely
discharged. The
Back-UPS will “awaken”
once AC power is
restored.
None None N/A
USB Fault
An error has occurred in
the USB charger.
The LED illuminates
amber.
None N/A
bu377b
User Manual Back-UPS
™
Connect BGE90M/90M-CA 120 Vac
