Si10-417 Diagnosis by Remote Controller
Service Diagnosis 9
3. Diagnose by the sound.
“ pi ” : The number of tens does not accord with the
error code.
“ pi pi ” : The number of tens accords with the error
code.
“ beep ” : The both numbers of tens and units accord
with the error code. (
→
See 7.)

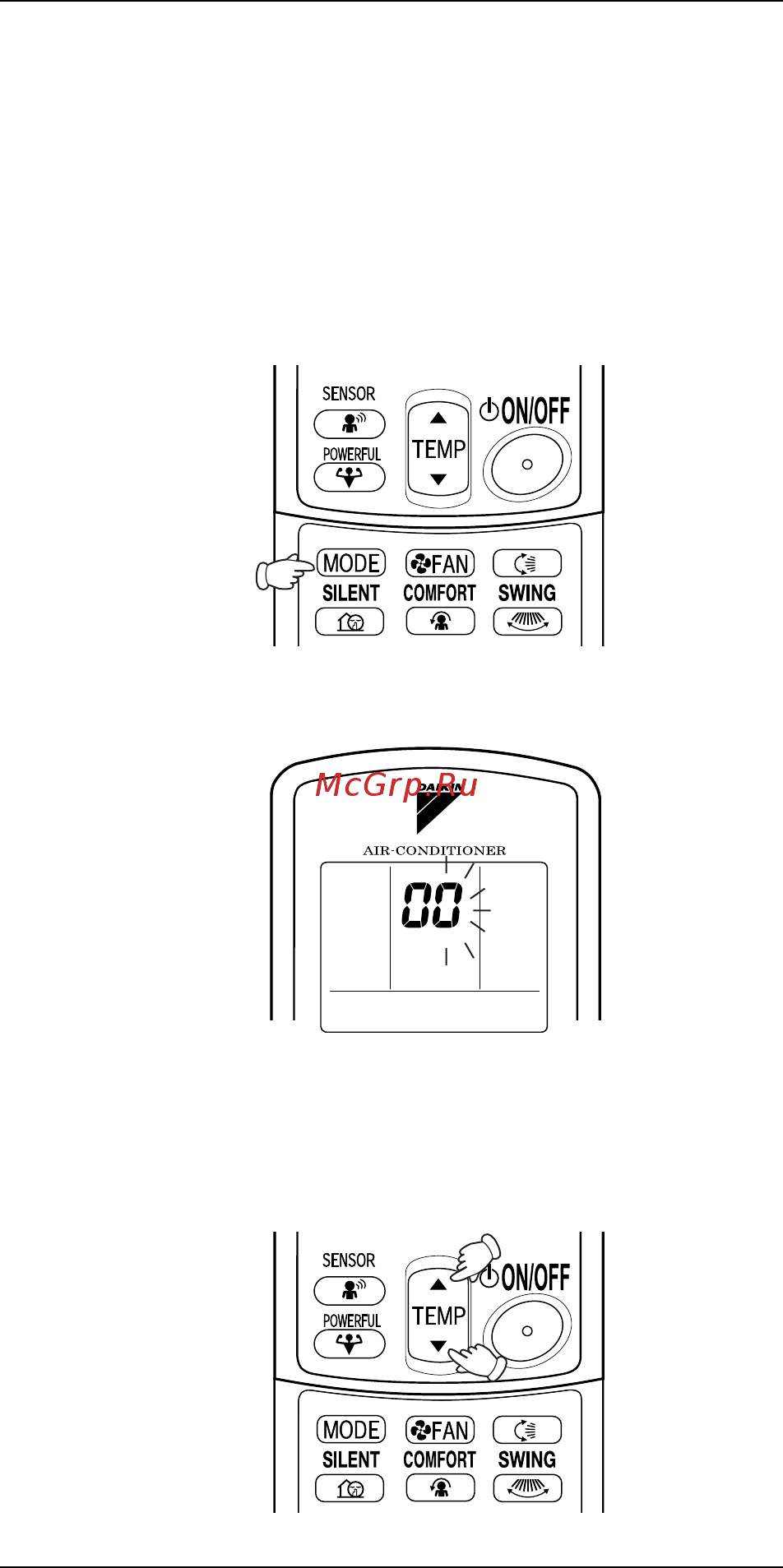

4. Enter the diagnosis mode again.
Press the MODE button.
The digit of the number of units blinks.
5. Press the TEMP button.
Press TEMP
or TEMP
and change the digit until
you hear the sound of “beep”.
Si10-417.fm Page 9 Wednesday, September 22, 2004 6:38 PM
