Si10-417 Troubleshooting
Service Diagnosis 161
With AC Motor

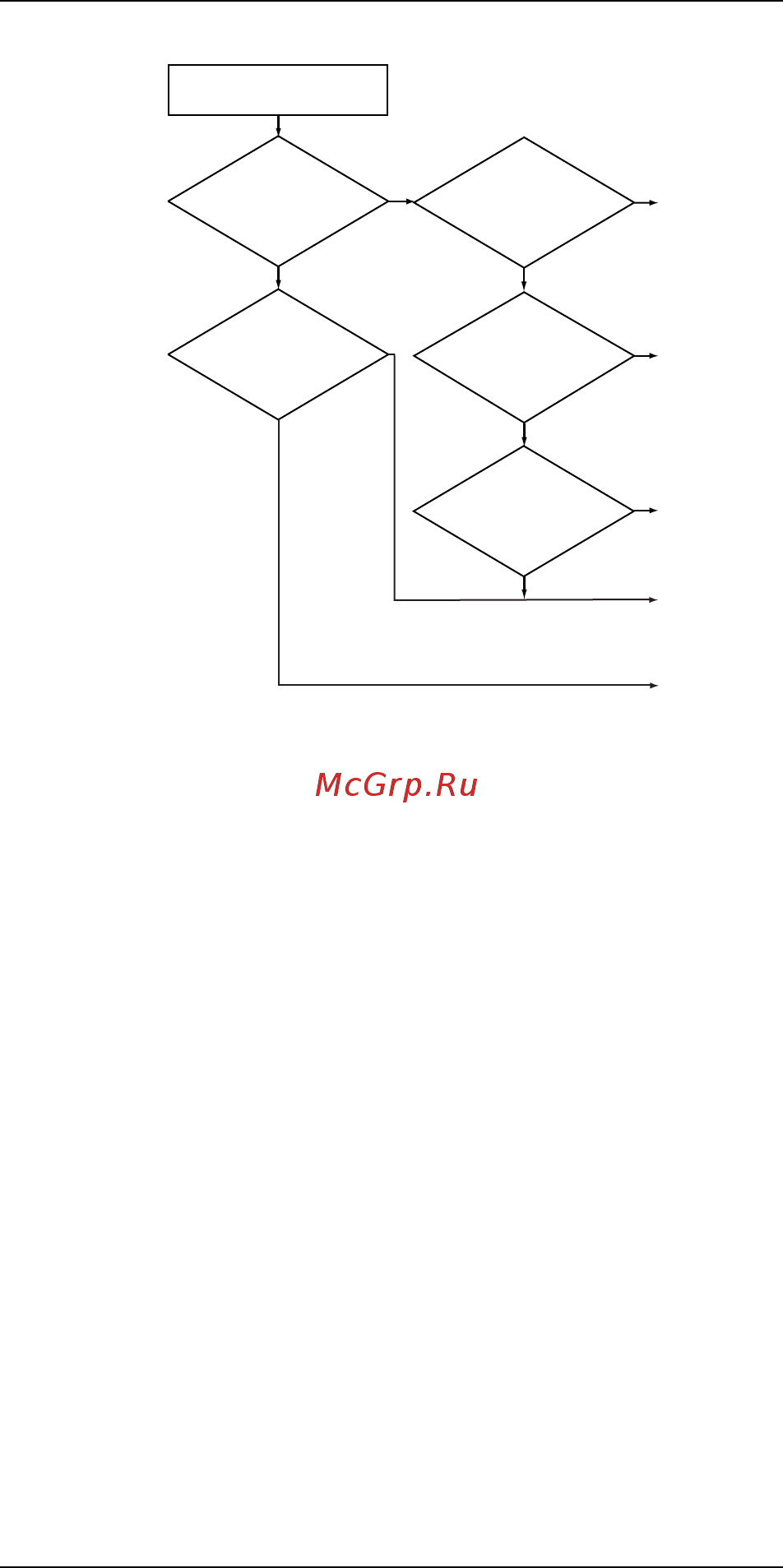

Check the
fan motor lead wire
connector for secure
connection.
Abnormal
YES
NO
NO
Continuity
Are the
resistance at connector
leads ∞? 1. red - black,
2. white -
black
Check the fan
capacitor for
continuity.
Does the
outdoor fan rotate?
Does
the outdoor unit fan
start just after the power
is turned on?
Check the outdoor fan
system.
YES
YES
NO
Normal
No continuity
Repair.
Replace the
fan motor.
Replace the
fan motor.
Replace the
outdoor unit
PCB.
The outdoor
fan system
is normal.
(R2670)
