Si04-604 Indoor Unit
Removal Procedure 119
3

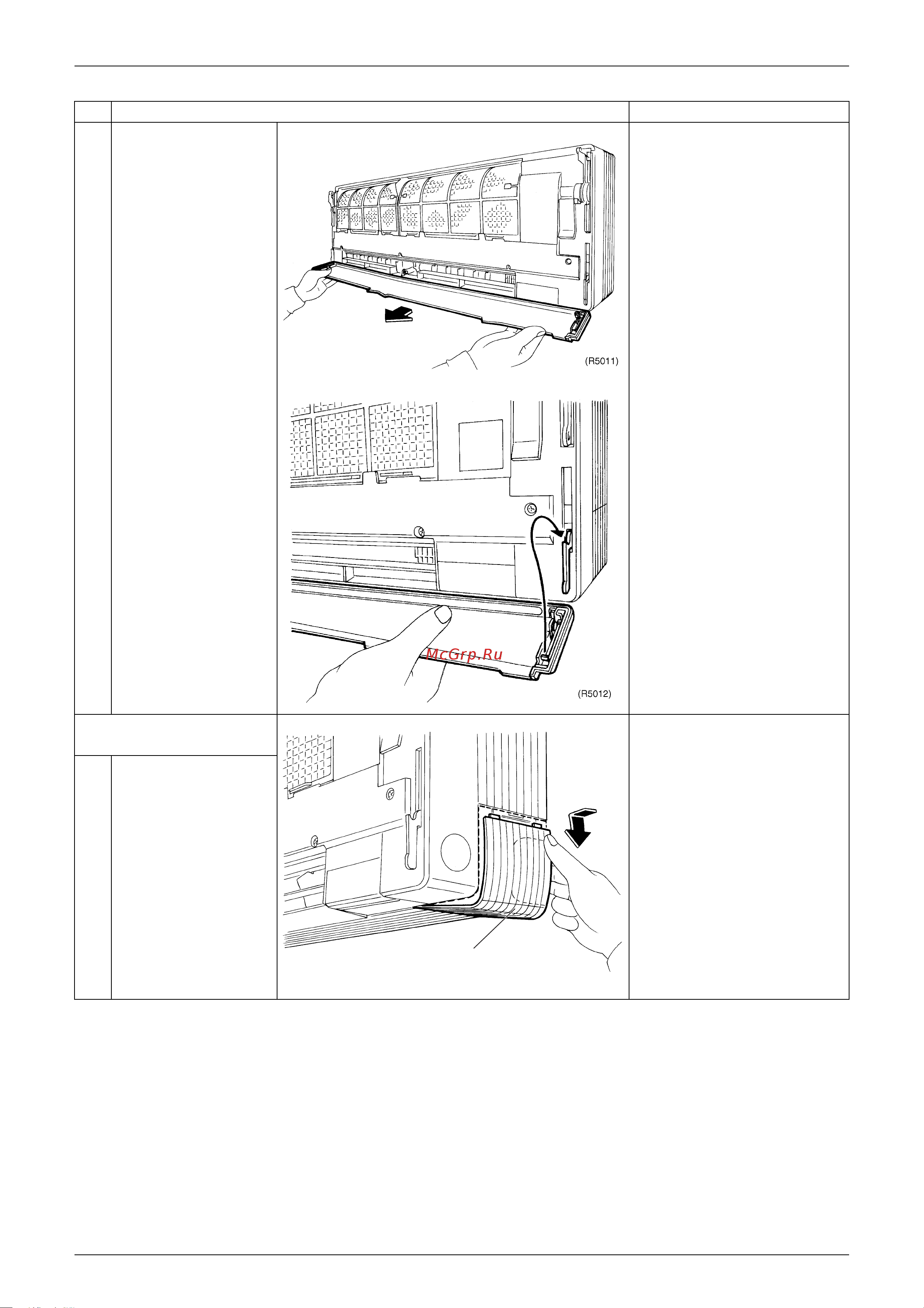

The slot-in panel is
fixed only at the both
ends.
4
When assembling, fit
the axes of the slot-in
panel from above.
Push the lower part of
the slot-in panel and
attach to the running
gear.
3. Remove the service
cover.
The service cover has no
screw.
Hooks can be caught from
either right side or lower
side.
1
Bend the service cover
inside and release the
hooks.
Step
Procedure Points
Service cover
(R5013)
