Si04-604 Printed Circuit Board Connector Wiring Diagram
Printed Circuit Board Connector Wiring Diagram 15

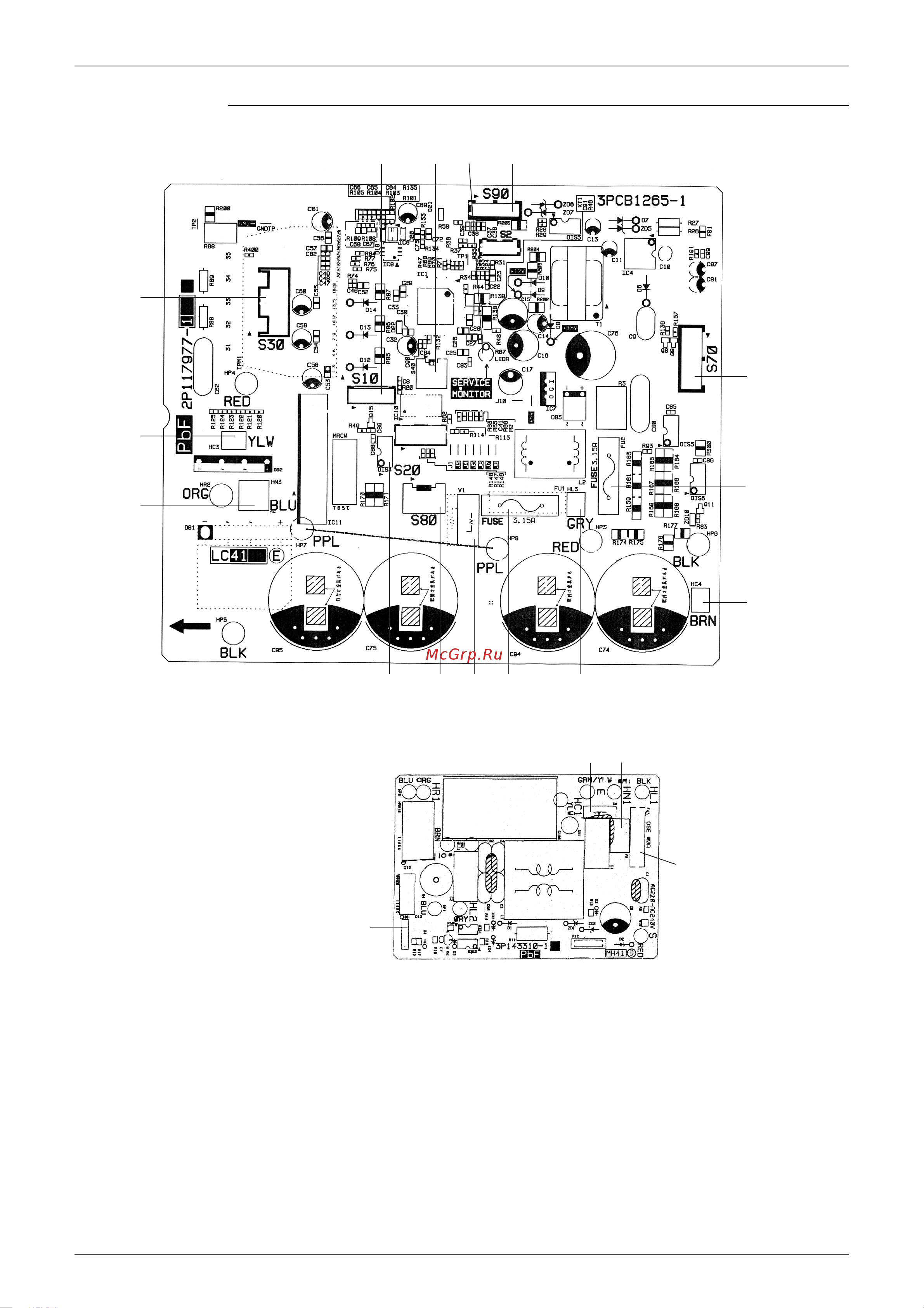

PCB Detail PCB(1): Control PCB (outdoor unit)
PCB(2): Filter PCB
FU2(3.15A)
S30
HN3
HC3
S70
HC4
(R4993)
S40 LED A S90
HL3FU1(3.15A)V1S80S20
S10
FU3(20A)
S11
(R4994)
V3 V2
