Daikin FTXG25EVMAW [140/200] Remove the reduction motor
![Daikin FTXG25EVMAW [140/200] Remove the reduction motor](/views2/1761913/page140/bg8c.png)
Si04-604 Indoor Unit
Removal Procedure 131

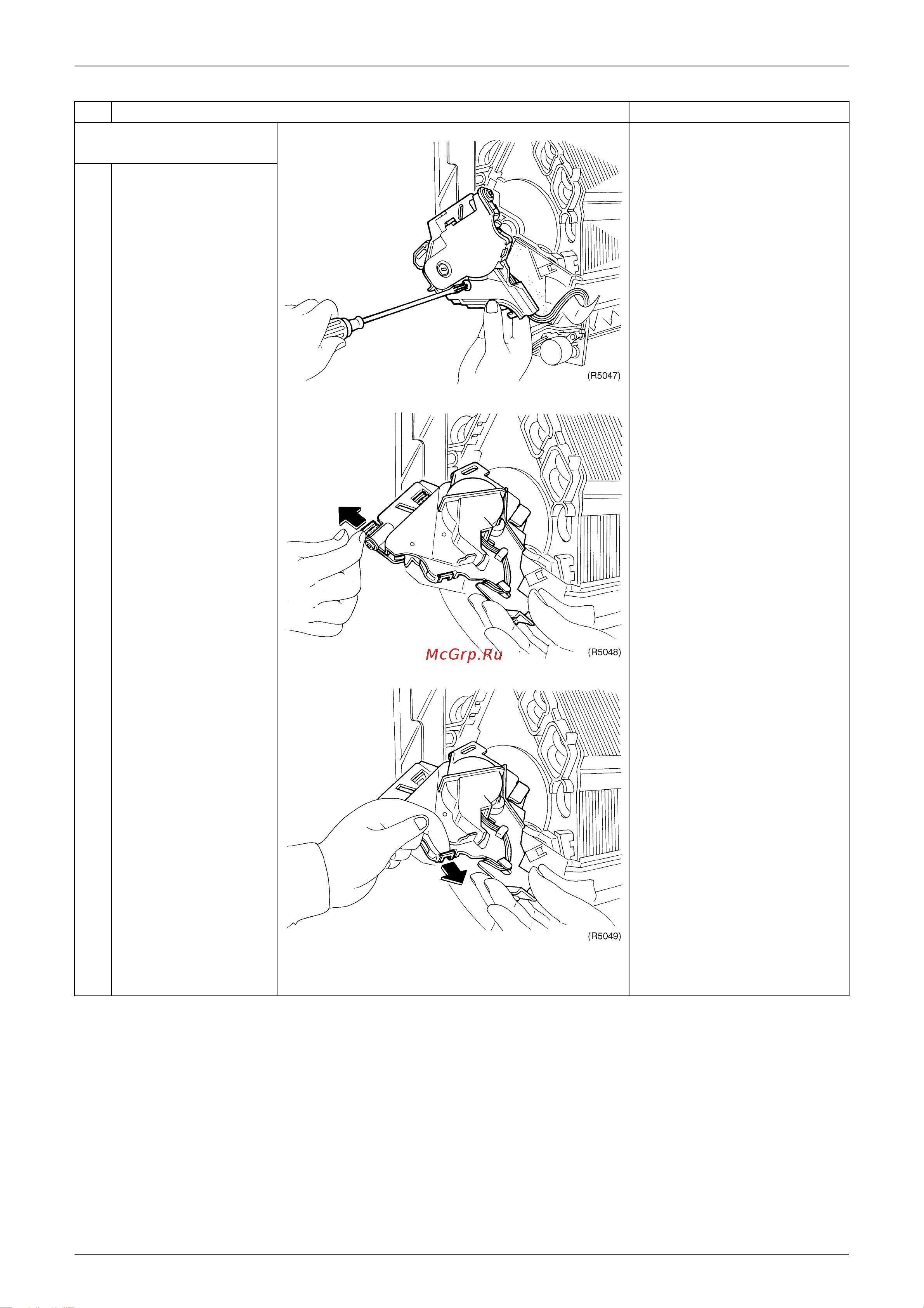

2. Remove the reduction
motor.
1
Loosen the screw.
2
Undo the one hook on
the opposite upper side.
3
Undo the one hook in
the center.
Step
Procedure Points
