Daikin FTXG25EVMAW [66/200] Adjusting the air flow direction
![Daikin FTXG25EVMAW [66/200] Adjusting the air flow direction](/views2/1761913/page66/bg42.png)
Si04-604 Instruction
System Configuration 57
2.5 Adjusting the Air Flow Detection
12
Adjusting the Air Flow Direction

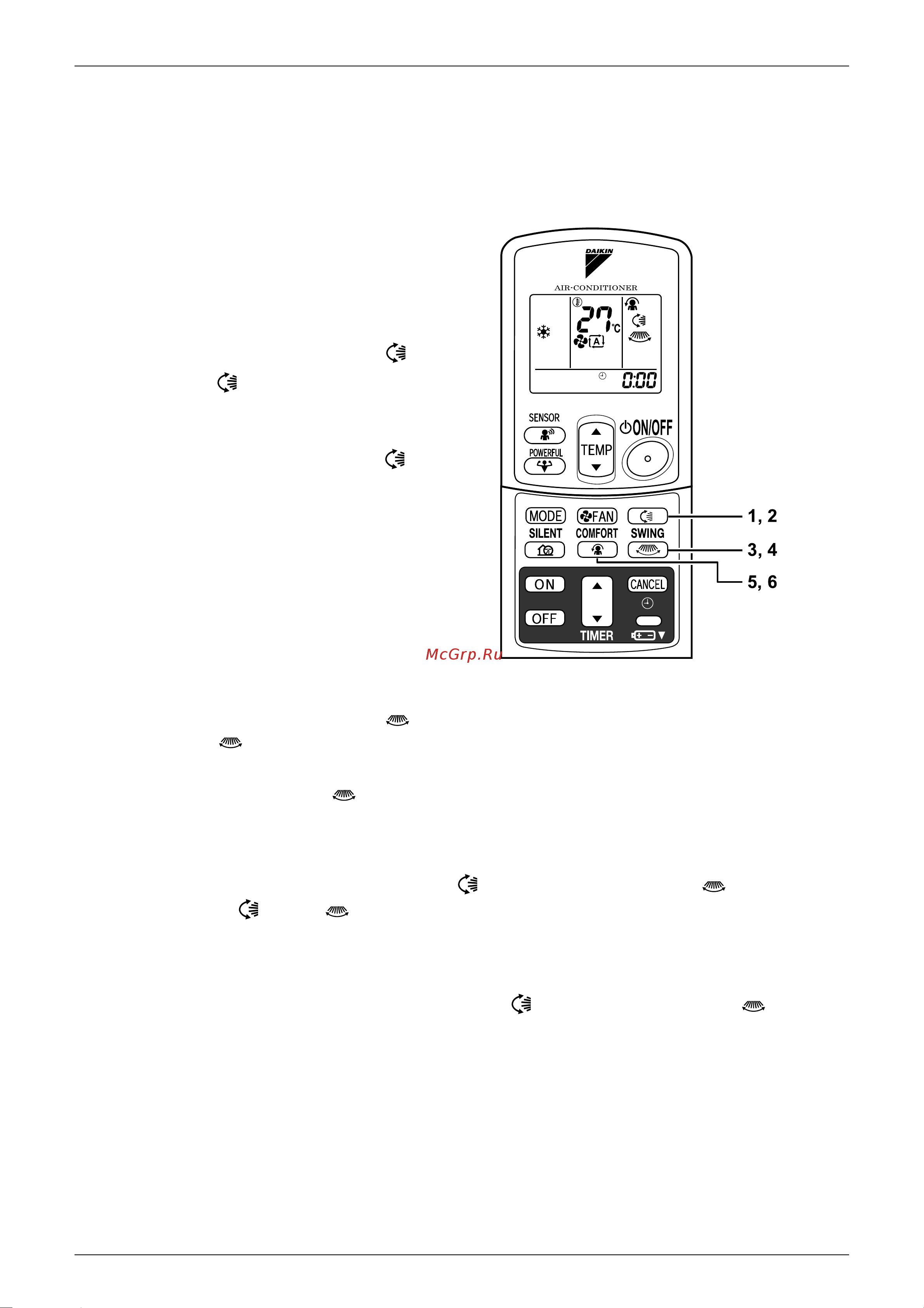

You can adjust the air flow direction to increase your
comfort.
To adjust the horizontal
blade (flap)
1. Press “SWING button ” .
• “ ” is displayed on the LCD.
2. When the flap has reached the
desired position,
press “SWING button ” once
more.
• The flap will stop moving.
To adjust the vertical
blades (louvers)
3. Press “SWING button ” .
• “ ” is displayed on the LCD.
4. When the louvers have reached the desired position, press the
“SWING button ” once more.
• The louvers will stop moving.
To 3-D Airflow
1. 3. Press the “SWING button ” and the “SWING button ” :
the “ ” and “ ” display will light up and the flap and louvers will
move in turn.
To cancel 3-D Airflow
2. 4. Press either the “SWING button ” or the “SWING button ” .
