Si04-604 Indoor Unit
Removal Procedure 123
4

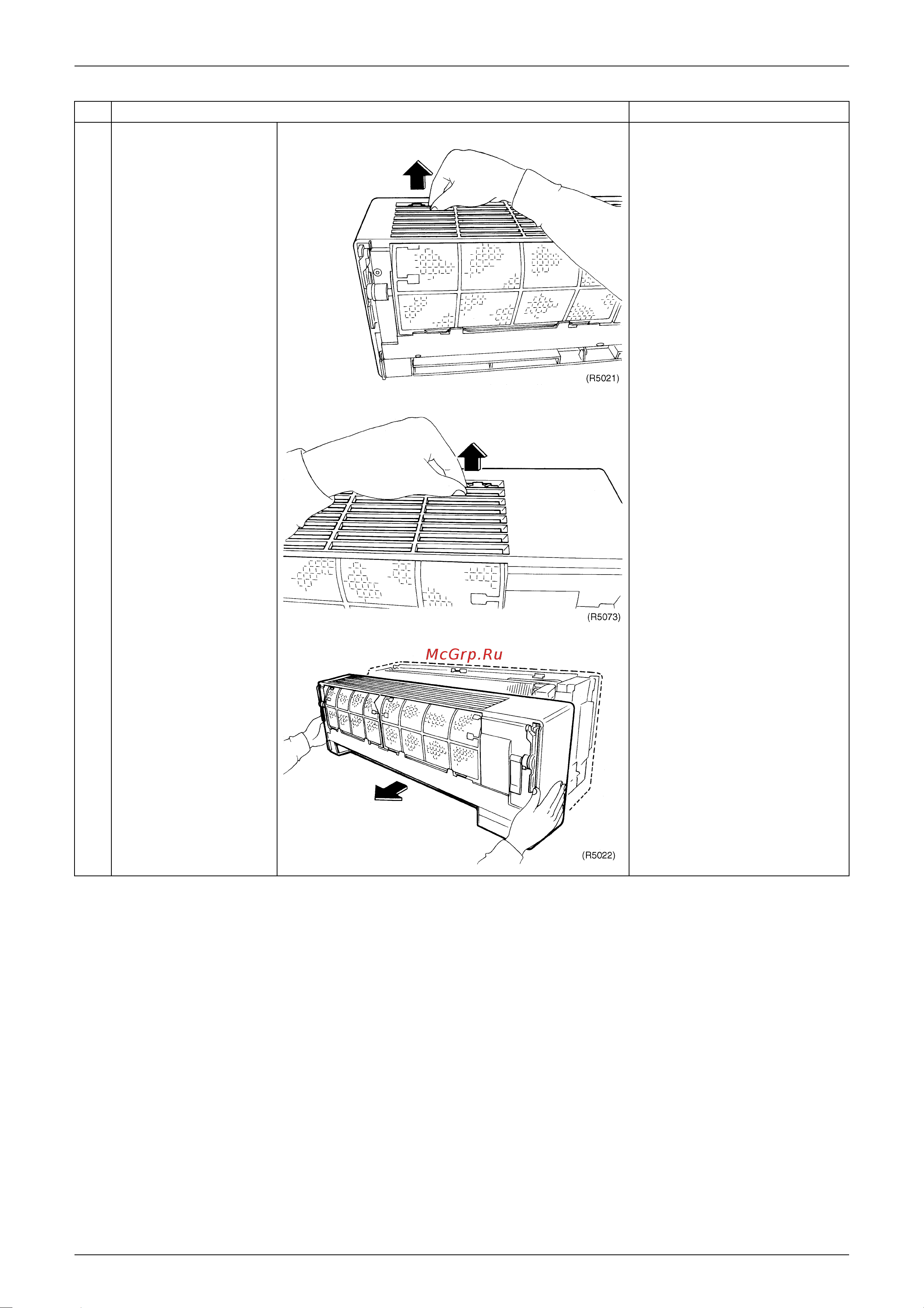

Release the both sides
hooks.
5
Pull the front grille out
horizontally and remove
it.
When assembling, install the
front grille horizontally so as
not to stuff the flap inside.
When assembling, make
sure the three hooks are
caught properly.
Step
Procedure Points
