Si04-604 Indoor Unit
Removal Procedure 129

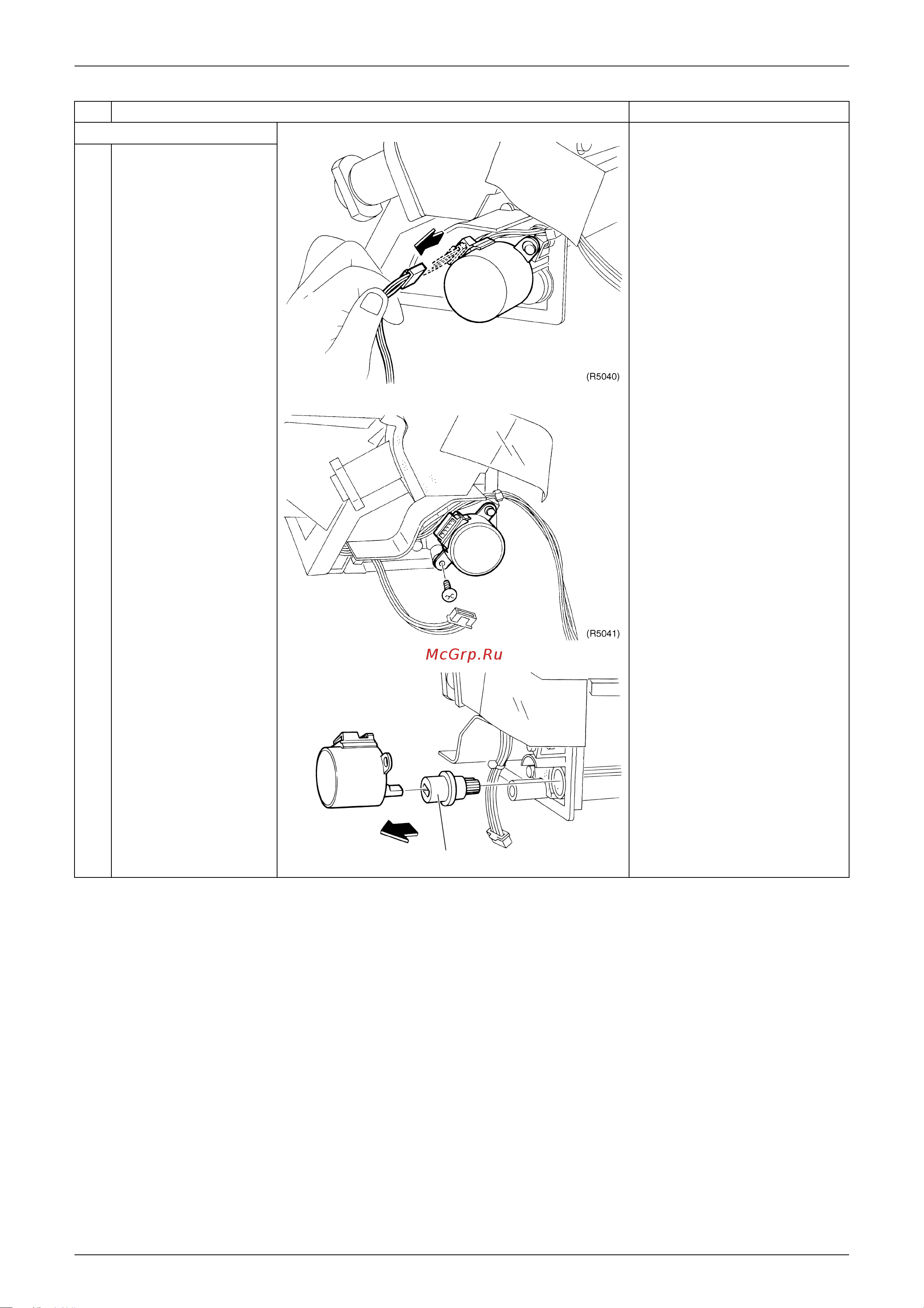

2. Remove the swing motor.
The swing motor for
horizontal blade is on the left
side.
1
Pull out and remove the
swing motor connector.
2
Loosen the screw.
3
Pull toward left and
remove the swing
motor.
The axis has a keyhole.
Step
Procedure Points
axis
(R5042)
