Si04-604 Indoor Unit

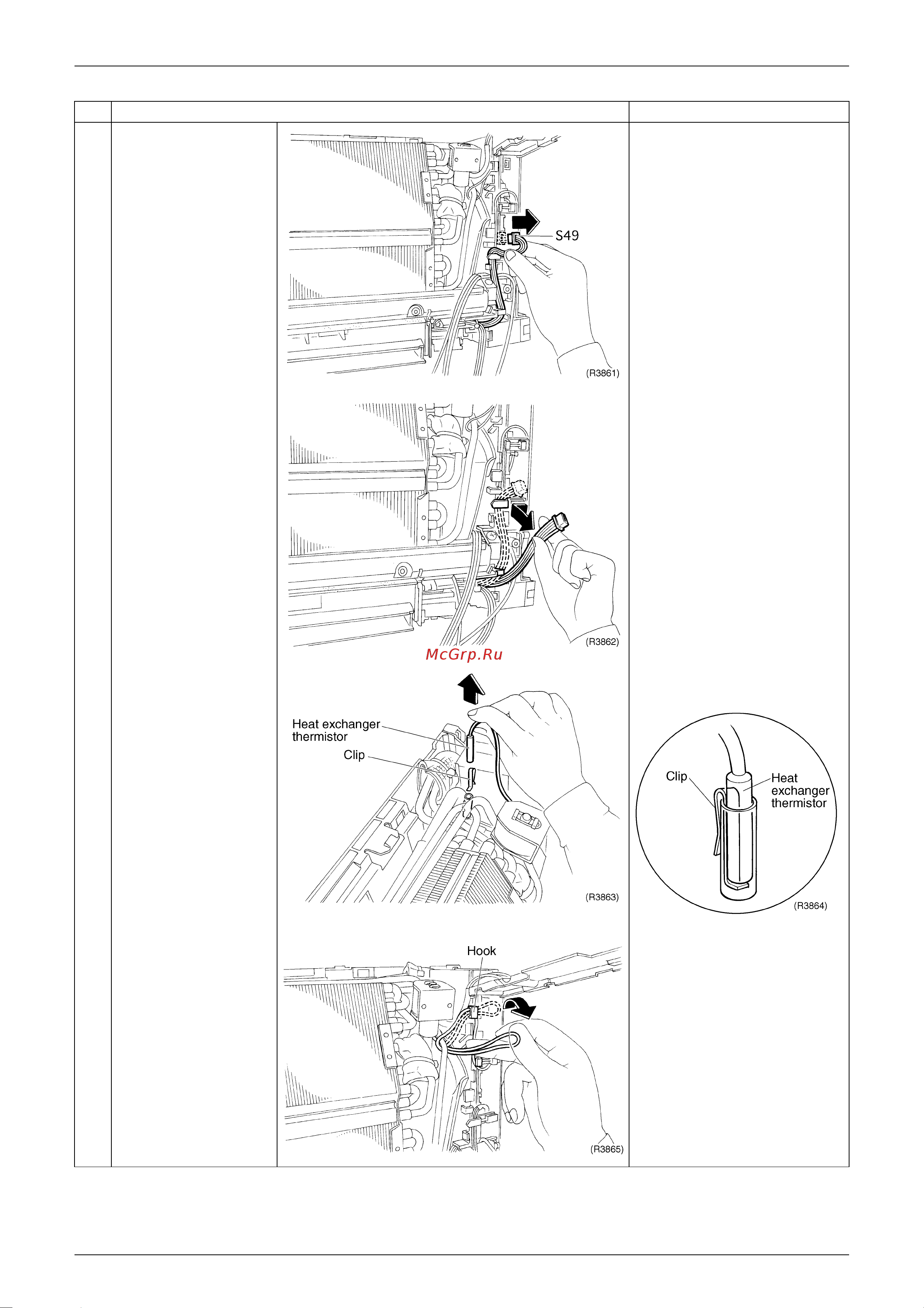

Removal Procedure 141
10
Disconnect the
connector for the
reduction motor (front
panel mechanism)
(S49).
11
Release the harness
from the hook.
12
Release the heat
exchanger thermistor.
Pay attention so as not to
lose the clip.
13
Release the thermistor
lead wire from the hook.
When reassembling, hang
the excessive lead wire of
the heat exchanger
thermistor on the hook.
Step
Procedure Points
