Si04-604 Indoor Unit
Removal Procedure 151

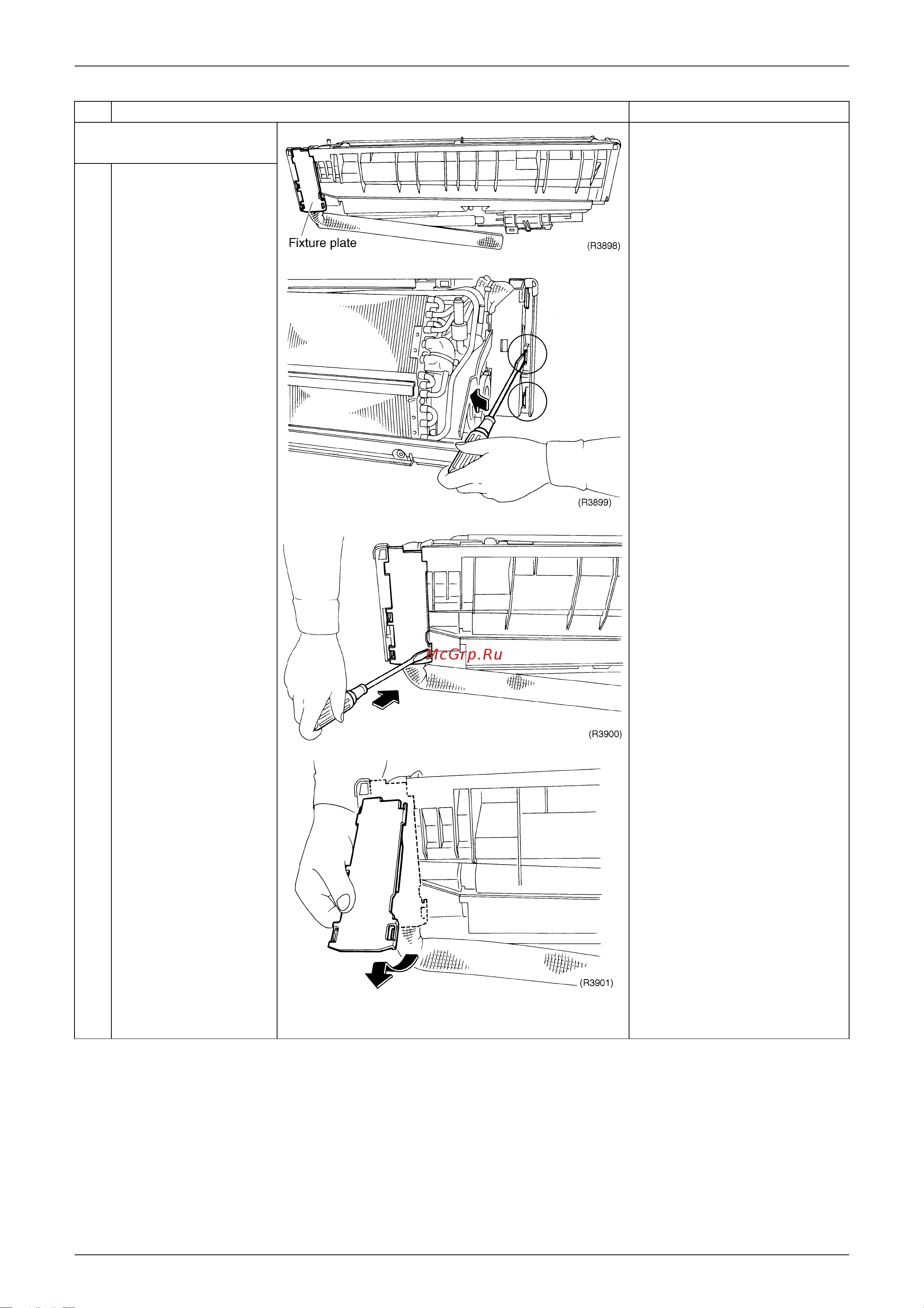

3. Remove the piping fixture
plate.
1
Release the 2 hooks
with a flat screwdriver
from the front side.
2
Release the hook from
the back side.
Lift up the lower part of
the fixture plate and
remove it.
Step
Procedure Points
