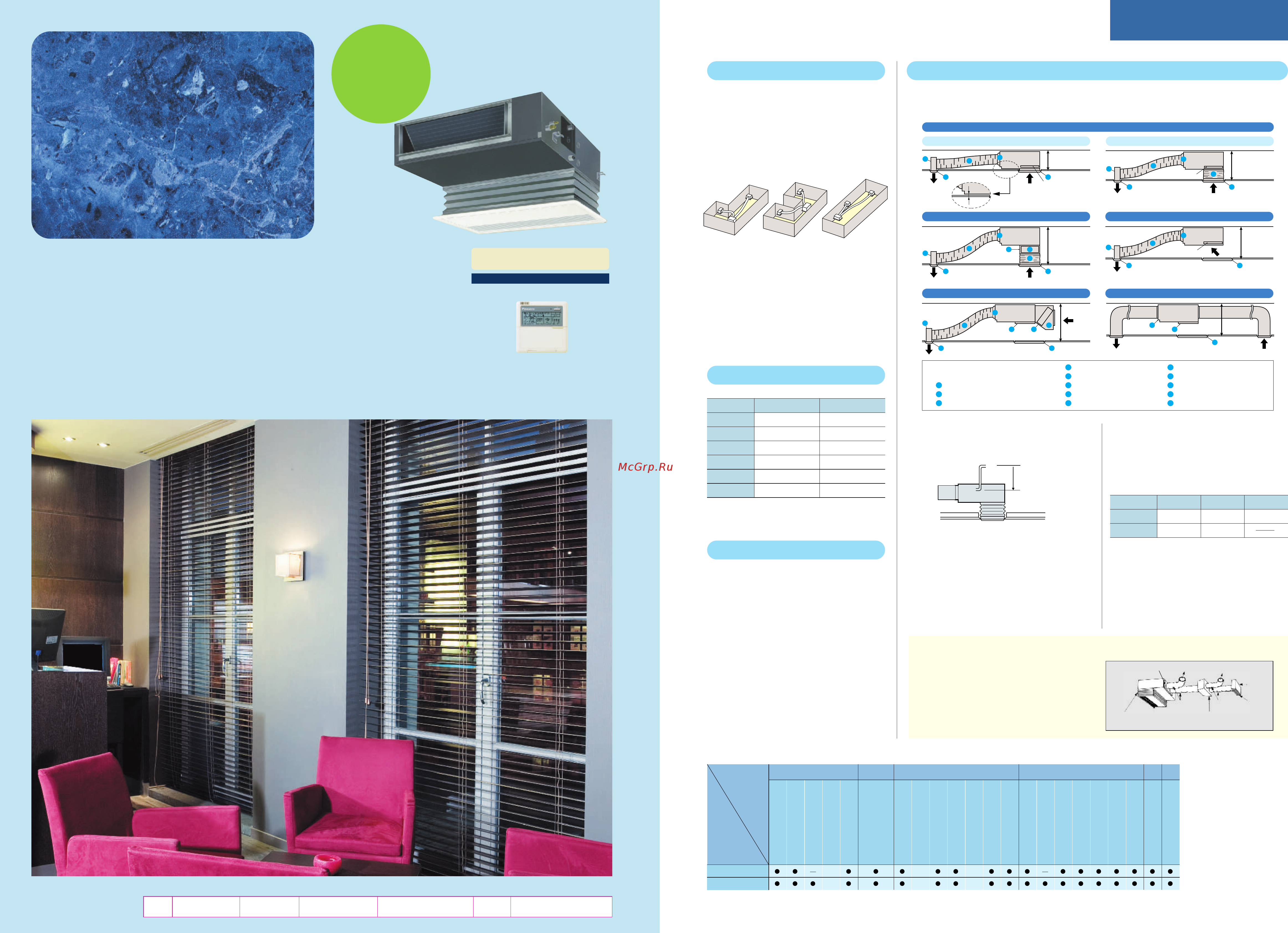

21
Guide Line up
P. 3–4, 7–8
Outdoor units
P. 33–34
Options
P. 58
Outer dimension drawings
P. 62
Remote controllers
P. 35–36
Standard specifications
P. 41, 51
Clever and compact
mini ducted unit provides
comfort and flexibility.
Note: R emote controller c able not
included. C ables must be proc ured
locally.
BRC1C61
Flexibly adapts to shop interiors
To cope with the challenges of L-
shaped or U-shaped spaces, it is pos-
sible to install the air discharge unit
away from the main unit. At the same
time, different types of architectural
space can be kept comfortable.
Drain pump is equipped as
standard accessory with
250
mm
lift.
External static pressure can be
set depending on duct length,
presence of high-efficiency filter,
and other installation conditions.
The indoor unit can be installed in rooms with as little as 350 mm between the drop
ceiling and ceiling slab. It also works with both flexible and ordinary ducts.
Quiet operation
Meets diverse of installation needs
Switchable fan speed: High/Low
Programme "Dry"
Low gas pressure detection
Insufficient gas charging is normally
hard to detect. During post-installation
trials and regular inspection procedures,
the refrigerant level is monitored by
microprocessor to maintain proper gas
pressure.
Dehumidification is microprocessor con-
trolled to prevent abrupt and uncomfort-
able changes in air temperature.
Indoor unit High Low
71F
41 35
100F
41 35
125F
44 38
60F
41 35
45F
39 34
35F
38 32
High Standard
78
Indoor unit
External static pressure pattern
35F–71F 39 20
98
100F and 125F
39
Easier to maintain
Long-life filter lasts about 1 year *
Maintenance not required
* For dust concentration of 0.15 mg/m
3
L-shaped space U-shaped space Long space
1
3
7
1
1
1
2
3
3
4
8
9
79
11
5 10
4
6
5
Air conditioner
Long-life filter
Air blow
Air intake
425 mm or more
4
6
5
2
2
Air conditioner
Long-life filter
Air blow
Air intake
350 mm or more
S t a nda rd ins ta lla ti o n e x a m pl e s
W it h hig h -e ff ic ie nc y fi lte r C e il ing r e t u r n
In crawl space
With canvas bellows and air intake panel (sold separately)
45 mm
4
6
5
Air conditioner
Long-life filter
Air blow
Air intake
450 mm or more
8
Air conditioner
Ordinary duc t
(procured loc ally)
Ordinary duc t
(procured loc ally)
Air blow
Air intake
460 mm or more
8
Air intake
C e il ing r e t u r n w i t h h i g h -e ff ic ie nc y fi lte r
W it h ordin a ry du c ts
4
6
5
Air conditioner
Air blow
Air intake
540 mm or more
13
9
4
6
5
Air conditioner
Air blow
540 mm or more
Options
Air discharge opening adapter
Decorative panel
Canvas bellows and air intake panel
Flexible duct
Air discharge grille Air discharge opening flange
Rear intake blocking pad
6
7
8
Air discharge chamber
Inspection panel
High-performance filter
11
12
13
Low-draft filter chamber
Branch duct
Rear intake filter chamber
10
11
22
2
Low
External static pressure is set to standard when the unit is shipped from the factory.
Options have also been upgraded to make
installation even easier.
H igh -e ffic i e nc y filt e r ( o ptio n )
Available in two types: 65% and 90% colorime-
try. This filter easily meets dust collection effi-
ciency regulations specified in building codes.
Canvas bellows
and air Intake panel
Flexible duct
(dia. 200 mm)
Flexible duct
(dia. 150 mm)
Branch duct
Air
discharge
grille
Air
discharge
chamber
Air discharge opening adapter
Decorative panel
CEILING MOUNTED BUILT-IN TYPE
Fresh air intake possible
(Custom installation required with locally
procured materials)
A duct can be connected to the rear of
the indoor unit to draw in outdoor air.
Note: The maximum duc t length for connec tion to the fresh air
intake kit is 5 m. C onnec ting ducts, ins ect nets, fire
dampers , air filters , and other parts s hould, as required,
250 mm
22
Wired LCD remote controller
Accessory required for indoor unit
(option)
CEILING MOUNTED
BUILT-IN TYPE
FH
(
Y
)
B
FH(Y)B35FV1–125FV1Cooling only
FHYB35FV1–125FV1Heat pump
Features (Features are explained on P. 37–38.)
Feature
Model
Heat pump
Cooling only
*
1
Applicable to R71LU– R 125LU outdoor units (for temp. down to – 15°C ) (An option is required.)
*
2
Applicable to RY71LU– R Y125LU outdoor units (for temp. down to – 5°C )
*
3
Applicable to R(Y)71LU– 125LU outdoor units
Mould
prevention
Comfort Work & Servicing Control features
Option Others
S witchable fan speed
Programme "Dry"
Hot start
Year-round c ooling
applicable
Timer s elec tor
Drain pump mechanis m
Pre charged for
up to 30 m
Long-life filter
Mould resis tant
treatment for filter
Filter s ign
Low gas press ure
detec tion
E mergenc y operation
S elf-diagnosis func tion
High-efficienc y filter
PE fin
C ontrol by 2 remote
controllers
Auto-c ooling/heating
change-over
Auto-res tart
C ontrol by 1 remote
controller
E xternal c ommand
control
C entral remote
control
Interloc k c ontrol
*3
*3
*3
*3
*2
*1
Note : Anechoic c hamber conversion value,
measured ac cording to J IS parameters and
41
/
35
dB(A)
FHYB71F
High Low
Sound level
dB(A)
(Pa)
