Installation should be carried out according to the instructions by a professionally qualified
person.
The manufacturer declines all responsibility for any damage to persons, animals or things due
to a wrong installation.
INSTALLING THE APPLIANCE
For the most efficient air circulation, the oven should be fitted according to the dimensions shown in
fig. 2.
FITTING THE APPLIANCE
Fit the appliance into its surround (beneath a work-top or above another appliance) by inserting screws
into the 2 holes that can be seen in the frame of the oven when the door is open (fig. 2).
IMPORTANT
The panels of the adjoining furniture should be heat resistant. Particularly when the adjoining furniture
is made of veneered wood, the adhesives should be able to withstand a temperature of 100°C.
Plastic materials or adhesive which cannot withstand this temperature will become deformed or unstuck.
To comply with safety regulations, once the appliance has been fitted it should not be possible to make
contact with the electrical parts.
All parts which offer protection should be fixed in such a way that they cannot be removed without the
use of a tool.
After removing the appliance from the packaging, make sure that it is undamaged and that the electrical
lead is in perfect condition. Otherwise, contact your dealer before putting the appliance into operation.
IMPORTANT
Be careful not to leave the packing materials (plastic sheeting, expanded polystyrene etc.)
where children can get at them, as they can be dangerous.

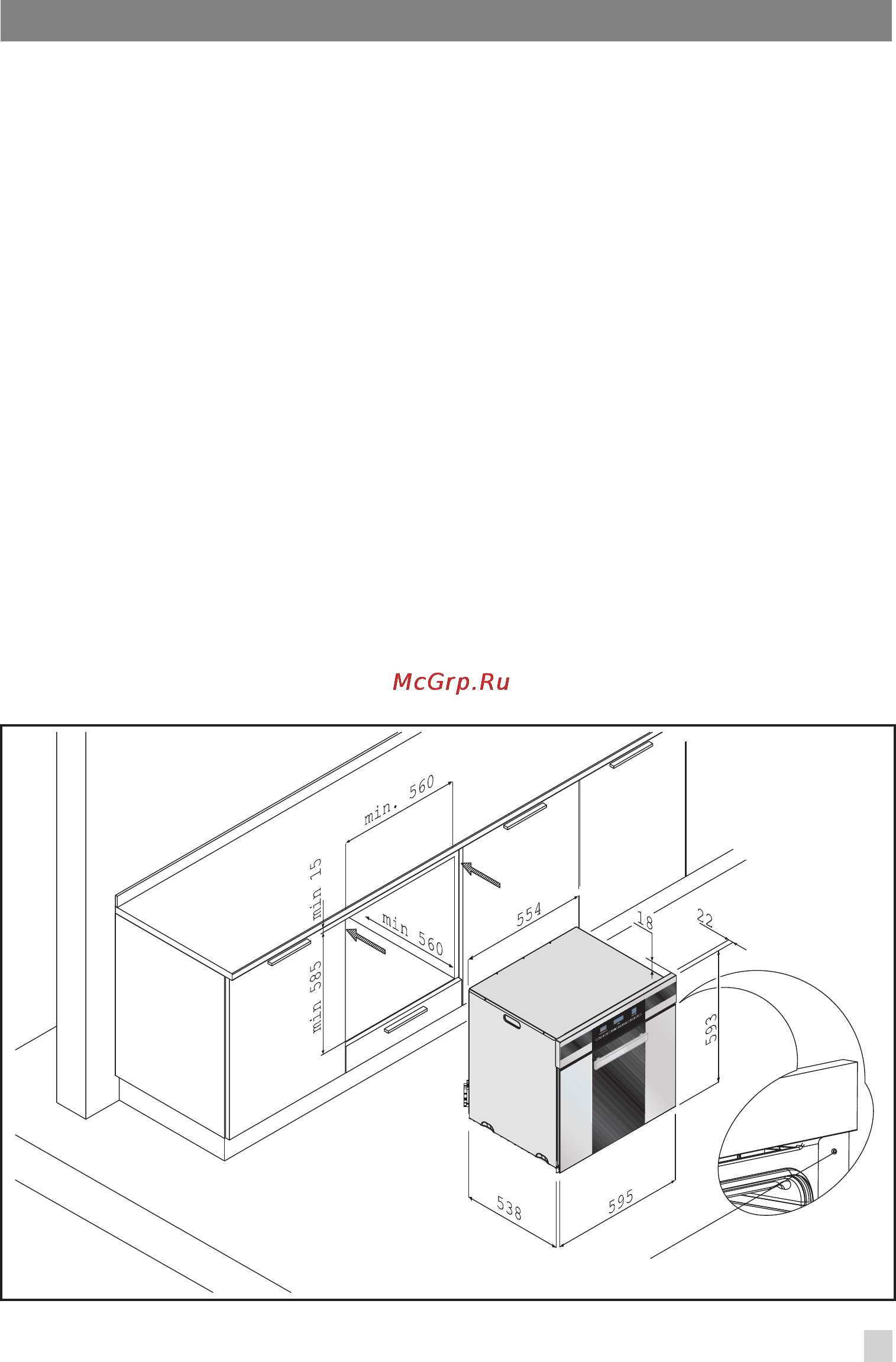

fig. 2
INSTALLATION
screw
screw
Screws fitting
27
