ELECTRICAL CONNECTION
Electric connection has to be done according to rules and law provisions in force.
Before doing the connection, check the following:
- The electric power and sockets are suitable to maximum power of the oven. (See data plate on the
appliance).
- WARNING: THIS APPLIANCE MUST BE EARTHED.
The appliances electrical safety can only be guaranteed when it has been correctly connected to
a properly earthed power supply, as laid down in the regulations for electrical safety.
Important: the manufacturer cannot be held responsible for any damage to persons or objects due
to the lack of an earth connection.
- Never use reducers, adaptors or branches for connections.
CONNECTING OF SUPPLY CABLE
If apparatus is not fitted with feeding cable, use cable Mod. H05RR-F 3 x 1.5 sq. mm. stating suitable
section of the cable which has to be connected to terminal.
To obtain that you have to:
- Connect the supply cable to the terminal strip of the oven (fig. 3), keeping the earth wire 3 cm. longer
than the active conductors (live/neutral) .
- Connect cables wires as follows:
L = (live) brown or red wire
N = (neutral) blue wire
= (earth) yellow - green wire.
N.B. supplys cable temperature should never reach a temperature 50°C above the room
temperature in any point.
Connection to normal socket
Connect feeding cable a normal plug suitable to the load stated on data plate.
When the cooker has been built-in household check that the plug is accesible.
Direct connection to electric supply
If an appliance is not equipped with supply cable and plug,
the power supply must be fitted with a
disconnect switch in which the distance between contacts permits total disconnection in accordance
with overvoltage category III, as required by installation regulations.
The yellow/green earth wire should not be controlled by the switch.
.
ATTENTION: If the supply cable is damaged, it must be replaced by the manufacturer or by his after-
sales service, or by a similar qualified person, in order to prevent any risk.

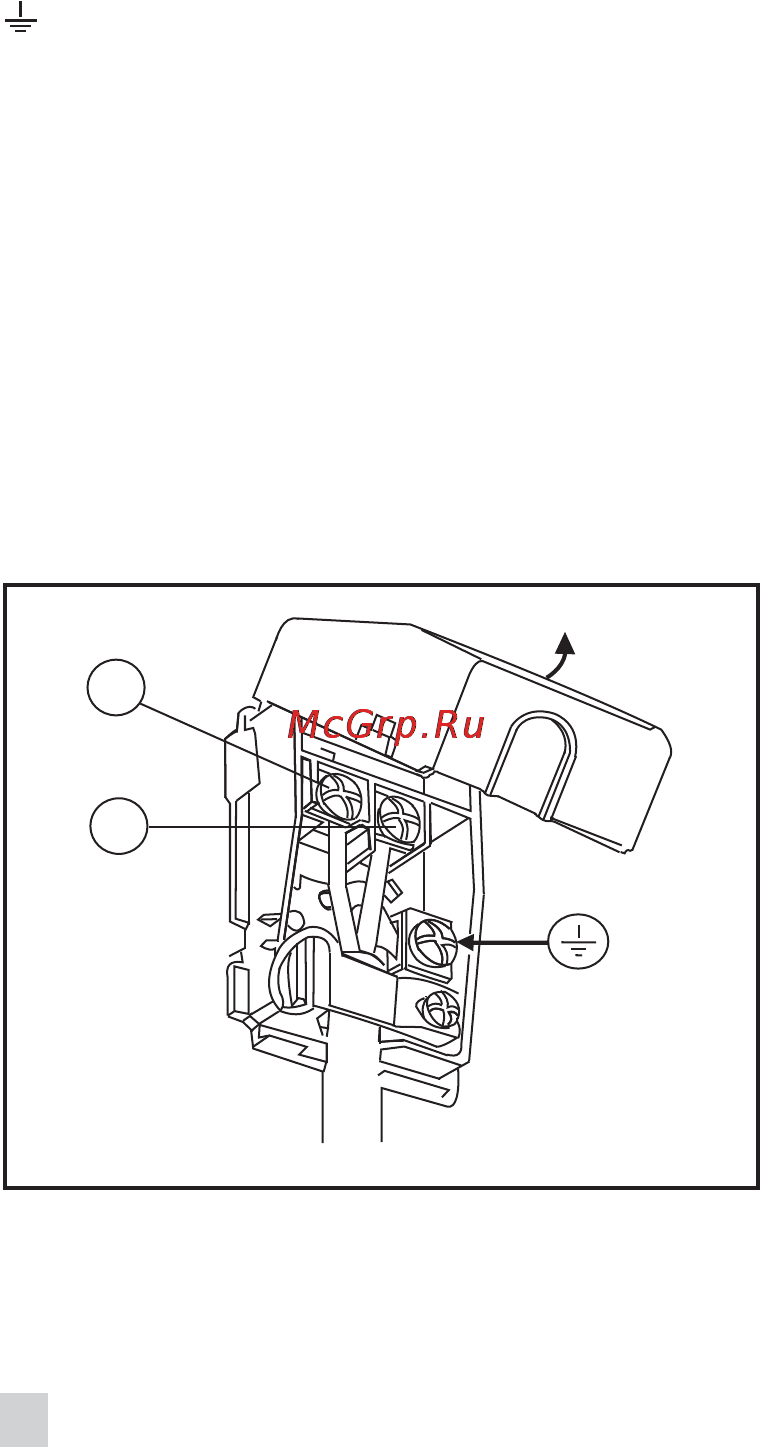

fig. 3
28
