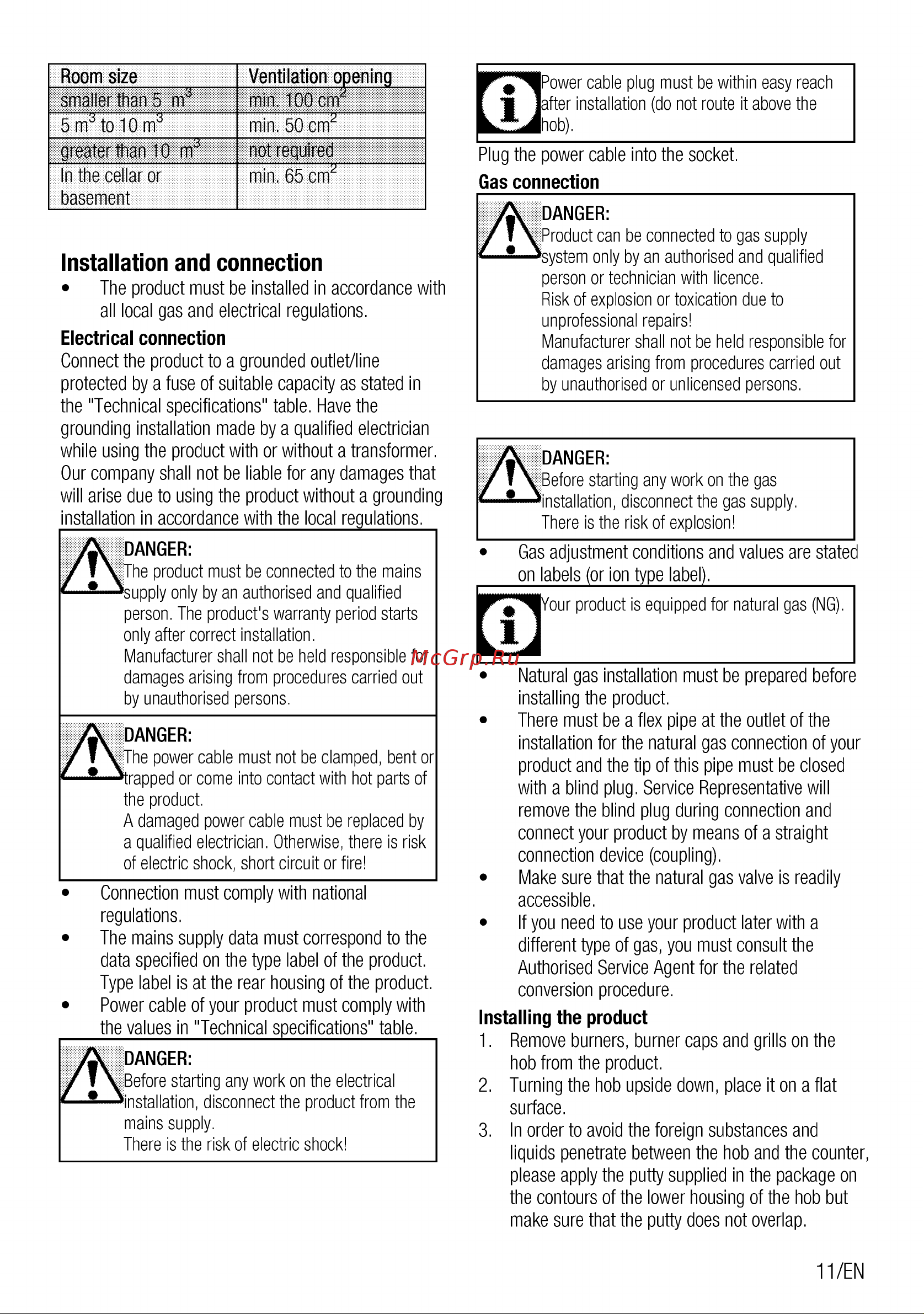

Room size smaller than 5 m3 5 m3to 10 m3 greater than 10 In the cellar or basement Ventilation opening mln 100 cm3 min 50 cm2 not required min 65 cm Installation and connection The product must be installed in accordance with all local gas and electrical regulations Electrical connection Connect the product to a grounded outlet line protected by a fuse of suitable capacity as stated in the Technical specifications table Have the grounding installation made by a qualified electrician while using the product with or without a transformer Our company shall not be liable for any damages that will arise due to using the product without a grounding installation in accordance with the local regulations DANGER The product must be connected to the mains supply only by an authorised and qualified person The product s warranty period starts only after correct installation Manufacturer shall not be held responsible for damages arising from procedures carried out by unauthorised persons B DANGER The power cable must not be clamped bent or trapped or come into contact with hot parts of the product A damaged power cable must be replaced by a qualified electrician Otherwise there is risk of electric shock short circuit or fire Connection must comply with national regulations The mains supply data must correspond to the data specified on the type label of the product Type label is at the rear housing of the product Power cable of your product must comply with the values in Technical specifications table DANGER Before starting any work on the electrical installation disconnect the product from the mains supply There is the risk of electric shock H ower cable plug must be within easy reach fter installation do not route it above the ob E 9 Plug the power cable into the socket Gas connection DANGER Product can be connected to gas supply system only by an authorised and qualified person or technician with licence Risk of explosion or toxication due to unprofessional repairs Manufacturer shall not be held responsible for damages arising from procedures carried out by unauthorised or unlicensed persons DANGER Before starting any work on the gas installation disconnect the gas supply There is the risk of explosion H m Gas adjustment conditions and values are stated on labels or ion type label our product is equipped for natural gas NG Natural gas installation must be prepared before installing the product There must be a flex pipe at the outlet of the installation for the natural gas connection of your product and the tip of this pipe must be closed with a blind plug Service Representative will remove the blind plug during connection and connect your product by means of a straight connection device coupling Make sure that the natural gas valve is readily accessible If you need to use your product later with a different type of gas you must consult the Authorised Service Agent for the related conversion procedure Installing the product 1 Remove burners burner caps and grills on the hob from the product 2 Turning the hob upside down place it on a flat surface 3 In order to avoid the foreign substances and liquids penetrate between the hob and the counter please apply the putty supplied in the package on the contours of the lower housing of the hob but make sure that the putty does not overlap 11 EN
