5-55
ASUS RS720A-E11-RS24U
Enable AER Cap [Auto]
This item allows you to enable or disable Advanced Error Reporting Capability.
Configuration options: [Enable] [Disabled] [Auto
Enable Rcv Err and Bad TLP Mask [Auto]
This item allows you to enable or disable Masking of Receiver Error and Bad TLP at Gen4
x2.
Configuration options: [Enable] [Disabled] [Auto]]
Early Link Speed [Auto]
This item allows you to set Early Link Speed.
Configuration options: [Auto] [Gen1] [Gen2]
Hot Plug Handling mode [Auto]
This item allows you to control the Hot Plug Handling mode.
Configuration options: [A0 Mode] [OS First (No Error Handling)] [OS First (Error Handling -
Not Implemented)] [Firmware First (Not Implemented)] [Auto]
Presence Detect Select mode [Auto]
This item allows you to control the Presence Detect Select mode.
Configuration options: [OR] [AND] [Auto]
Loopback Mode [Auto]
This item allows you to enable or disable PCIe Loopback Mode.
Configuration options: [Auto] [Disabled] [Enabled]
CV test [Auto]
Set this to [Enabled] to support running PCIECV tool. Selecting [Auto] will preserve h/w
defaults.
Configuration options: [Auto] [Disabled] [Enabled]
NTB Enable [Auto]
This item allows you to enable or disable NTB.
Configuration options: [Auto] [Enable]
The following item appears only when you set NTB Enable to [Enable].
NTB Location [Auto]
Configuration options: [Auto] [Socket0-Die0] [Socket0-Die1] [Socket0-Die2] [Socket0-Die3]
[Socket1-Die0] [Socket1-Die1] [Socket1-Die2] [Socket1-Die3]

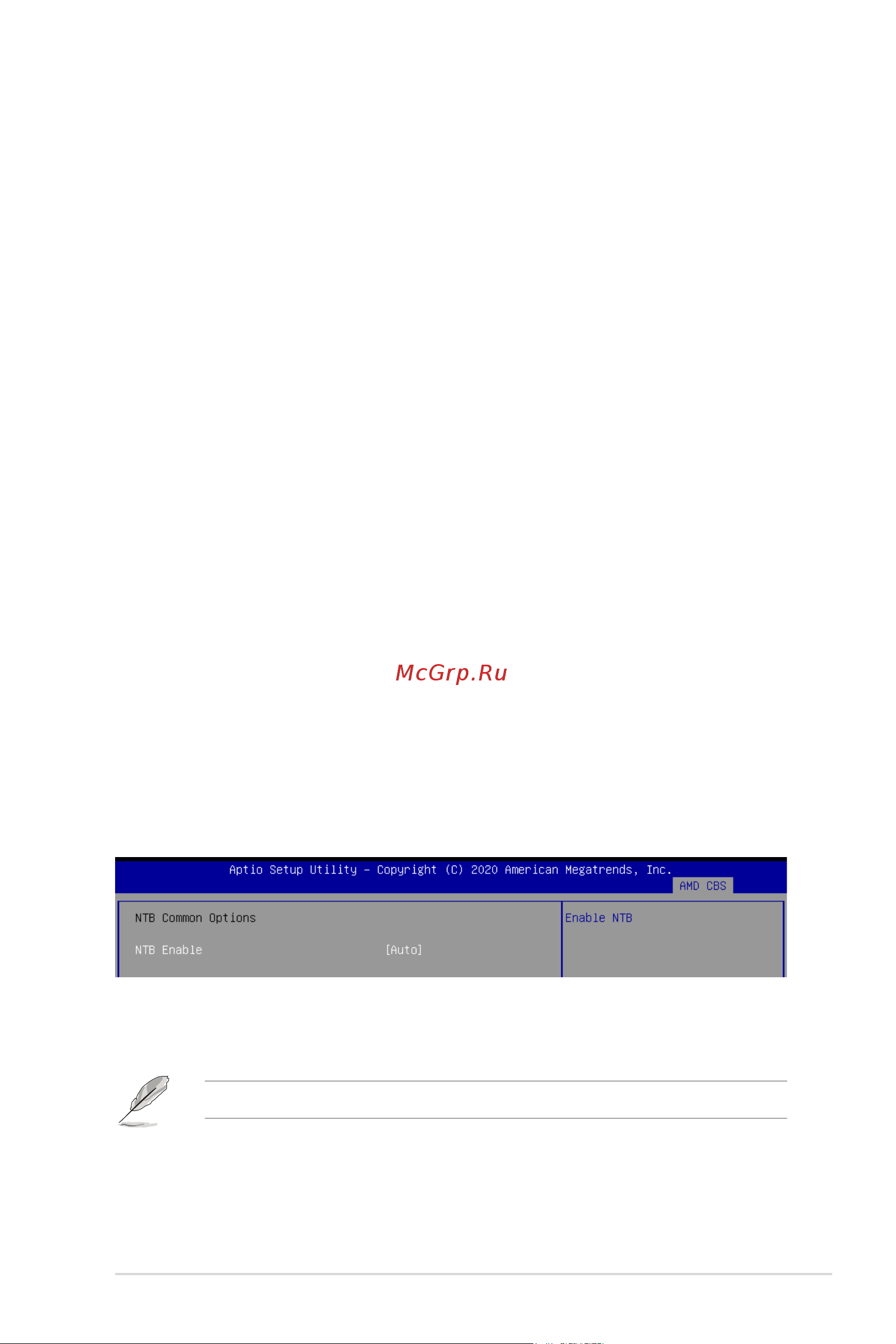

5.11.5 NTB Common Options
