Asus RS720A-E11-RS24U [21/192] Lan rj 45 leds

ASUS RS720A-E11-RS24U

1-11

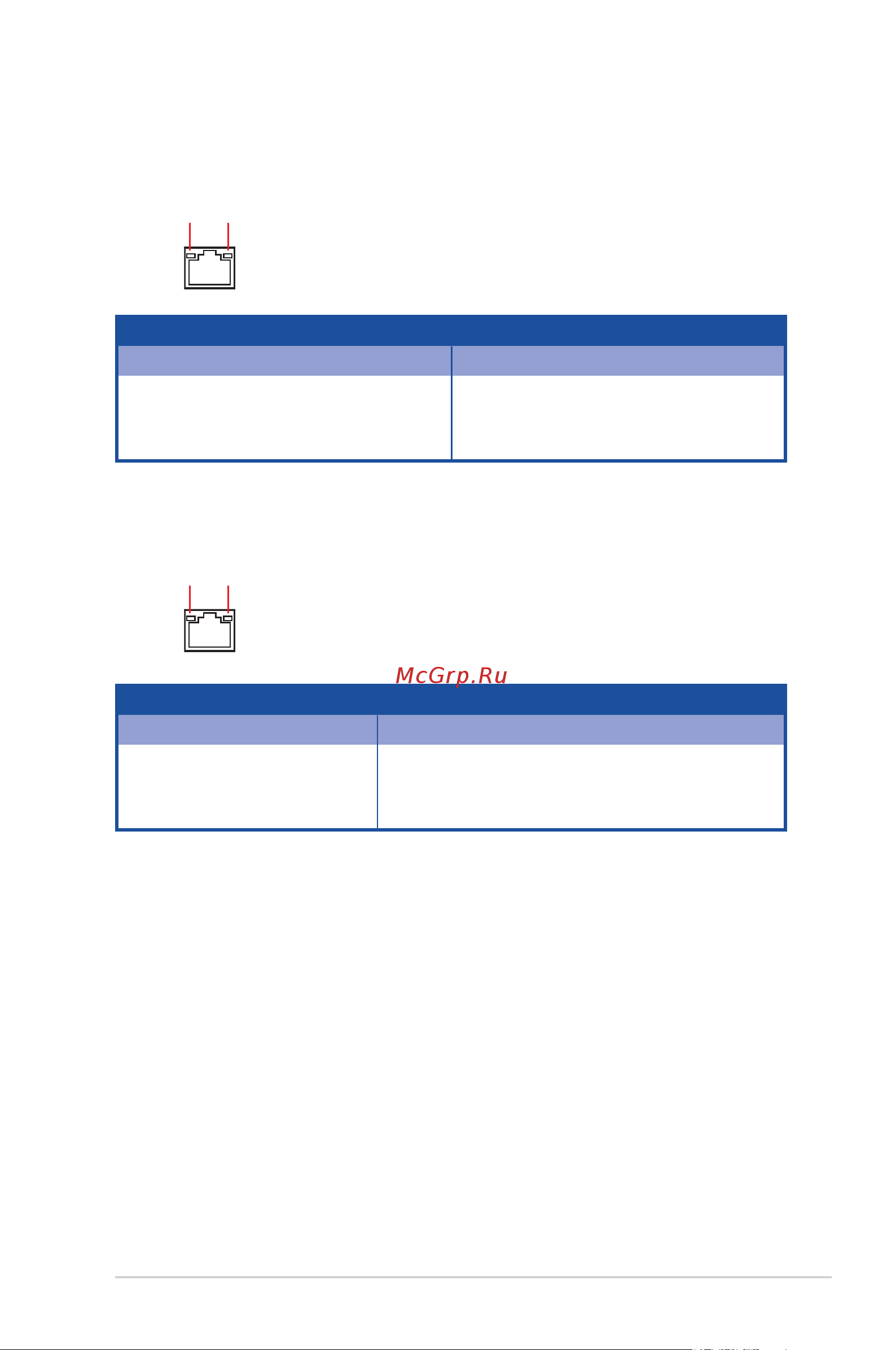

1.7.3 LAN (RJ-45) LEDs

ACT/LINK LED SPEED LED

Status Description Status Description

OFF No link OFF 10 Mbps connection

GREEN Linked ORANGE 100 Mbps connection

BLINKING Data activity GREEN 1 Gbps connection

ACT/LINK LED SPEED LED

Status Description Status Description

OFF No link OFF 10 Mbps / 100 Mbps connection

GREEN Linked ORANGE 1 Gbps connection

BLINKING Data activity GREEN 10 Gbps connection

ACT/LINK LED SPEED LED

Intel

X710-AT2 Gigabit 10G LAN port LEDs

Intel

I350-AM4 1G LAN port LEDs
