Asus RS720A-E11-RS24U [20/192] Storage device status led

Chapter 1: Product Introduction

1-10

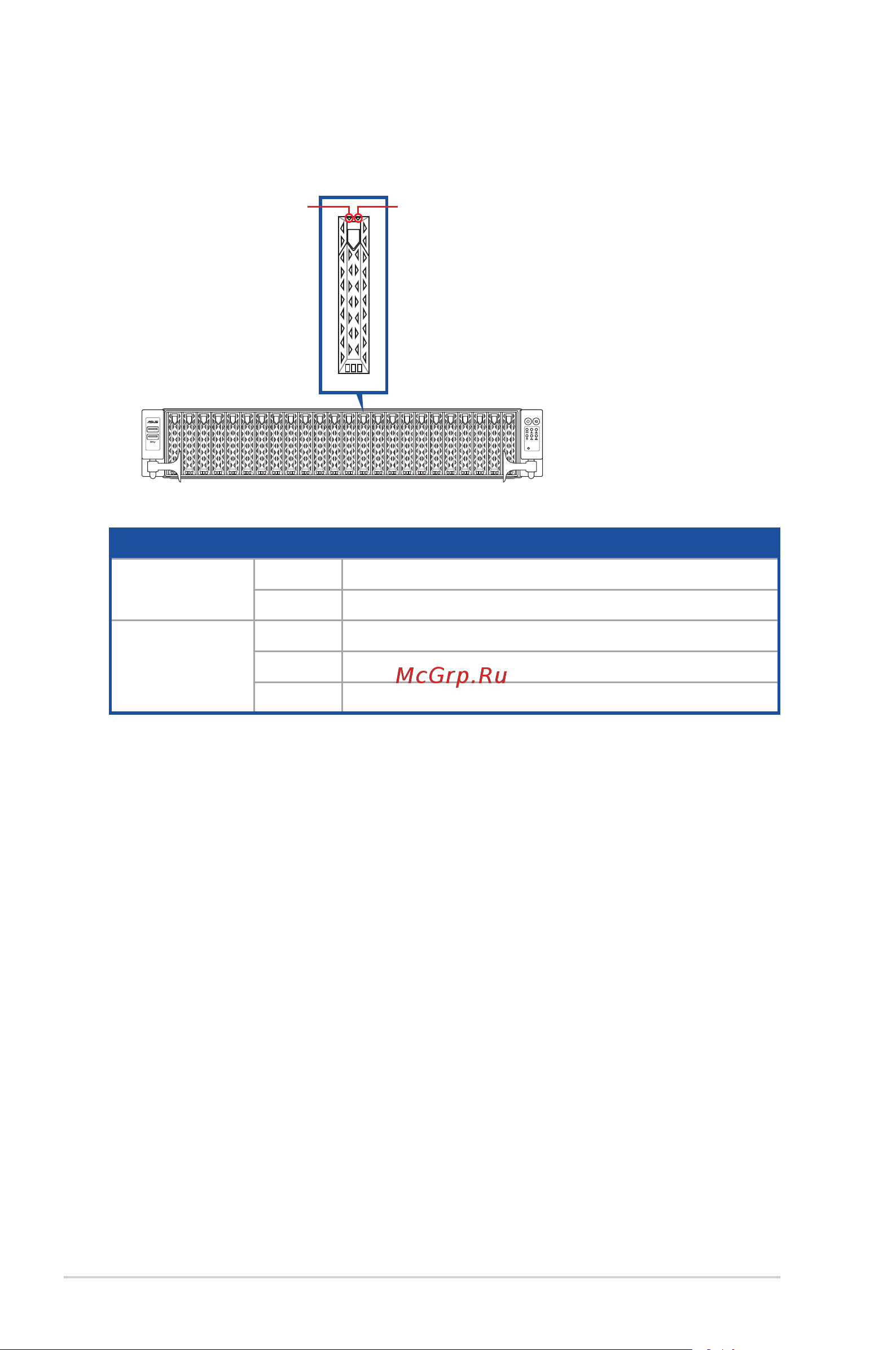

1.7.2 Storage device status LED

1 2

3 4

RESET

Storage Device LED Description

Status (RED)

ON Storage device has failed

Blinking RAID rebuilding or locating

Activity (GREEN)

ON Storage device power ON

Blinking Read/write data from/into the SATA/SAS storage device

OFF Storage device not found

Red LEDGreen LED
