Si04-807 Check
Service Diagnosis 117

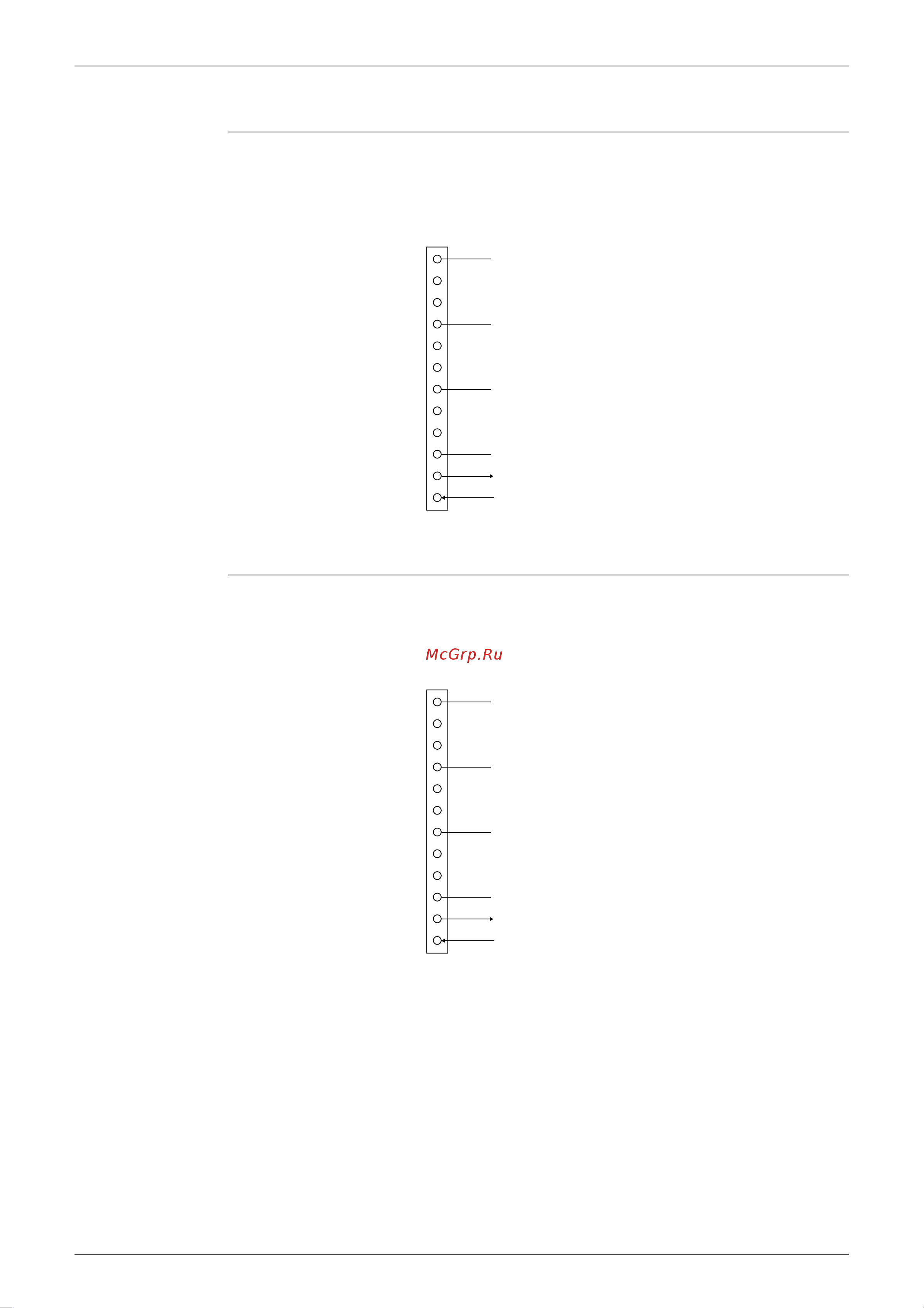

5.1.12 Turning Speed Pulse on the Indoor Unit PCB Check
Check No.19 (1) Check the connector for connection.
(2) Turn the power on and stop the operation.
(3) Check if the rotation pulse is input 4 times when the fan motor is manually rotated once
(between pins 1 and 3).
5.1.13 Fan Motor Wire/Short Circuit Check
Check No.20 (1) Check the connector for connection.
(2) Turn the power off.
(3) Check if each resistance at the phases U, V and W is between 10
Ω
and 20
Ω
(between pins
9 and 7, and between 7 and 5).
12
11
10
9
8
7
6
5
4
3
2
1
S200
Rotation pulse input (DC 0.15V)
Motor control voltage
P.0V
Phase W
Phase V
Phase U
Free pin
Free pin
Free pin
Free pin
Free pin
Free pin
(R8282)
12
11
10
9
8
7
6
5
4
3
2
1
S200
Rotation pulse input (DC 0.15V)
Motor control voltage
P.0V
Phase W
Phase V
Phase U
Free pin
Free pin
Free pin
Free pin
Free pin
Free pin
(R8282)
