Si04-807 Indoor Unit
Removal Procedure 137

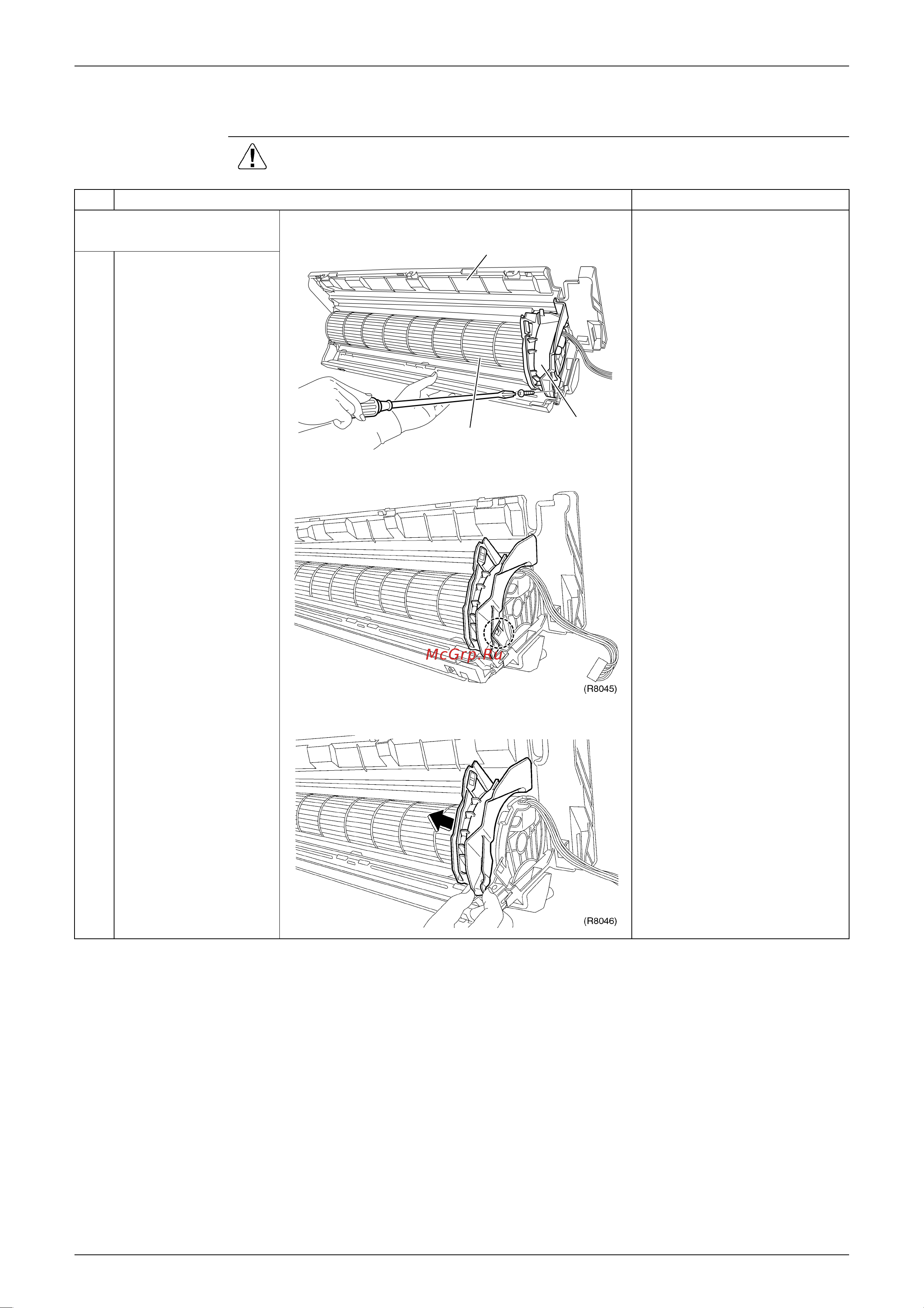

1.8 Removal of Fan Rotor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the right side
panel
Preparation
Remove the heat exchanger
according to the “Removal
of Heat Exchanger”.
1
Loosen the screw of the
side panel (right).
2
Undo the hook of the
side panel (right).
3
Remove the side panel
(right).
Bottom frame assembly
Right side panel
Crass flow fan
(R8044)
