Si04-807 Indoor Unit

Removal Procedure 133

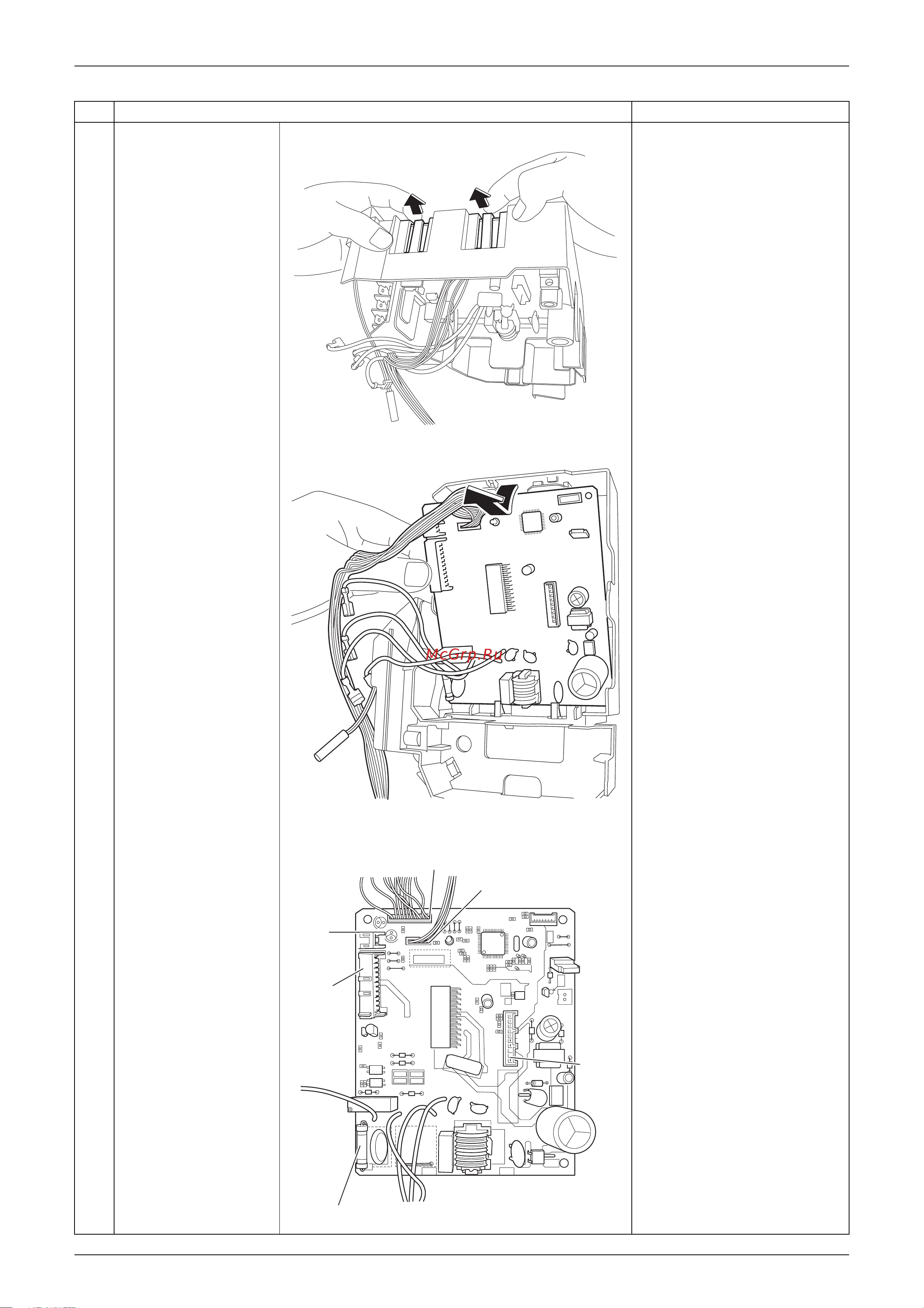

To remove the control

PCB, unfasten the 2

hooks at the upper part

from the rear side.

Lift up the upper part of

the control PCB, and

remove.

The figures show the

names of the control

PCB component parts.

[S6] To swing motor

[S26] To display PCB

[S32] To heat exchanger

thermistor

[S200]To fan motor

[S403]HA connector (for

optional accessory)

Step Procedure Points

(R8011)

(R8012)

S32

S200

S24

S26

(R8013)

[S26]

[S6]

[S403]

[S32]

[S200]

Thermal fuse 250V 3.15A
