Si04-807 Outdoor Unit

Removal Procedure 147

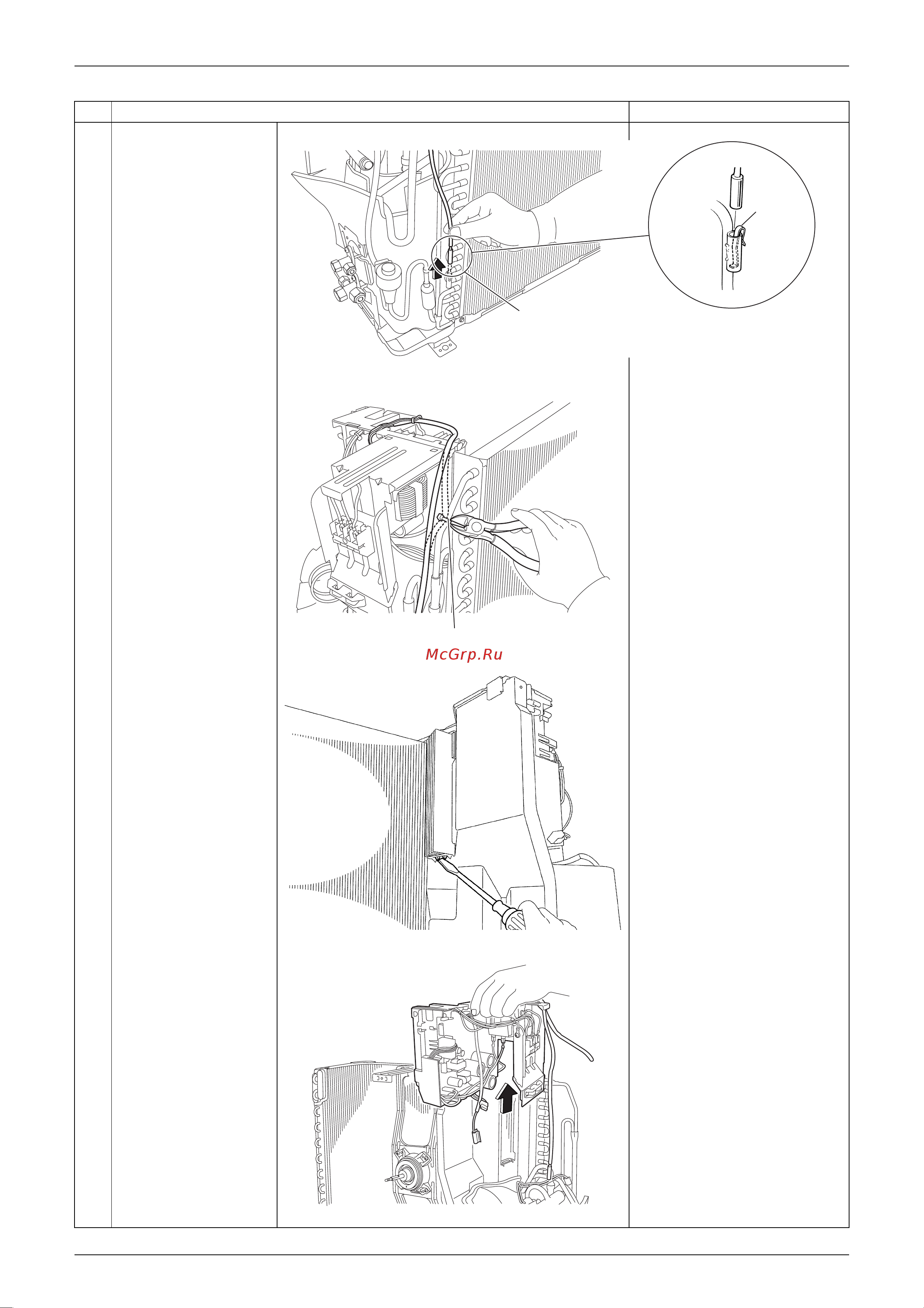

Release the heat

exchanger thermistor.



Pay attention so as not to

lose the clip.

Cut the clamp.

Undo the hook from the

partition plate.



The electrical box can be

removed by lifting itself

without a screw driver.

Lift and remove the

electrical box.

Step

Procedure Points

Heat exchanger thermistor

(R7394)

Clip

(R7395)

Clamp

(R7318)

(R7396)
