Si04-807 Outdoor Unit

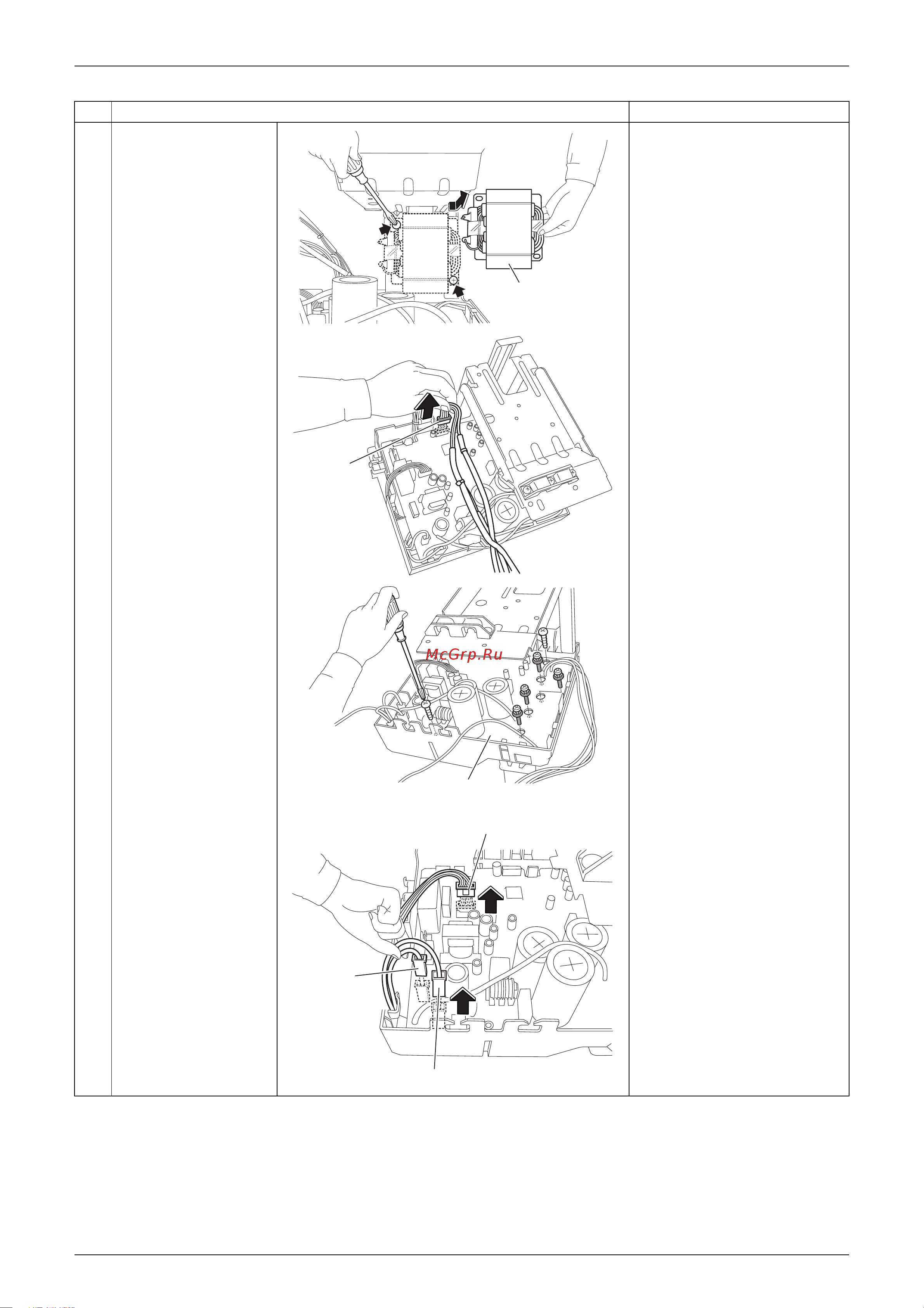

Removal Procedure 149

Loosen the 2 screws to

remove the reactor.

Disconnect the

connector for thermistor

(S90).

Loosen the 6 screws.

Disconnect the 3

connectors for filter

PCB (S10, HN3, HL3).

Step

Procedure Points

Reactor

(R7401)

[S90]

(R7402)

PCB

(R7403)

[S10]

[HN3]

[HL3]

(R7404)
