8 nEnglish

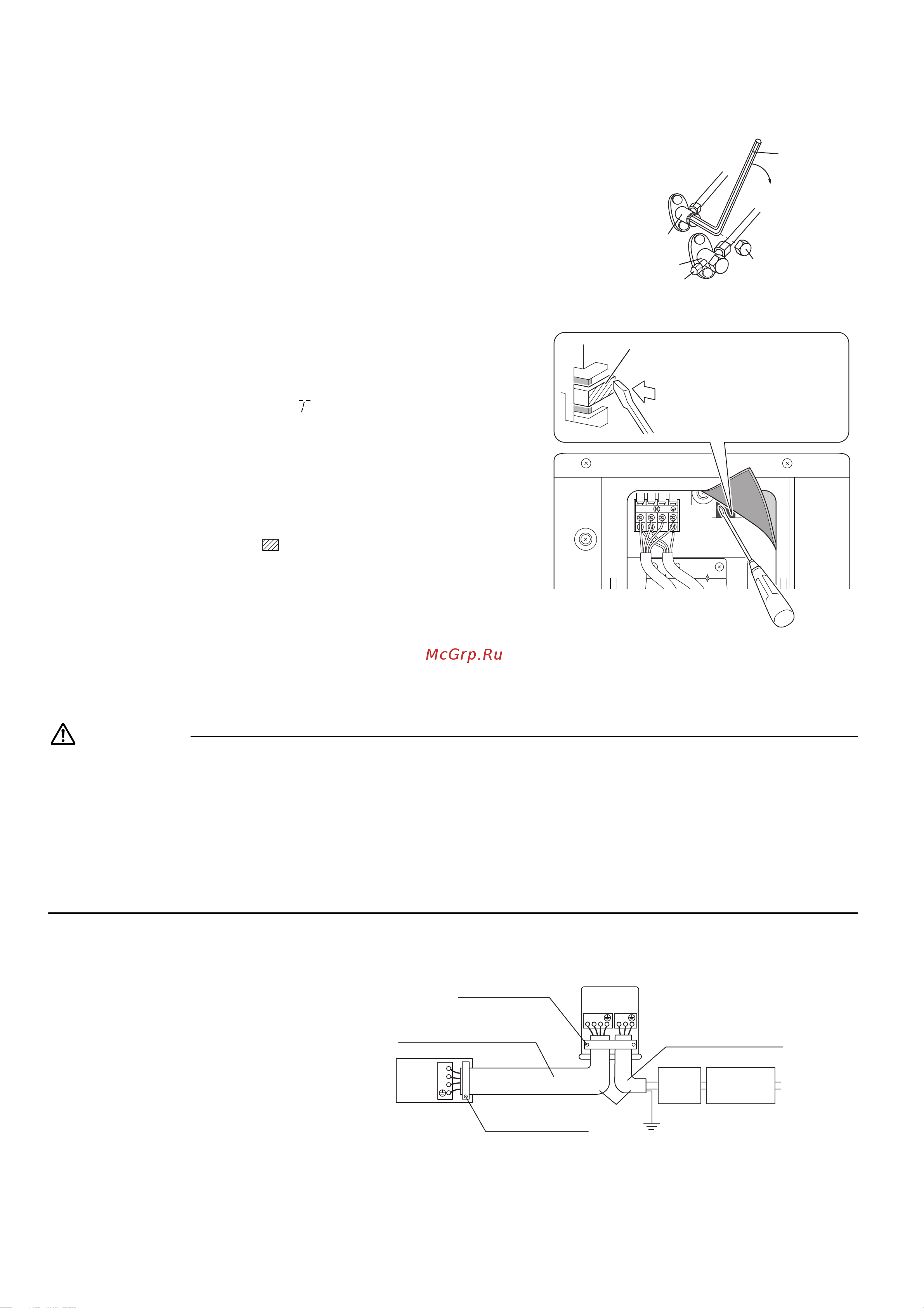

Pump Down Operation
In order to protect the environment, be sure to pump down when relocating or disposing of the unit.
1) Remove the valve cap from liquid stop valve and gas stop valve.
2) Carry out forced cooling operation.
3) After 5 to 10 minutes, close the liquid stop valve with a hexagonal wrench.
4)
After 2 to 3 minutes, close the gas stop valve and stop forced cooling operation.
Forced cooling operation
n Using the indoor unit ON/OFF switch
Press the indoor unit ON/OFF switch for at least 5 seconds. (Operation will start.)
• Forced cooling operation will stop automatically after around 15 minutes.
To stop the operation, press the indoor unit ON/OFF switch.
n Using the indoor unit’s remote controller
1) Press “MODE” button and select the cooling mode.
2) Press “ON/OFF” button to turn on the system.
3) Press both the “TEMP” button and “MODE” button at the same time.
4) Press “MODE” button twice. ( will be displayed and the unit will
enter forced cooling operation.)
• Forced cooling operation will stop automatically after around
30 minutes. To stop operation, press “ON/OFF” button.
n Using the outdoor unit forced cooling operation switch
Forced cooling operation can be performed when the outdoor unit forced
cooling operation switch is pressed within 3 minutes after power is
supplied.
Push on the area marked “ ” (SW1) with a screwdriver and the
operation will start.
• Forced cooling operation will stop automatically after approximately
15 minutes.
To stop the operation, press the switch (SW1).
Wiring
WARNING
• Do not use tapped wires, stranded wires, extension cords, or starburst connections, as they may cause overheating, electrical
shock, or fire.
• Do not use locally purchased electrical parts inside the product. (Do not branch the power for the drain pump, etc., from the
terminal block.) Doing so may cause electric shock or fire.
• Be sure to install an earth leak detector. (One that can handle higher harmonics.)
(This unit uses an inverter, which means that it must be used an earth leak detector capable handling harmonics in order to
prevent malfunctioning of the earth leak detector itself.)
• Use an all-pole disconnection type breaker with at least 3mm between the contact point gaps.
• Do not connect the power wire to the indoor unit. Doing so may cause electric shock or fire.
• Equipment complying with EN61000-3-12
(1)
• Do not turn ON the power supply until all work is completed.
1) Strip the insulation from the wire (20mm).
2) Connect the connection wires between the
indoor and outdoor units so that the terminal
numbers match. Tighten the terminal screws
securely. We recommend a flathead
screwdriver be used to tighten the screws.
*DVVWRSYDOYH
9DOYHFDS
+H[DJRQDOZUHQFK
&ORVH
/LTXLGVWRSYDOYH
6HUYLFHSRUW
1
2
3
Forced cooling operation switch (SW1)
Push
1
2
3
123
LN
Fuse
20 A
Earth leakage
circuit breaker
Earth
When wire length exceeds
10m, use 2.0mm diameter wires.
H05RN
Firmly fix the wires with
the terminal screws.
Outdoor unit
Indoor
unit
Power
supply
50Hz 220-240V
Firmly fix the wires with
the terminal screws.
Use 2.0mm diameter wires.
